Xtool X100 Pad2 Pro Professional OBD2 Car Diagnostic Tool

2 sold in last 8 hours!
XTY14606
4.0 kg
10000 In stock
$885.00
Xtool X100 Pad2 Pro Professional OBD2 Car Diagnostic Tool Our Xtool has a strong scientific analysis force and first-class IoT laboratory development. With more than 130 trained R&D teams, most of which are high-quality software and hardware specialized personnel and engineers with more than 10 years of research and advancement...
$885.00
customers are viewing this product!

Xtool X100 Pad2 Pro Professional OBD2 Car Diagnostic Tool

Our Xtool has a strong scientific analysis force and first-class IoT laboratory development. With more than 130 trained R&D teams, most of which are high-quality software and hardware specialized personnel and engineers with more than 10 years of research and advancement experience, with a rich range of vehicle protocol support, strong data analytics, and strong underlying processing power of cloud R and D, XTOOL has formed a strong block in the enterprise.

It not only presents customers with trained key programming, but also the most significant special functions for the workshop. X100 Pad Plus is a new model that does not need registrants to use. Please fill in the name and email address to animate it. And you don't need tokens. Supports full system diagnostics: display code data, freeze frame data, 5 digital codes, code reading and deleting, O2 sensor test results, intermittent monitoring systems, vehicle learning log, pending code, the bi-directional element in all electrical system data, such as ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, fuel system, light system, wiper operation, etc.

Features:

  • Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking, etc. resetting for BMW.
  • With full and strong database for the most important vehicle makes.
  • Support the lifespan percentage resetting of engine oil for Buick, Cadillac, etc.
  • Very suitable for locksmiths, car technicians, and personal use. Key programmer especially compatible with VW 4th and 5th IMMO

Specifications:

  • Certification: CE
  • Update: 2 Year Free Update Online
  • item: SK200
  • Tablet Memory: 1GB RAM , 16GB Flash
  • Display: 8.0 Inch IPS 5-Point Multi-Touch Screen With 1024X600P Resolution

XTOOL X-100 PAD2 Pro Special Functions Expert

How to use xtool pad2 to read pin code?



X100 PAD2 Pro Functions and Features:

Key Programming especially added with VW 4th & 5th IMMO
PIN Code Reading
OBDII diagnosis: 4 systems diagnosis, Read & Clear codes for Engine, Brakes, Central Electrics, Airbag System
Oil Reset/Engine oil light reset
Odometer Adjustment
Tire Pressure Warning Light Reset
Timing belt light reset (Manual Operation)
EPB Electrical Parking Brake Adaptation
TPS Throttle Body Adaptation
Steering Angle Calibration
Battery Reset
PDF
Hexadcimal editor(Win Hex)
Support the latest vehicles with CAN BUS and UDS protocol
Update Via WIFI at xtooltech.com (always equip your device with the latest software)
Language: English, French, Turkish, Indonesian, Thai, Portuguese

Note:
1. If you from Brazil or France could buy Portuguese and French version from local dealers directly
2. Not Support Indian Cars.
3. Free Update Online for 2 Year, after 2 Years if you want to update again, please pay for One Year Update Service for XTOOL 100 PAD2/PAD2 Pro
4. Click Here Xtool X100 PAD and X100 PAD2 Comparison Table

Specifications:


Operating System: Android 4.4.4
Memory: 1GB RAM, 16GB Flash
CPU Quad-Core, 1.6 GHz
Display 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port
Battery:  4000mAh, 7.4V
WIFI WIFI 2.4Ghz
Bluetooth 100 Meters
Power Voltage:  12V
Power Consumption: 29.6W
Operating Temperature: -20 to 50¡æ(-4 to 126¨H)
Humidity: <90%
Dimension: (L*W*H): 240*177*30mm

More details:

The layout of X-100 PAD 2
x100 PAD2 Layout
¢١¡USB Type C Port: Compatible with HDMI TV port
¢ڡ¡Power Button: Power on or off
¢ۡ¡DC Charging port: Battery charging
¢ܡ¡DB15 Port: Supports wired connection with car by the cable

¢١¡Earphone jacket
¢ڡ¡USB 2.0 Port: data synchronization with PC
¢ۡ¡Mini HDMI Port


X-100 PAD2 Exploded Diagram


Easy registration with X-100 PAD 2 connected to WIFI. Don’t bother to use a PC for registration.

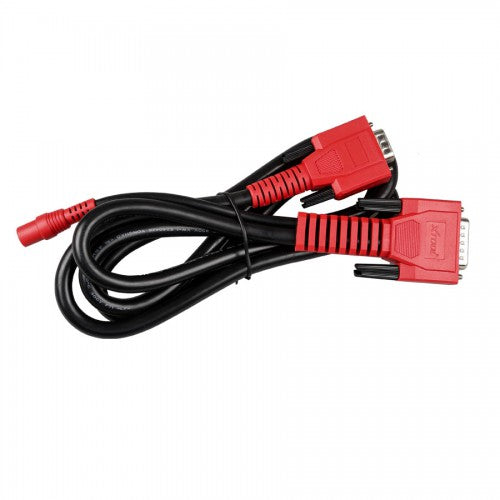

Connect to vehicle directly with cable
X100 PAD2 Connect to Car via Cable
Diagnosis interface for choosing vehicles’ model

X100 PAD2 Diagnosis interface for choosing vehicles¡¯ model

XTOOL X100 PAD2 Connect to the vehicle via EEPROM Adapter:


You can choose your area before you start


Each area will contain all the brands this device can do, here is the list:
America: Buick, Cadillac, Chevrolet, Dodge, GM, GMC, Hummer, Pontiac, Saturn, Ford
Asia: Acura, Honda, Hyundai, Infiniti, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki, Toyota
China: BYD, Great Wall Motor, Brilliance, JAC, Geely Cars, Lifan Cars, Chery
Europe: Audi, Benz, Citroen, Ford, Fiat, Jaguar, Lancia, Land Rover, Opel, Peugeot, Porsche, Renault, Romeo, Seat, Skoda, Smart, VW

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with a pop-up update reminder!

X100 PAD2 Software

Remote access, which is perfect for training, demonstration, and even remote diagnosis.


X100 PAD2 Remote Access

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars.
They will be really happy knowing what kinds of problems have been fixed for their cars.

X100 PAD2 PDF

Key Programming Features:


1. New keys programming
2. PIN Code reading with EEPROM
3. Hexadcimal editor(Win Hex)
2. Reads keys from immobilizer's memory
3. New immobilizer programming
4. Vehicle Identification Number programming
5.Reset ECM & reset immobilizer
6. New remote controller programming
7. With full and strong database for the most important vehicle makes

X100 PAD2 Software
X100 PAD2 Software

Oil Reset Functions Features:

Innovative one-click oil reset for VW, Audi, BMW, Mercedes Seat, Skoda, Volvo, etc.
Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid, vehicle checking, etc. resetting for BMW. And the supported BMW models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
Support Mercedes Benz new C Class, E Class models and Mercedes Benz VITO/VIANO/SPINTER.
Support the lifespan percentage resetting of engine oil for Buick, Cadillac, etc.
 Support Porsche Cayenne, Panamera till 2012
Support maintenance light reset for Volvo, Land Rover.

X100 PAD2 Software
X100 PAD2 Software
X100 PAD2 Software

Odometer Adjustment

X100 PAD2 Software


TPS Throttle Body Adaptation:

X100 PAD2 Software
X100 PAD2 Software

BMS Reset (Battery Reset):

X100 PAD2 Software

EPB Electrical Parking Brake Adaptation:

X100 PAD2 Software
X100 PAD2 Software

PDF:



Steering Angle Calibration:


X100 PAD2 Software
X100 PAD2 Software

Tire Pressure Warning Light Reset (Manual Operation)
X100 PAD2 Software


EEPROM Adapter Features ¡¡
1. PIN Code Reading
2. ECU Initializing
3. Chip Programming

X100 PAD2 Software

Four System Diagnosis:

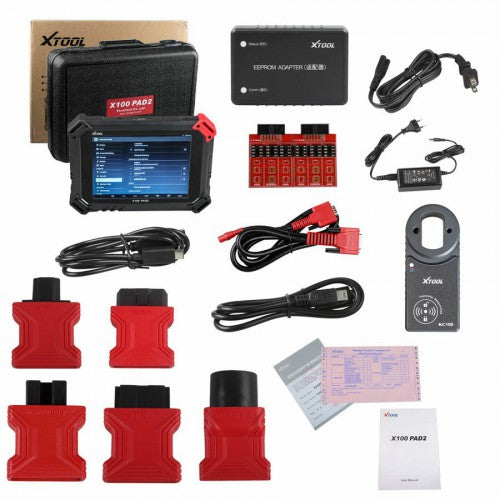

Package list:

1pc x X-100 PAD2 Pro
1pc x OBD II-16
1pc x HONDA-3
1pc x MAZDA-17R
1pc x KIA-20
1pc x HYUNDAI/KIA-10
1pc x DB15_Male To VGA_Male
1pc x USB_TYPE-C

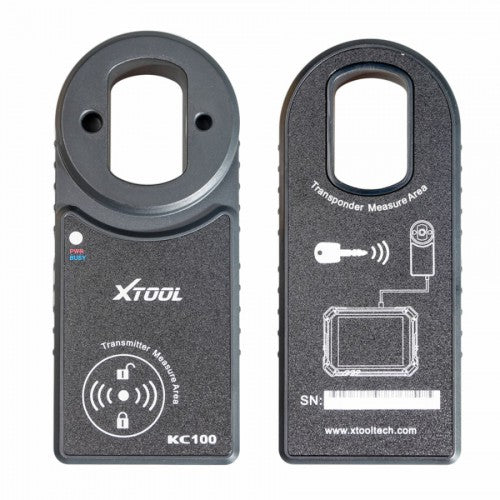

1pc x KC100
1pc x EEPROM adapter
1pc x USB_TYPE-C and Mini_USB

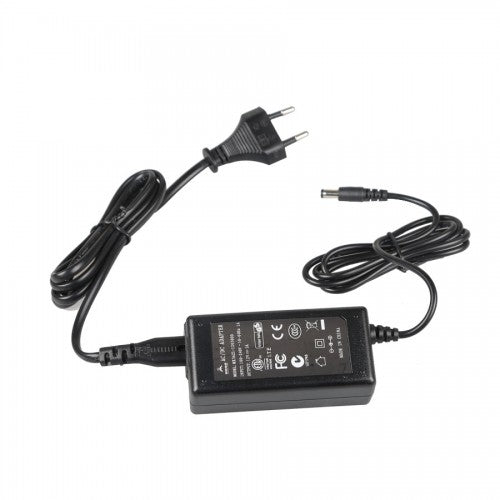

1pc x Charger for Tablet
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x Certificate of Quality
1pc x Packing List
