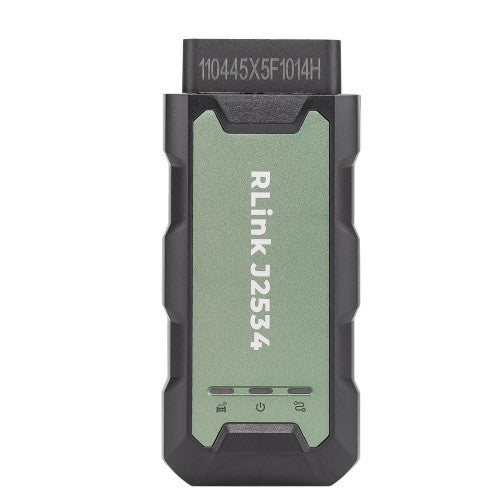

TOPDON Rlink J2534 Pass-Thru Programmer OEM Reprogramming and Diagnostic Tool

The TOPDON RLink J2534 device fully supports all J2534 protocols, ensuring compatibility with OEM reprogramming and diagnostic functions. It integrates advanced D-PDU, CAN-FD, and DoIP protocols, making it suitable for more modern vehicles. Keep your repair shop equipped with the latest innovations to maintain your competitive advantage.

The RLink J2534 OEM Diagnostic Interface solves the instability and driver issues shops face with OE software. Fully J2534/D-PDU compliant and supporting CAN-FD and DoIP, it provides a stable, affordable interface for modern vehicles. With wide OEM compatibility and smooth integration through the RLink Platform, it brings dependable, dealer-level diagnostics to your workflow. TOPDON J2534 offers extensive versatility with support for over 17 major automotive brands, including Chrysler, Ford, GM, Nissan, Toyota, Honda, Subaru, Land Rover/Jaguar, Volvo, Wuling, Volkswagen, Mercedes-Benz, and BMW, and so on, enjoy dealership-level functions at your fingertip.

TOPDON RLink J2534 Highlights:

Seamless Integration: A cutting-edge J2534 OEM VCI to easily pair with OE software for comprehensive diagnostic solutions.
All-in-One Functionality: Provides OEM diagnostics and reprogramming capabilities, such as full-system diagnostics, ECU programming, ECU coding for customization, reset functions and more, covering all OEM functions.
Wide Vehicle Compatibility: Supports an extensive range of brands including Volkswagen, Land Rover, Honda, Volvo, Toyota, GM, Wuling, Subaru, Chrysler, Nissan, Ford, Kia, Hyundai, Mitsubishi, Mazda
Lifetime Free Driver Updates
No more buying multiple devices
No more plugging/unplugging different tools

TOPDON J2534 Key Features:

• J2534 Pass-Thru Programmer
• All-in-One OEM Diagnostics and Reprogramming
• CAN FD/DoIP Protocols Supported
• One-click Installation of OEM Drivers
• RLink Platform for Seamless Integration
• Outstanding Performance with 10000+ Real Tests
• Professional Technical Support
• Stable Wired Connection
• Built-in OEM Operation Guide

J2534 Pass-Thru Programmer:

The RLink J2534 device fully supports all J2534 protocols, ensuring compatibility with OEM reprogramming and diagnostic functions. It integrates advanced D-PDU, CAN-FD, and DoIP protocols, making it suitable for more modern vehicles. Keep your repair shop equipped with the latest innovations to maintain your competitive advantage.

Protocols Supported: SAE-J2534-1 and SAE-J2534-2, SAE-J2610 SCI(Chrysler), ISO 14229 (UDS), ISO 15765, ISO22901 (ODX), ISO 9141, ISO 15765 (CAN), ISO 11898 (DWCAN), ISO 14230 (KWP2000), J1850 (VPW/PWM), J2411 (SWCAN), J2740 (GM ALDL), J2809 (HONDA DIAG-H), J2818 (KW81), J2819 (TP16/TP20), FORD UBP, BMW DS2, CAN-FD

TOPDON Rlink J2534 Features:


All-in-One OEM Diagnostics

Harness the power of OE software to elevate your business with comprehensive All-system diagnostics, detailed repair guides, ECU coding, reset services, cloud-based programming, and more. Whether managing intricate programming or routine maintenance, the RLink J2534 empowers your diagnostics capabilities, delivering OEM-level performance effortlessly. Please note: OE software is not included and requires a separate subscription.

Experts Stand by You
TOPDON's dedicated professional team offers comprehensive and prompt technical support. Whether you need help with installation, configuration, or troubleshooting, our expert guidance ensures quick issue resolution and minimizes downtime. With our support, you're never alone in providing top-notch vehicle repair services.


RLink Platform for Seamless Integration

Featuring the exclusive DMS (Driver Management System) available through TOPDON’s RLink Platform, you can download the latest vehicle drivers and stay up to date with uninterrupted access to cutting-edge technologies. With lifetime free updates, you’re always prepared to tackle any job and save more by avoiding frequent hardware replacements.

Effortless One-Click Driver Downloads

No complicated installation is required. This intuitive device allows you to download the latest drivers with a single click. It also includes a detailed OEM operation guide for added convenience, streamlining workflow and enhancing diagnostic efficiency.



Proven Quality for Unmatched Reliability

This programmer has been rigorously tested on over 10,000 real vehicles, demonstrating its robustness and dependability in overcoming any diagnostic obstacle. Combining exceptional performance and longevity, this tool is the most reliable choice for flawless operation in various situations.



Stable Wired Connection

Designed for peace of mind, this J2534 pass-thru programmer offers superior stability with a wired connection, ensuring high-speed data transfer and reduced latency. By eliminating the risks associated with wireless connections, it delivers dependable performance and faster, more accurate diagnostics.



Pocket-sized, Problem Solved

The RLink J2534 is compact and lightweight, easily fitting into your pocket or toolbox. Its durable construction can withstand the demands of complex repair conditions. Say goodbye to cumbersome equipment and cramped workspaces—wherever your work takes you, this tool is always ready to perform.



Windows Only Masterpiece

Experience unparalleled versatility with this J2534 reprogramming tool, which supports a range of Windows operating systems, including Windows 7 (64-bit), Windows 8 (64-bit), Windows 10 (64-bit) and Window 11(64-bit). For specific OEM requirements, please visit the OEM's official website.

Specifications:

Operating Voltage: 9 - 18 V
Storage Temperature: -20 ℃ - 70 ℃（-4 ℉ - 158 ℉)
Working Temperature: -10 ℃ - 50 ℃ (14 ℉ - 122 ℉)
Dimensions: 114.7 * 51 * 29 mm (4.51 * 2 * 1.14 inch)
Net Weight: 90 g (3.17 oz)
Models and Software Supported: Toyota: Techstream, GTS+, Honda: HDS/iHDS, Nissan: CONSULT-IIIplusR2R, Ford: ForScan, FDRS/FJDS, GM: GDS2/TLC, DPS, Tech2win, Chrysler: wiTech2, Subaru: SSM4, SGMW: VDS2, VOLVO: VIDA2014, VIDA, JLR: SDD, VW/AUDI: ODIS-S, ODIS-E, Benz: Xentry Passthru, BMW: ISTA+Passthru.

How To Register TOPDON Rlink J2534 Device and Download Driver?

1. Download and install the Rlink Platform software from TOPDON'S official
2. Register and log in to your account

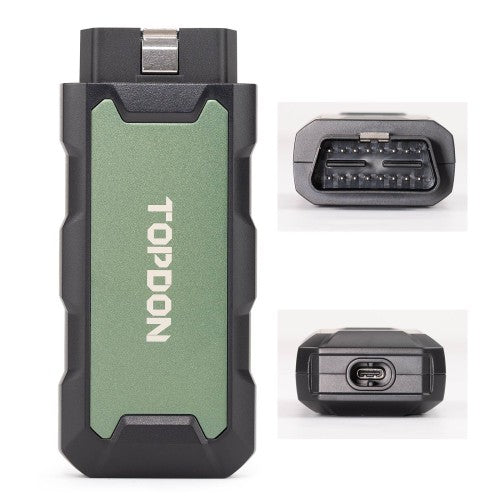

3. Plug the RLink J2534 into the OBD port, then connect it to a PC with the USB cable
4. Bind and activate the RLink J2534
5. Download the driver for the OEM diagnostic software

How to Connect RLink J2534 Device and Start Diagnosis?

1. Connect the RLink J2534 to the vehicle's DLC
2. Verify the connection, open the OE software and select "RLink" as the picture show
3. Turn the ignition to "ON" and begain your diagnosis

TOPDON RLink J2534 FAQs:

Q: Why does it prompt that the email address is already registered?
A: 1. Check if this account is already registered on another TOPDON device. If you have already registered, just log in to the corresponding account. If you forgot your account, provide the SN and purchase voucher for the product to the after-sales service.
   2. If no other devices are bound, please contact TOPDON technical support.

Q: Why does it prompt that the device is bound to another account?
A: 1. Please choose the correct account to log in. (Note: One device can only be bound to one account)
    2. If you forget the account bound to the device, please provide SN to TOPDON technical support.

Q: Why does it prompt an error when logging in to the RLink Platform?
A: 1. Check the network status.
    2.Check whether there is any software update.

Q: Why does it prompt that the device is not connected and cannot be bound?
A: 1. Check whether the account logged in to the RLink Platform is consistent with the account bound to the RLink J2534.
    2. Check whether the vehicle or power supply is connected. (When binding, the vehicle or power supply must be connected. Otherwise, the Bind and Activate interface will not be displayed.)

Q: The device is connected to the vehicle properly, but the RLink Platform prompts that the device is not connected. How to solve it?
A: 1. It is recommended to restart the RLink Platform software.
    2.Check whether the driver is occupied by other similar products.

Q: The devices are connected properly, but the OEM software still cannot recognize the VIN code. How to solve it?
A: 1. Check whether the ignition switch is on.
    2. Check whether the software driver is downloaded or the driver is selected correctly. (if there is another driver, uninstall it and try again.)
    3. Check whether the RLink diagnostic VCI box is selected in the OEM software.
    4. Check whether there is any software update for the RLink Platform.
    5. If the above faults are eliminated, it is recommended to restart the OEM software (Connection bug sometimes may occur in the OEM software.)

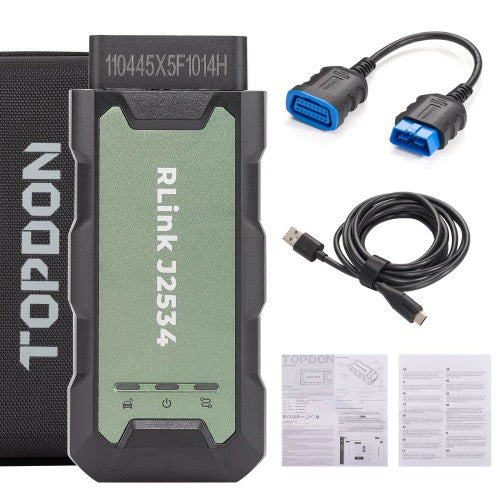

Package list:



1pc x TOPDON Rlink J2534 Pass-Thru Programmer
1pc x OBD Extension Cable
1pc x Type-C cable
1pc x User Manual
1pc x Storage Bag
