Xtool X-100 C for iOS and Android Auto Key Programmer

Xtool X-100 C for iOS and Android Auto Key

Our Xtool X-100 C is a complete on-board key programmer device and pin code reader explained for Ford, Mazda, Peugeot, and Citroen Xtool X-100 C for iOS and Android Auto Key Programmer 2 in 1 auto brand programmer and pin system samples for Ford, Mazda, Peugeot, and Citroen, Can Work with iOS and Android System by Bluetooth Connection, more comfortable to show. X100 Pad Plus is a new model that does not need registration to use. Please fill in the name and email address to initiate it. And you don't need tokens.

The 7 inches wired diagnostic touch screen tablet, updated x100 pad functioning system. It not only grants customers trained key programming, but also the most meaningful special celebrations for the workshop. Supports full system diagnostics: display code data, freeze frame data, 5 digital codes, code reading and erasing, O2 sensor test effects, discontinuous monitoring systems, vehicle knowledge log, pending code, a bi-directional component in all electrical usage data, such as ECM, TCM, ABS, SRS, BCM, IMM, BMS, TPMS, SAS, fuel system, light system, wiper usage, etc.

Features:

• Vehicle Compatibility: X-100 C works with four brand cars, they are Ford, Mazda,
• Bluetooth auto-reconnection: Once the Bluetooth is paired, you don’t need to input the code to pair with your phone anymore.
• X100C reads PIN CODE via dongle and does key programming via OBD2 socket with your cell phone.

Specifications:

• Item Type: Auto Key Programmer
• Hardware Version: Xtool X100 C
• Software Version: Xtool X100 C
• Model Name: Xtool X100 C
• External Testing Certification: CE
• Material Type: Xtool X100 C
• Special Features: OBD

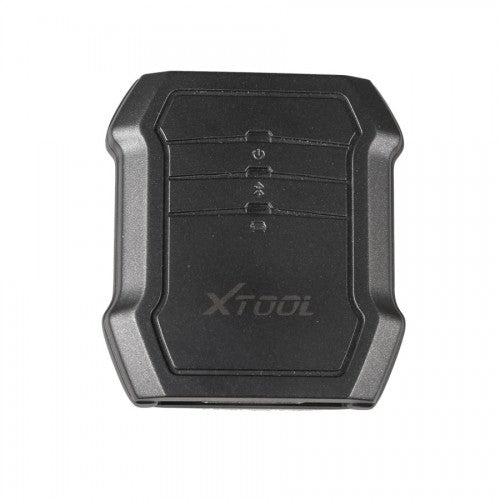

The layout of X100C:

¢Ù Power Indicator: It turns green when power is on.
¢Ú Bluetooth Indicator: It turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
¢Û Vehicle Indicator: When X100C is connected with the vehicle successfully, it turns green.
¢Ü DB15 connector:  Connect the vehicle via test cable.


Xtool X100 C Features:
Vehicle Compatibility: X-100 C works with four brand cars, they are Ford, Mazda, Peugeot, Citroen, and DS
Bluetooth auto-reconnection: Once the Bluetooth is paired, you don’t need to input the code to pair with your phone anymore.
                                                      The device will reconnect with your phone automatically.
Connection: Connection via Bluetooth (Android and IOS)
Free update: Download the latest XtoolC App with new features from Google Play or Apple Store.

X100C reads PIN CODE via dongle and does key programming via OBD2 socket with your cell phone.

Language: English, more language will be added.


Here is part of the X100C pin code reading function list, more models will be added one by one:

Support both iOS and Android



Recommended APP: X-100 C (search and download it from Apple store and GooglePlay Store)


Screenshot of Application (Android)



Activation: Please activate X100C before you use it to program keys. Input the serial number and press “Activate”.



Immobilizer: Enter the software and choose your vehicle type, and then go on programming.




Settings: By selecting Setting, users can set the language, unit, and other system-related options:
- Language: Select the language. Please tick the required option from the multi-language options on the right.


- Bluetooth: Enter the Bluetooth setting and pair the phone Bluetooth with X100C -xxxxx Bluetooth


- PDF: input and store user’s information to be printed in the PDF report.
- About: Users can read the software version and serial number here.

Report: It provides data flow during vehicle key programming.
Replay: It replays the data flow during vehicle key programming.

Screenshot of Application (iOS)


  PS:  so far the language is not available to change.

If this picture shows up, it means you have to install the language package first.


Activation: Please activate X100C before you use it to program keys. Input the serial number and press “Activate”.

Immobilizer:
Enter "Immobilizer" to choose the brand firstly.


  Choose the regional market.


Choose model.

     Choose year.

- Settings: Enter the "Settings"  you can set unit and other system-related options.

- Bluetooth: You have to connect your Bluetooth before you start. Here are steps
Step 1: Open your iPhone’s setting ->Bluetooth ->choose the one same as your device



Step 2: Check your setting in the app to see if it is connected successfully.

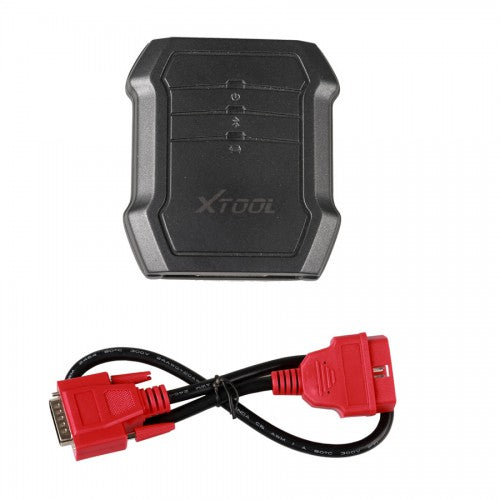

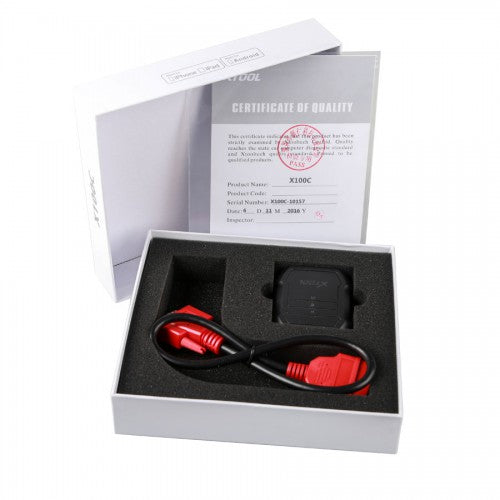

Package list:

1pc x   X-100 C

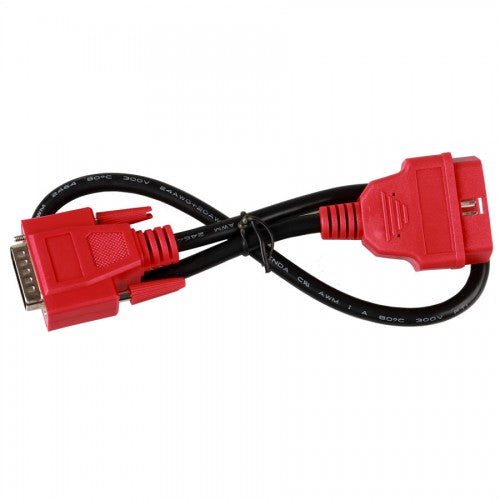

1pc x   OBD II  cable
