XTOOL EZ500 HD Heavy Duty Diagnosis

2 sold in last 8 hours!
XTYSH70
8.5 kg
10000 In stock
$1,790.00
XTOOL EZ500 HD Heavy Duty Diagnosis Our HD Heavy Duty Diagnosis requests information from the control module or ECU commands to perform a specific function to test its working status, to locate system faults easily and precisely, without using the controls of the vehicle, thus saving diagnostic time. Like opening...
$1,790.00
customers are viewing this product!

XTOOL EZ500 HD Heavy Duty Diagnosis

Our HD Heavy Duty Diagnosis requests information from the control module or ECU commands to perform a specific function to test its working status, to locate system faults easily and precisely, without using the controls of the vehicle, thus saving diagnostic time. Like opening and closing windows or doors, turning lights on and off, etc.
The Diagnostic Scanner allows you to access and scan all available modules and systems in your vehicle such as ECM, TCM, ABS, SRS, BCM, IMMO, BMS, TPMS, SAS, fuel system, light system, wiper system, etc. It has diagnostic functions of all systems, reading and erasing error codes, reading ECU information, live data, and activation tests.



Specifications:

  • Mark: XTOOL
  • Screen size: 7 inches
  • Power supply: Runs on batteries

Top Reasons to Buy XTOOL EZ500 HD:

Easy registration with EZ500 HD connected to WIFI
One-click software update via WIFI
Remote access
Diagnosis reports in PDF file
Record and playback live data
8.0 inch multi-touch screen
On-board battery
Extensive vehicle coverage for most US, Asian and European vehicle makes

Language supported: English only

Layout of EZ500 HD

Top View of EZ500 HD Tablet

XTOOL EZ500 HD Heavy Duty Diagnosis Display 1

¢Ù DC Charging Interface: Battery charge, DC 12V.
¢Ú DB15 Interface: Directly connect with truck to establish wire connection.
¢Û USB Type C Interface: Compatible with HDMI TV; Transfer audio and video simultaneously
¢Ü Power Button

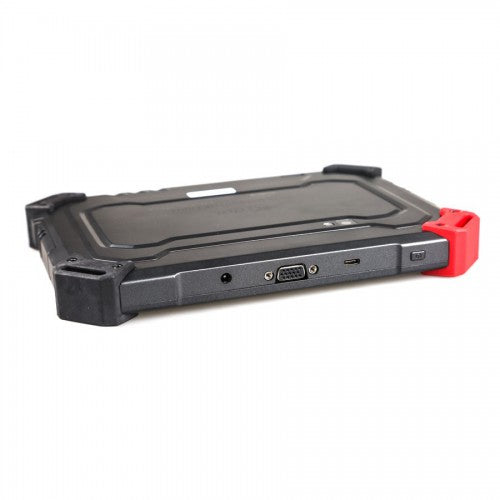

Side View of EZ500 HD Tablet

XTOOL EZ500 HD Heavy Duty Diagnosis Display 2

¢١¡Headphone Jack
¢ڡ¡TF Card Slot
¢ۡ¡Mini HDMI Port

Front View of EZ500 HD Tablet

XTOOL EZ500 HD Heavy Duty Diagnosis Display 3

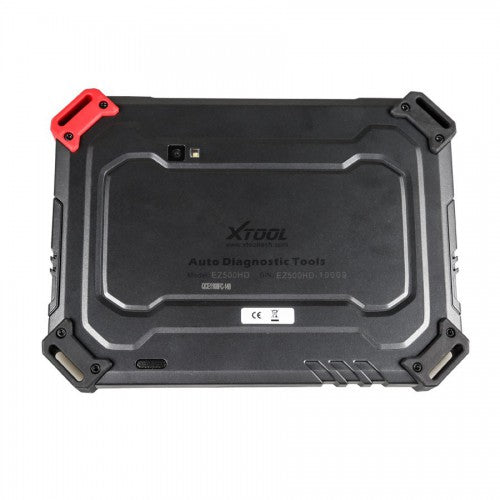

Back View of EZ500 HD Tablet

XTOOL EZ500 HD Heavy Duty Diagnosis Display 4

EZ500 HD Exploded Diagram

XTOOL EZ500 HD Heavy Duty Diagnosis Display 5

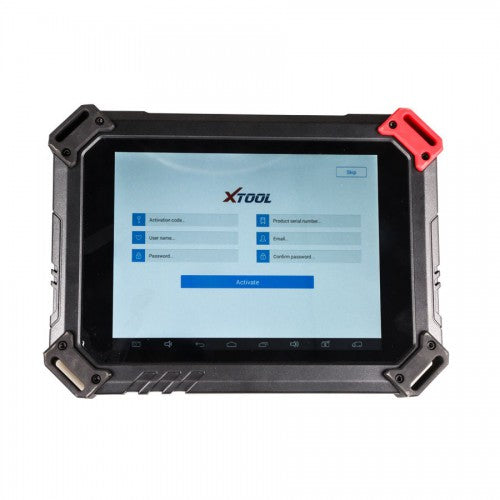

Easy registration with EZ500 HD connected to WIFI. Don’t bother to use PC for registration
.
XTOOL EZ500 HD Heavy Duty Diagnosis Display 6

Connect to the vehicle directly with cable

XTOOL EZ500 HD Heavy Duty Diagnosis Display 7

¢Ù EZ500 HD Mainframe
¢Ú Main Test Cable
¢Û OBD2 16pin Connector
¢Ü OBD 6+9 Pin Connector or other connectors
¢Ý Vehicle

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

XTOOL EZ500 HD Heavy Duty Diagnosis Display 8

Remote access, which is perfect for training, demonstration and even remote diagnosis.

XTOOL EZ500 HD Heavy Duty Diagnosis Display 9

Diagnosis reports in PDF file. Print out the diagnosis report and show it to vehicle owners when they come and fetch their vehicles. They will be really happy knowing what kinds of problems have been fixed for their vehicles.

XTOOL EZ500 HD Heavy Duty Diagnosis Display 11
XTOOL EZ500 HD Heavy Duty Diagnosis Display 12

Extensive vehicle coverage for most US, Asian and European vehicle makes

DIESEL:
 VOLVO, Allison, Bendix, Mercedes-Benz, CAT, DAF, ERF, Foton, Fuso, Hino, Hyundai, International, Isuzu, IVECO, Kenworth, MACK, MAN, RENAULT, SCANIA, Nissan UD, WABCO, etc

It can also diagnose trucks via ENGINE: Cummins, Detroit Diesel, MaxxForce, etc

It can also diagnose trucks via ELECTRONIC: Cummins and more…

Full System Diagnosis: Engine, ABS, ACM, CDS, COM, SRS, etc.

XTOOL EZ500 HD Heavy Duty Diagnosis Display 16

Basic Function: read fault codes, clear fault codes, live data, actuation, active test

XTOOL EZ500 HD Heavy Duty Diagnosis Display 17
XTOOL EZ500 HD Heavy Duty Diagnosis Display 18

Accurate Live Data in Both Wave and Dashboard Form

XTOOL EZ500 HD Heavy Duty Diagnosis Display 19
XTOOL EZ500 HD Heavy Duty Diagnosis Display 20

Special Function:
Service reset, DPF & ADBlue reset, injector coding, cylinder cutoff, fuel pump calibration, ERG learning, learned value reset, maximum vehicle speed setting, limited hand throttle, etc.
XTOOL EZ500 HD Heavy Duty Diagnosis Display 21

XTOOL EZ500 HD Heavy Duty Diagnosis Display 22

XTOOL EZ500 HD Heavy Duty Diagnosis Display 23

Specifications:


Operating System: Android 4.4.4
Memory: 1GB RAM,16GB Flash
CPU: Quad Core, 1.6GHz
Display: 8.0 Inch IPS 10-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, DC5.5, TF Card Port
Battery: 4000mAh, 7.4V
Wi-Fi: WIFI 2.4Ghz
Power Voltage: 12V
Power Consumption: 29.6W
Operating Temperature: -20 to 50¡æ(-4 to 126¨H)
Humidity: <90%
Dimension:  (L*W*H): 240*177*30mm

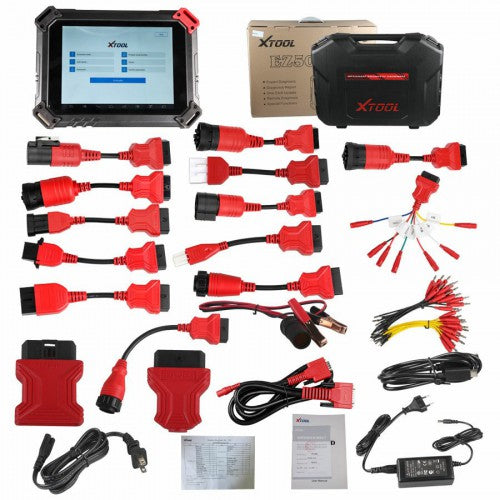

Package including:

1pc x EZ500 HD Tablet
1pc x Charger for Tablet
1pc x Charger Cable US
1pc x Charger Cable EU
1pc x OBD II-16
1pc x SELFTEST
1pc x OBD-R16
1pc x ISUZU-3
1pc x ISUZU-20
1pc x DENSO-12
1pc x IVECO-30
1pc x IVECO-30-1
1pc x CUMMINS-9
1pc x YUCHAI-4
1pc x CAT-9
1pc x CUMMINS-6
1pc x VOLVO-8
1pc x BENZ-14

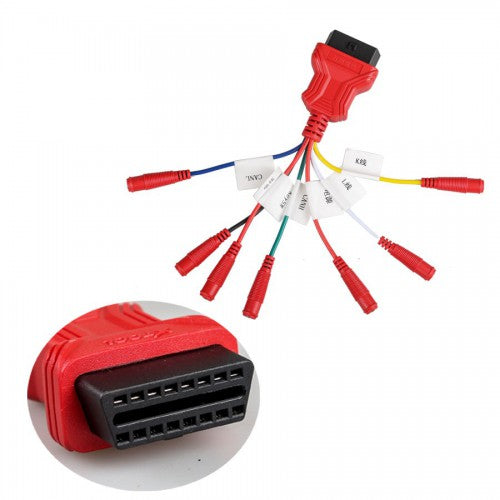

1pc x Universal Cable
1pc x Battery Cable
1pc x Cigar Lighter Cable
1pc x DB15 Main Cable
1pc x USB TYPE-C Cable

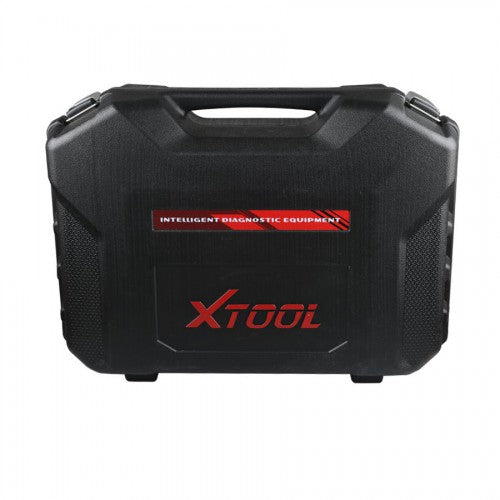

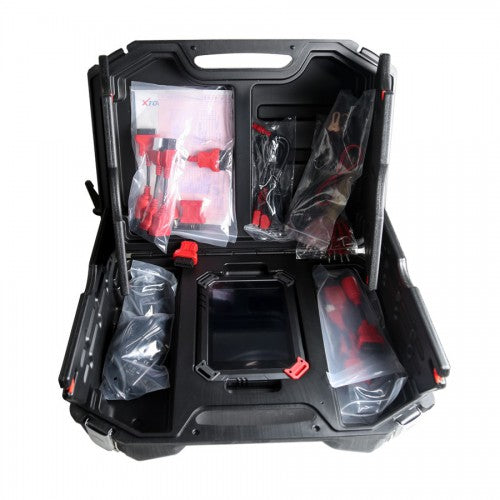

1pc x Tool Case
1pc x Carton
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
