XTOOL EZ500 Full-System Diagnosis for Gasoline Vehicles with Special Function Same Function With XTool PS80

2 sold in last 8 hours!
XTYSP273
8.0 kg
10000 In stock
$795.00
XTOOL EZ500 Full-System Diagnosis for Gasoline Vehicles  Free Update Online for 2 Years. XTOOL EZ500 Features: *Easy registration when EZ500 is connected to WIFI *One-click software update via WIFI *Remote access *Diagnosis reports in PDF file *Record and playback live data *8.0 inch multi-touch screen *On-board battery *Extensive vehicle coverage for...
$795.00
customers are viewing this product!
XTOOL EZ500 Full-System Diagnosis for Gasoline Vehicles

Free Update Online for 2 Years.

XTOOL EZ500 Features:


*Easy registration when EZ500 is connected to WIFI
*One-click software update via WIFI
*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
*8.0 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes

Language supported: English only

Xtool EZ500 Layout

XTOOL EZ500 Full-System Diagnosis Display 1

¢١¡DC Charging port: Battery charging
¢ڡ¡DB15 Interface: Supports wired connection with car by the cable
¢ۡ¡USB Type C Interface: Compatible with HDMI TV port; Transfer audio and video simultaneously
¢ܡ¡Power Button: Power on or power off

XTOOL EZ500 Full-System Diagnosis Display 2

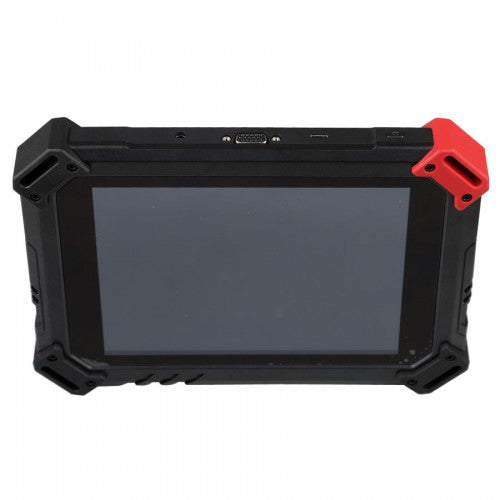

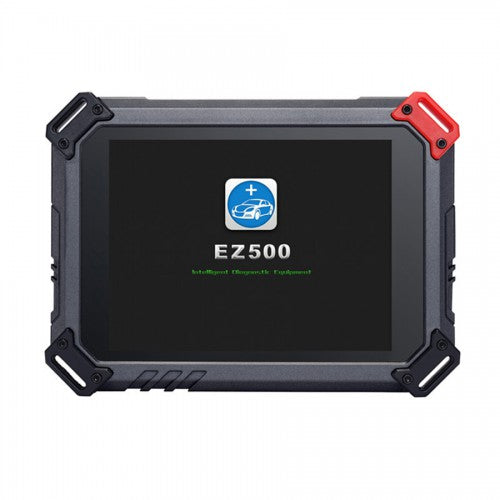

Xtool EZ500 Tablet Front View

XTOOL EZ500 Full-System Diagnosis Display 3

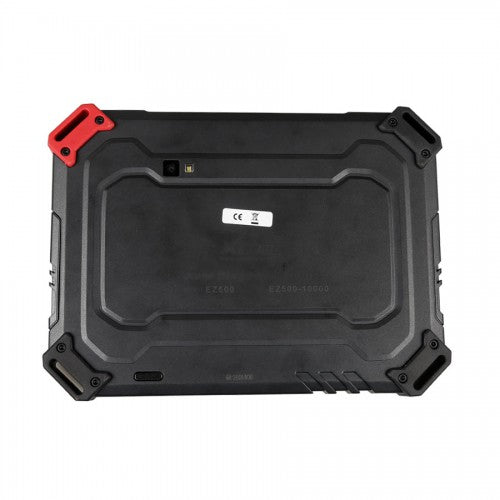

Xtool EZ500 Tablet Back View

XTOOL EZ500 Full-System Diagnosis Display 4

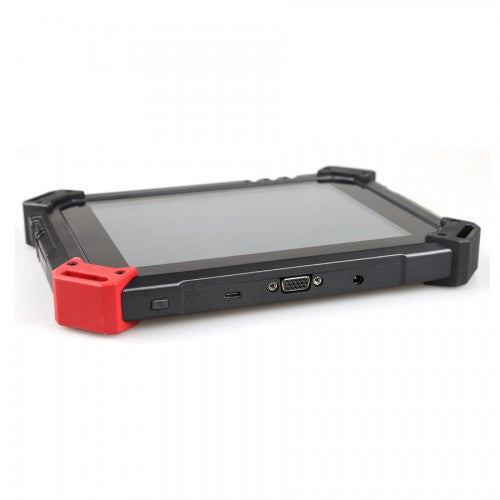

Xtool EZ500 Tablet Side View

XTOOL EZ500 Full-System Diagnosis Display 5

EZ500 Exploded Diagram

XTOOL EZ500 Full-System Diagnosis Display 6

Easy registration when EZ500 is connected via Wifi, no need connected to PC.

XTOOL EZ500 Full-System Diagnosis Display 7

Connect to the vehicle directly with cable

XTOOL EZ500 Full-System Diagnosis Display 8

¢١¡EZ500 Mainframe
¢ڡ¡Main Test Cable
¢ۡ¡OBD2 16pin Connector
¢ܡ¡Vehicle

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

XTOOL EZ500 Full-System Diagnosis Display 9

Remote access, which is perfect for training, demonstration and even remote diagnosis.

XTOOL EZ500 Full-System Diagnosis Display 10

XTOOL EZ500 Full-System Diagnosis Display 11

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.

XTOOL EZ500 Full-System Diagnosis Display 12

XTOOL EZ500 Full-System Diagnosis Display 13

Extensive vehicle coverage for most US, Asian and European vehicle makes
American:
GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn

XTOOL EZ500 Full-System Diagnosis Display 14

Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV

XTOOL EZ500 Full-System Diagnosis Display 15

Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…

XTOOL EZ500 Full-System Diagnosis Display 16

Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

XTOOL EZ500 Full-System Diagnosis Display 17

Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer,
Body (ECM), Chassis……

XTOOL EZ500 Full-System Diagnosis Display 18

XTOOL EZ500 Full-System Diagnosis Display 19

Basic functions: read fault codes, clear fault codes, live data, actuation

XTOOL EZ500 Full-System Diagnosis Display 20

XTOOL EZ500 Full-System Diagnosis Display 21

Accurate live data in both Wave and Dashboard form

XTOOL EZ500 Full-System Diagnosis Display 22

XTOOL EZ500 Full-System Diagnosis Display 23

Special functions: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..

XTOOL EZ500 Full-System Diagnosis Display 24

XTOOL EZ500 Full-System Diagnosis Display 25

Specification:

Operating System: Android 4.4.4
Memory: 1GB RAM,16GB Flash
CPU Quad Core, 1.6 GHz
Display 8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors: Gravity Sensor, Light Sensor
Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port
Battery:  4000mAh, 7.4V
WIFI WIFI 2.4Ghz
Bluetooth 100 Meters
Power Voltage:  12V
Power Consumption: 29.6W
Operating Temperature:  -20 to 50¡æ(-4 to 126¨H)
Humidity: <90%
Dimension:  (L*W*H): 240*177*30mm

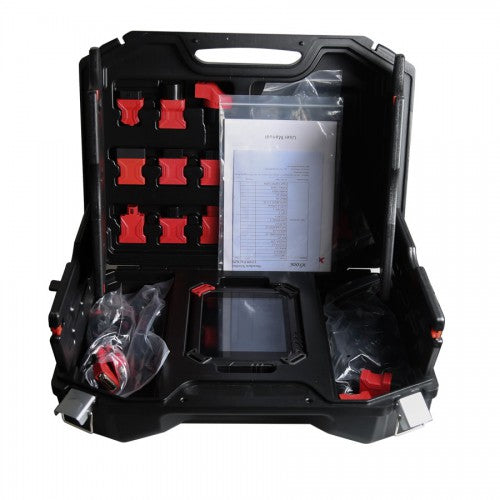

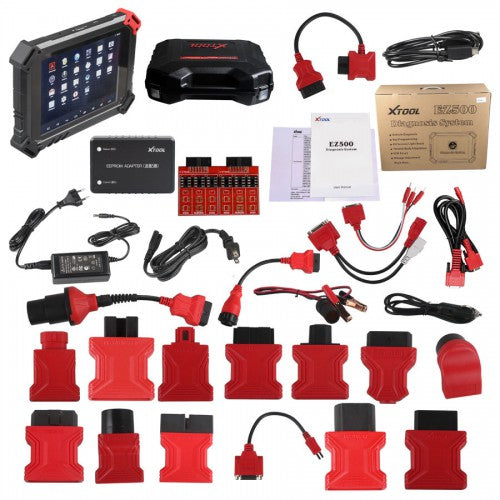

Package list:

1pc x EZ500 Tablet
1pc x Charger for Tablet?
1pc x OBD II-16
1pc x HONDA-3
1pc x BMW-20
1pc x TOYOTA-17
1pc x MAZDA-17R
1pc x KIA-20
1pc x NISSAN-14
1pc x GM/DAEWOO-12
1pc x SELFTEST
1pc x UNIVERSAL-3
1pc x SUZUKI-3
1pc x FIAT-3
1pc x CITROEN-2
1pc x AUDI-4
1pc x MITSUBISHI-12+16
1pc x BENZ-38
1pc x BENZ-14
1pc x Main Cable
1pc x battery Cable
1pc x Cigar Lighter Cable
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x Micro USB Cable

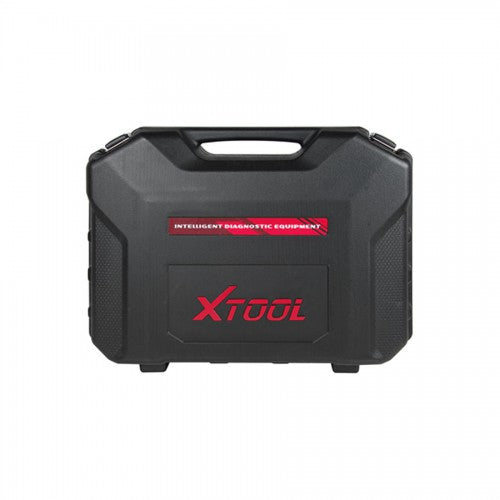

1pc x Case
1pc x Stand for EZ500
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual

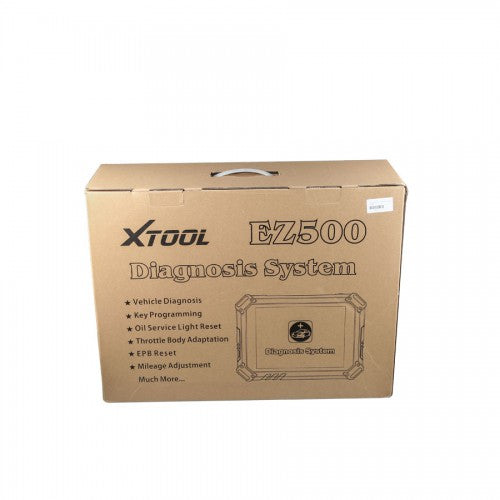

1pc x Carton
