Xtool EZ300 Four System Diagnosis Tool

2 sold in last 8 hours!
XTYSP266
2.0 kg
10000 In stock
$320.00
Our Easy registration with EZ300 connected to WIFI. Wireless diagnosis via Bluetooth. One-click software update via WIFI. Extensive vehicle coverage for most US, Asian and European vehicle makers. XTOOL EZ300 highlights: *Remote access *Diagnosis reports in PDF file *Record and playback live data * 7-inch multi-touch screen *Onboard batteryLanguages: English, Polish, Malay  Easy registration with EZ300 connected to WIFI. Don’t bother to use a PC for registration. Wireless diagnosis via ultrafast Bluetooth technology One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder! Remote access, which is perfect for training, demonstration, and even remote diagnosis. Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars. Extensive vehicle coverage for most US, Asian and European vehicles makes American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn   Europe: Volvo, Skoda, Landrover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, Maybach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Bugatti, Abarth, VW_CV Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more… Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance, and more... Four System Diagnosis: Engine, ABS, SRS, Transmission, and TPMS Basic Function: read fault codes, clear fault codes, live data Accurate live data in both Wave and Dashboard form The layout of EZ300: 1.SD CardPort: up to 32GB extension SD card  2.HDMIPort: Compatible with HDMI  3. Micro USB: Battery charge or data synchronization with PC. 4.AudiPort: For headphone 5. Power Button: Power on or off Front View of EZ300 Tablet Back View of EZ300 Tablet Side View of EZ300 Tablet EZ300 Exploded Diagram The layout...
$320.00
customers are viewing this product!

Our Easy registration with EZ300 connected to WIFI. Wireless diagnosis via Bluetooth. One-click software update via WIFI. Extensive vehicle coverage for most US, Asian and European vehicle makers.

XTOOL EZ300 highlights:

*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
* 7-inch multi-touch screen
*Onboard battery
Languages: English, Polish, Malay

 Easy registration with EZ300 connected to WIFI. Don’t bother to use a PC for registration.


Wireless diagnosis via ultrafast Bluetooth technology


One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

Remote access, which is perfect for training, demonstration, and even remote diagnosis.

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.

Extensive vehicle coverage for most US, Asian and European vehicles makes American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn


Europe: Volvo, Skoda, Landrover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, Maybach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Bugatti, Abarth, VW_CV
Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…
Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance, and more...

Four System Diagnosis: Engine, ABS, SRS, Transmission, and TPMS



Basic Function: read fault codes, clear fault codes, live data



Accurate live data in both Wave and Dashboard form



The layout of EZ300:


1.SD CardPort: up to 32GB extension SD card
2.HDMIPort: Compatible with HDMI
3. Micro USB: Battery charge or data synchronization with PC.
4.AudiPort: For headphone
5. Power Button: Power on or off

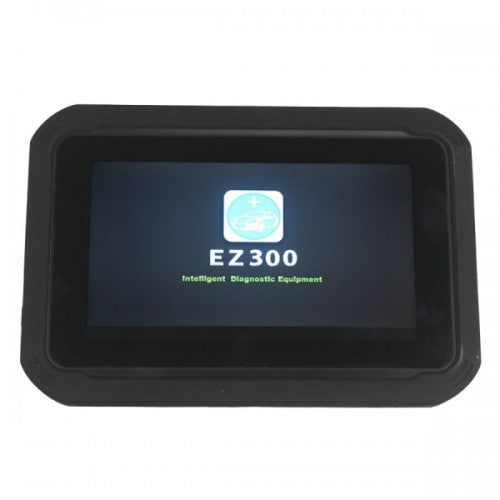

Front View of EZ300 Tablet

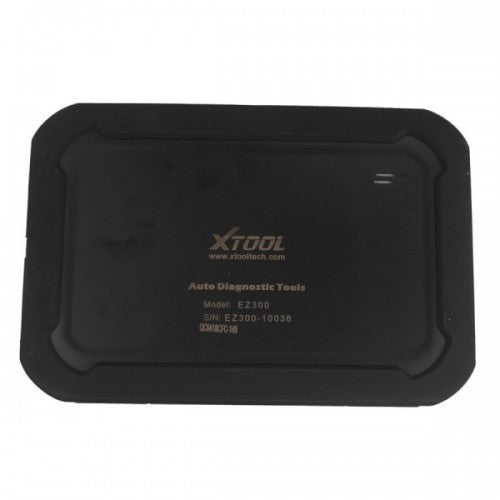

Back View of EZ300 Tablet

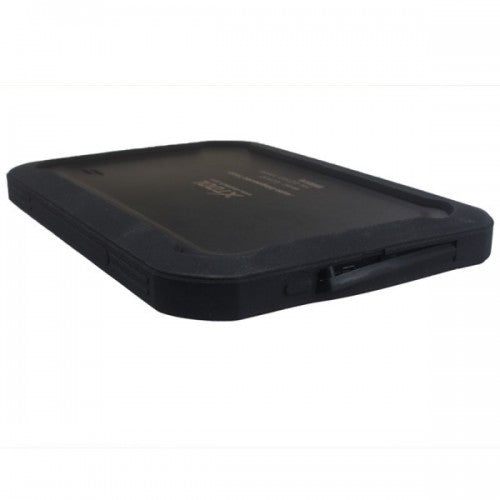

Side View of EZ300 Tablet


EZ300 Exploded Diagram

The layout of EZ300 VCI Box

1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When the VCI box is connected with the vehicle successfully, it turns green.



Specifications:

  • Operating System:              Android 4.4.4
  • Memory:                                1GB RAM,16GB Flash
  • CPU                                       Quad-Core, 1.3 GHz
  • Display                                  7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
  • Sensors:                               Gravity Sensor, Light Sensor
  • Input/Output:                         Microphone, Dual Speakers, 3.5 mm headset jack, mini HDMI port, 2.0USBPort, TF Card Port
  • Battery:                                   2400mAh, 3.7V
  • WIFI                                         WIFI 2.4Ghz
  • Bluetooth                               100 Meters
  • Power Voltage:                      3.7V
  • Power Consumption:           4W
  • Operating Temperature:     -20 to 50¡æ(-4 to 126¨H)
  • Humidity:                               <90%
  • Dimension:                           (L*W*H): 208*140*15.5mm

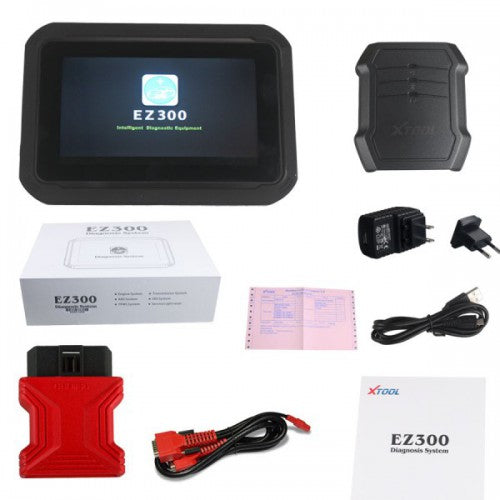

Package Including:

1pcs X OBD II-16
1pcs X Main Cable
1pcs X EZ300 Tablet
1pcs X VCI Box

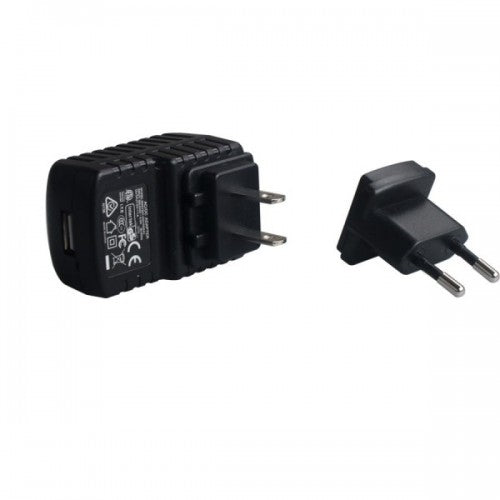

1pcs X Charger for Tablet
1pcs X US Power Adapter
1pcs X EU  Power Adapter
1pcs X MicroUSB Cable
1pcs X Certificate of Quality
1pcs X Packing List
1pcs X User Manual
1pcs X Carton box

Difference among Xtool X100 PAD EZ500 EZ400 EZ300

Product name xtool Pad Xtool EZ500 Xtool EZ400 Xtool EZ300
Full-System Diagnosis   yes yes Engine, ABS, SRS, AT
Key Programming yes yes
Oil Reset/Engine Oil Light Reset yes yes yes yes
EPB Electrical Parking Brake Adaptation yes yes yes
TPS Throttle Body Adaptation yes yes yes
Odometer Adjustment yes yes
EPS Electric Power Steering Calibration yes yes
Gear Learning yes yes
ABS Bleeding yes yes
ECU Reset yes yes
Tire Pressure Warning Light Reset yes yes
Battery Reset yes yes
