XHORSE XKB501EN Volkswagen B5 Style Special X001 Remote Key

Our XHORSE VVDI2 786 B5 Type Universal Remote Key 3 Buttons come with a quality guarantee for all who have passed quality control before delivery. Compatible with all the VVDI tools like VVDI2, Mini Key Tool, Key Tool Max, etc.

Each key can collect 25 points. By using Xhorse Remote Key, you can accumulate member points which can be used to exchange VVDI 2 part special functions and accessories

When Do You Need to Make a Car Key:

* Car key lost
* Unexpected key or vehicle malfunction
* Only one key and car key no power, a spare key is required


For Wired Remote Key, The Key Making Process as Follows:

Step 1: Remotes Generation
Work with VVDI Key Tool, the circuit board must be connected to the VVDI key tool by a wire to match data.
Then install the battery. (Note: Battery is not included, you need to additional purchase.)
Assembly is complete after installing the battery.

Step 2: Chip Generation
Note: The chip is not included and you need to purchase extra.
Transponder editing and cloning

Step 3: Cutting Key Blade
Note: The blade is not included and you need to purchase extra.

With XHORSE Key Cutting Machine, you can get the type of key you need.
After completing the above steps, the key is successfully made, and the three functions of unlocking, remote control, and starting the car can be realized.
Download the Xhorse App and register for a member, you can accumulate member points which can be used to exchange VVDI2 part special functions and accessories.

Package Including:


5pcs x Volkswagen B5 type remote key  3 buttons board

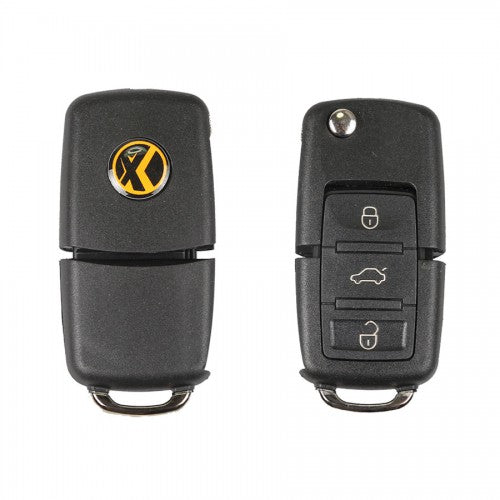

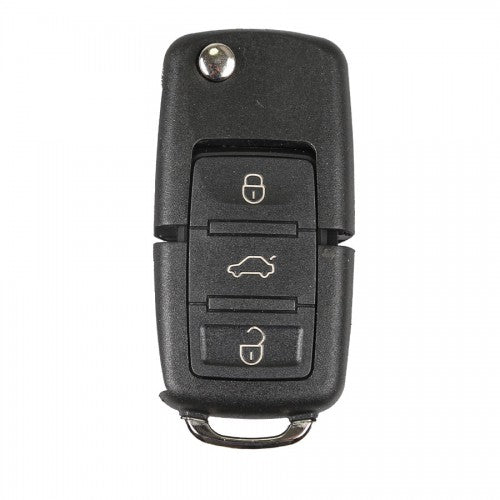

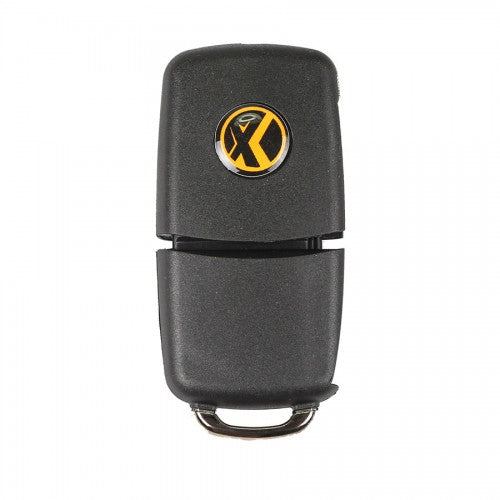

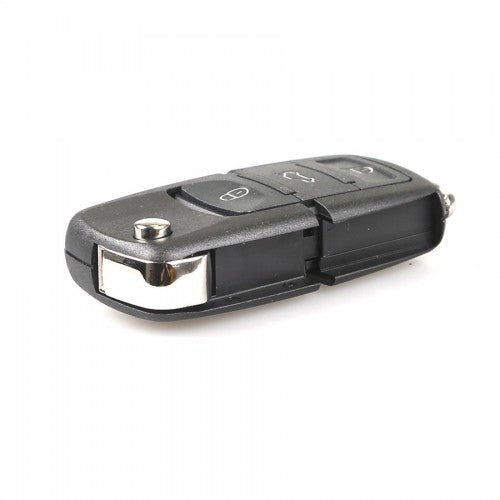

XHORSE XKB501EN Volkswagen B5 Wire Remote Key Display:



Xhorse Wire, Wireless, Super Remote, Smart Remote Key Comparison:

Wired remote: XK series, Packed in red, With socket, No chip, 25 bonus points gained
Wireless remote: XN series, Packed in blue, NXP chip, 40 bonus points gained
Super remote: XE series, Packed in purple, Super chip XT 27, 40 bonus points gained
Smart remote: XS series, Packed in orange, Smart chip keyless go, 60 bonus points gained


Function	Wire Remote	Wireless Remote	Super Remote	Smart Remote

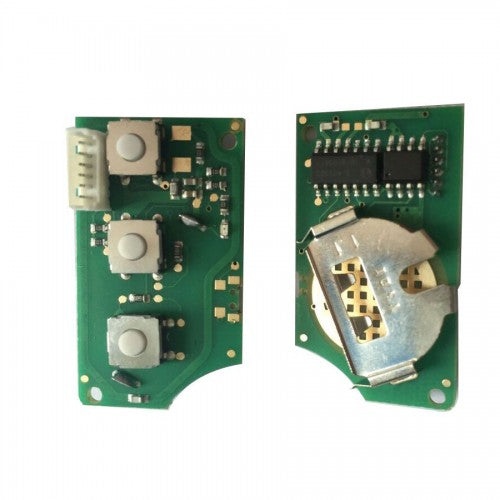

PCB Picture
PN Code	XK Series	XN Series	XE Series	XS Series
Packaging Color	Red Packaging	Blue Packaging	Purple Packaging	Tangerine Packaging

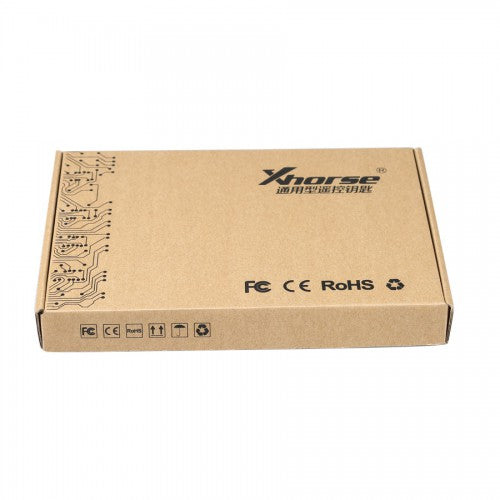

Packaging Appearance
Bonus Points	25 Points	40 Points	40 Points	60 Points
Usage Count	Reuse	Reuse	Reuse	Reuse
Remote Control Function	√	√	√	√
Remote Generation	Socket Connection	Wireless Generation(Need to install battery first)	Wireless Generation(Need to install battery first)	Wireless Generation(Need to install battery first)
Boot Chip	×	√(NXP Chip)	√(Super Chip)	√(Intelligent）
Transponder	No	Copy Part + Generate Chip	Copy Part + Generate Chip	Keyless Go
Remote Generation Device	VVDI MINI, VVDI Max, VVDI Key Tool, VVDI2	VVDI MINI, VVDI Max, VVDI Key Tool, VVDI2	VVDI MINI, VVDI Max, VVDI Key Tool, VVDI2	VVDI MINI, VVDI Max, VVDI Key Tool, VVDI2
Remote Matching	Manual/Remote Matching Equipment	Manual/Remote Matching Equipment	Manual/Remote Matching Equipment	Manual/Remote Matching Equipment
Applicable Situation	Only Remote Matching	Chip Copy Generation,  The Remote Control Also Needs to Be Matched and Can Replace the Wire Remote	Super Chip Copy Generation. Supports the Generation of Special Chips, Which Need to Be Matched to the Car, and the Remote Control Also Needs to be Matched. Can Replace Wired / Wireless Remote	Car for Smart Remote
Note: VVDI Mini OBD Tool can support the remote control matching for those horse remotes,you canalso use other OBD equipment from other manufacturers.
MQB Smart Remote is suitable for all brands (generic but looks MQB) MQB smart remote for VW (need to use general-purpose smart remote to generate MQB smart remote and then match)
