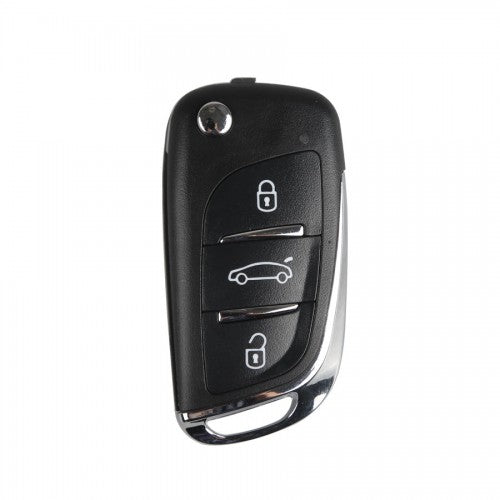

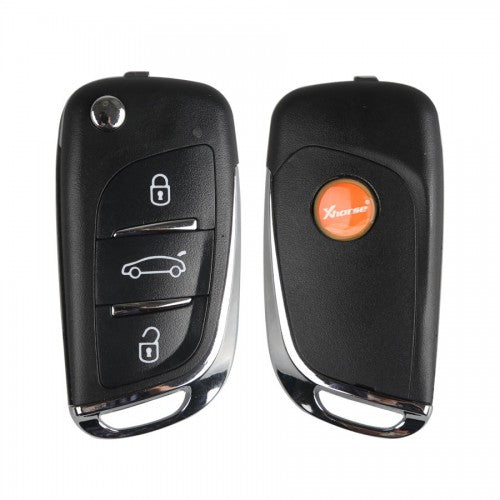

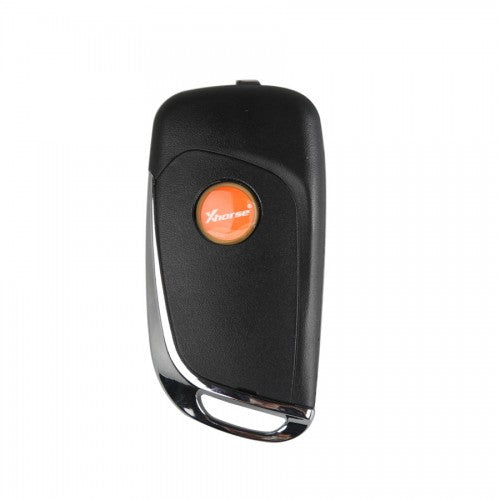

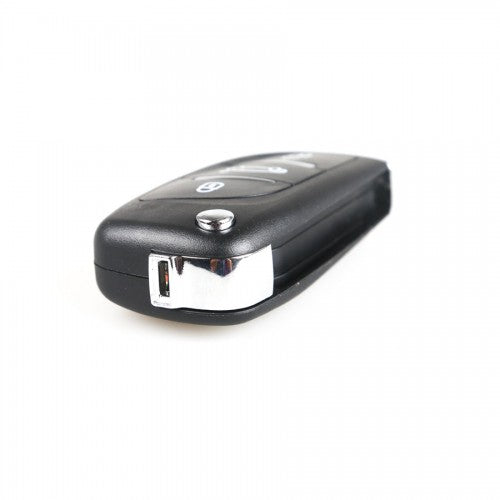

Xhorse XEDS01EN VVDI Super Remote Key

Our Xhorse Wireless key is with the NXP chip (which is like the hit series chips, like the chip ID46 and ID47).Xhorse wire key is without NXP chip. Xhorse Super remote, it is with the vvdi super chip inside, so it can support more types.

Super remote and xhorse wire/wireless remote key, their PCB, and the remote control part are the same. In brief, xhorse super remote covers all functions of wire and wireless keys.

Features:

PN: XEDS01EN
Style: DS
Color: Black
Button: 3 Buttons
Weight: 0.6kg
Transponer: XT27 Super Chip
Battery:    No
Battery Model: CR2032

Specifications:

• Manufacturer Part Number: N / A

• Material Type: Good
• Country / Region of Automobile Manufacturer: N / A
• Interchange Part Number: for VVDI Key Tool

The VVDI Super Remote supports the following chip types:

7935 (33 40 41 42 43 44)
7936 (46)
7938 (47)
7939 (49)
7937 (46)
7946 (46)
7947 (47)
4D (60 63 70 80 83 72G 67 69)
4E (64)
4C (Corolla EX)
8C (Haima)
8A (supports copy Toyota H chip/Hyundai 8A chip)
48 (VW/Honda)
8E (Audi/Honda)
11/12/13



VVDI super remote generation:

step 1: remote generation

step 2: transponder generation

step 3: programming or cloning transponder

Note: If the procedures are out of sequence like if you do transponder generation cloning transponder – remote generation, then the transponder data will be erased.

Package List:

5 pcs * Xhorse Super Remote Key

Xhorse Wire, Wireless, Super Remote, Smart Remote Key Comparison:

Wired remote: XK series, Packed in red, With socket, No chip, 25 bonus points gained
Wireless remote: XN series, Packed in blue, NXP chip, 40 bonus points gained
Super remote: XE series, Packed in purple, Super chip XT 27, 40 bonus points gained
Smart remote: XS series, Packed in orange, Smart chip keyless go, 60 bonus points gained


Function	Wire Remote	Wireless Remote	Super Remote	Smart Remote
PCB Picture
PN Code	XK Series	XN Series	XE Series	XS Series
Packaging Color	Red Packaging	Blue Packaging	Purple Packaging	Tangerine Packaging
Packaging Appearance
Bonus Points	25 Points	40 Points	40 Points	60 Points
Usage Count	Reuse	Reuse	Reuse	Reuse
Remote Control Function	√	√	√	√
Remote Generation	Socket Connection	Wireless Generation(Need to install battery first)	Wireless Generation(Need to install battery first)	Wireless Generation(Need to install battery first)
Boot Chip	×	√(NXP Chip)	√(Super Chip)	√(Intelligent）
Transponder	No	Copy Part + Generate Chip	Copy Part + Generate Chip	Keyless Go
Remote Generation Device	VVDI MINI, VVDI Max, VVDI Key Tool, VVDI2	VVDI MINI, VVDI Max, VVDI Key Tool, VVDI2	VVDI MINI, VVDI Max, VVDI Key Tool, VVDI2	VVDI MINI, VVDI Max, VVDI Key Tool, VVDI2
Remote Matching	Manual/Remote Matching Equipment	Manual/Remote Matching Equipment	Manual/Remote Matching Equipment	Manual/Remote Matching Equipment
Applicable Situation	Only Remote Matching	Chip Copy Generation,  The Remote Control Also Needs to Be Matched and Can Replace the Wire Remote	Super Chip Copy Generation. Supports the Generation of Special Chips, Which Need to Be Matched to the Car, and the Remote Control Also Needs to be Matched. Can Replace Wired / Wireless Remote	Car for Smart Remote
Note: VVDI Mini OBD Tool can support the remote control matching for those xhorse remotes,you canalso use other OBD equipment from other manufacturers.
MQB Smart Remote is suitable for all brands (generic but looks MQB) MQB smart remote for vw (need to use general-purpose smart remote to generate MQB smart remote and then match)
