Xhorse VVDI MB BGA Tool
Fix the bug that the BE key only transmitted the RF signal for one time, after the update, the RF signal can be transmitted two times when press and release the key. Modify the rolling algorithm, fix some errors of BE key.
Support resetting the key frequency between 315MHZ and 433.92 in the way of the VVDI MB tool or the PCB SMD resistor. Adopt car-grade quartz crystal, improve infrared communication stability.
Specifications:
-
Place of Origin: Guangdong China (Mainland)
- Item Type: Auto Key Programmer
- Language Support: English
- Quality: High
Xhorse VVDI MB BGA TOOL Function Introduction:
1. Read Write Key:
identification key, IR read & write BE key
read V51.V57 version's key password by NEC adapter
read activate blank BGA(OCF4) key
key current KASH(repair)renew
write into the used NEC key
write smart key etc.
2. Password Calculation:
And read and calculate all(FBS3) can protocol EIS password
support BGA key, NEC key, v51,v57 version password calculation
support all key lost W164, W216, W166, W209, W211, W212(old), W201, W207, etc.
3. ESL Tool:
OBD(Kline)read data, renew ESL, replace ESL( no need to renew EIS), check ESL damage, repair W204 ESL.
4. Read/Write Gateway
support OBD repair KM: W204, W207, W211, W251, W154, W212, W221, W216, W166, W172, W232, W205, etc.
Support reading & writing gateway EEPROM and Flash: W211, W164, W204, W207, W212, W221, W216, etc.
5. EIS tools
Read & write EIS by OBD or IR, OBD auto-detect, access to W164, W209, W211 without gateway
read the old Motorola EIS (K-Line)'s password
renew EIS, replace EIS, enable key, disable key, personalize W204 ESL
test EIS status, working key, etc.
6. Prepare key File
Online generate V11, V41, V51 version's key file
support Motorola EIS EEPROM file, with high efficiency, 100% successfully generate
7.Program ECU/Gearbox/ISM
Support renew ECU, gearbox, and ISM, write VIN, personalized, etc.
Notice:
1. If you buy CONDOR XC-002(SL355), your VVDI MB can have 1 free token every day.
2. If you have bought a Condor key cutting machine (SL252 CONDOR XC-007 or SL273 CONDOR XC MINI, you can buy VVDI MB Tool SK185-B (cheaper) Only, your VVDI MB will have 1 free token per day.)
3. It Supports Password Calculator Function(SK185-S142). Each time will cost 25EUR, It takes 4 minutes to collect data, and 2 minutes to calculate. if you need it more, you can buy SK185-S1 [Unlimited Tokens for Password Calculation (One Year Period)]
4. On March 2nd, VVDI MB Tool add these two cables: Gear lever ECU Refresh Diagnostic Cable (the first cable of the following picture) and
Gearbox ECU Refresh Diagnostic Cable(the last cable of the following picture).

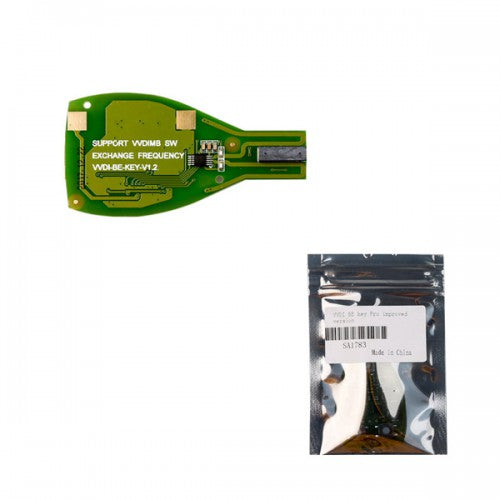

XHORSE BE Key Pro improved version for VVDI MB BGA Tool
VVDI BE key Pro improved version features:
More compatibility
New design
High Stability
High reliability
VVDI BE Key Update Features:
- Fix the bug that W164/W639 EIS data doesn't synchronize the key.
- Fix the bug that the BE key fails to turn on the ignition after a repeat try.
- Fix the bug of trunk remote open
- Add pre-roll algorithm: the HASH value can roll ahead.
- Boost the infrared signal when you press the button.
Tip: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with the VVDI MB tool at first, the SMD resistor won't work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.
The way to reset the frequency with the PCB SMD resistor:
Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ.

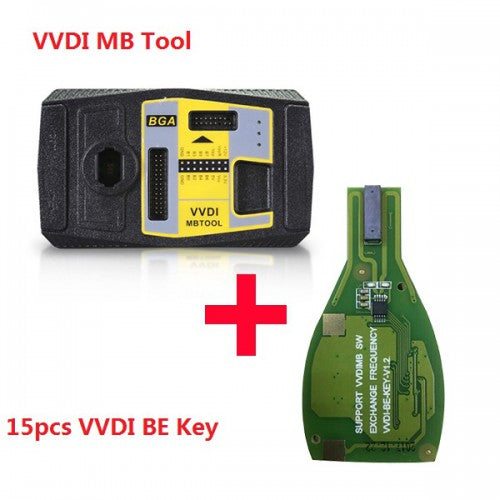

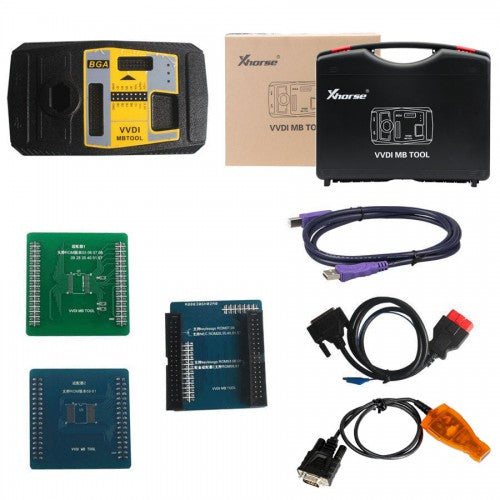

Package list:
1*full set of VVDI MB Tool
5*XHORSE BE Key
