Our Xhorse KEY TOOL MAX is a professional smart device with multi-function, Bluetooth, and WIFI communication interface are integrated inside, which is convenient for connecting Xhorse Key Cutting machine, MINI OBD TOOL, and other products to do specific operations. This device adopts an HD LCD screen with a clear interface, is easy to use, and is flexible.
Together with the Xhorse Mini Obd Tool, you will be to do multi-function vehicle programming Such as vehicle diagnosis, IMMO Programming, Throttle program, Tire pressure light reset, maintenance light reset, etc.

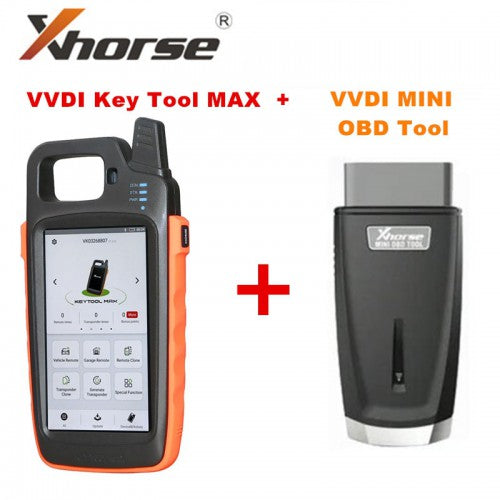

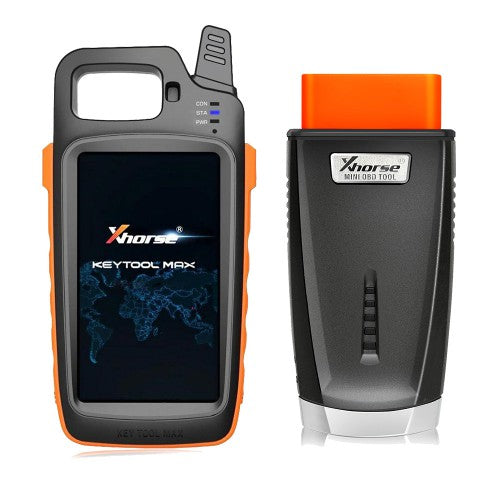

This bandle package includes Xhorse VVDI Key Tool Max programmer and VVDI Mini OBD Tool, they can work together, you will get a more powerful function and save more money!
vvdi key tool max + vvdi mini obd tool support all key lost for Toyota 8A Non-smart Key, if you need this function, you can buy Xhorse Toyota 8A Non-smart Key Adapter for All Key Lost No Disassembly
VVDI Key Tool Max Highlights:
1. Contain all VVDI Key Tool and MINI Key Tool functions.
The remote/transponder function is the same as the previous MINI KEY TOOL
and the renew remote same as KeyTool
Support Generate transponder and remote. etc
2. Added IC Copy function.
3. HD LCD screen with a clear interface, easy to use, and flexibility.
And can connect the dolphin to cut the key for the customer.
4. Enter the car directly using KEY TOOL MAX+MINI OBD for matching.
The entire process can be seamlessly connected without switching devices.
5. KEY TOOL MAX +MINI OBD TOOL can not only match the chip remote control of imported domestic cars,
a smart card, but also Toyota H chip will be released first on KEY TOOL MAX.
- Key Tool Max: V1.2.5
- MINI OBD Tool: V1.3.1
VVDI Key Tool Max Function:
1. Generate remote and smart key
2. Program and Immo Transponder
3. Generate Special Transponder
4. Renew Remote
5. Recognize and Copy Access card
6. Generate and Copy Garage Remote
7. Frequency Detection and Copy Remote
8. Connect to Xhorse Key Cutting Machine
KEY TOOL MAX connects to Key Cutting Machine by Bluetooth to do cutting operations.
9. Connect to MINI OBD TOOL
KEY TOOL MAX can be connected with Condor Dolphin XP-005 key machine via Bluetooth
We will update more info once Key Tool Max release, please excepting!
VVDI Key Max Parameter
Battery capacity: 3375mAh
Battery life>6 hours
Standby time>5 days
Recharging current: 1500mAh
Screen resolution: 1280*720P
Camera resolution: 800W

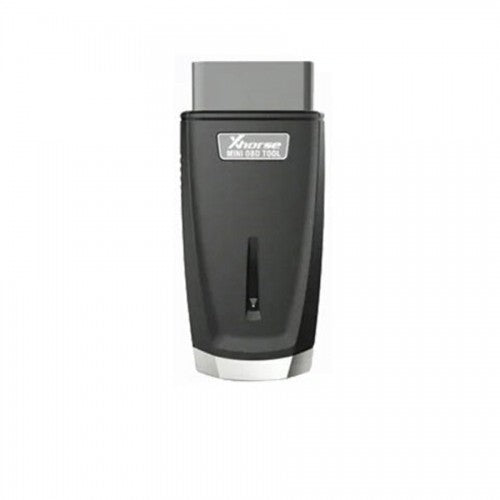

VVDI Mini OBD Tool
which can be used with VVDI Key Tool Max to perform a remote function like Generate transponder,
Transponder Clone, Generate Remote, Remote Clone, OBD matching transponder/remote/smart card.
Tire Pressure Light Reset
Maintenance Light Reset
Steering Angle Calibration
Key code learning
Remote manual programming
How to get a free ID48 96bit function?
Please use VVDI Max to generate Xhorse new remote key 10pcs
after collect points,1 hour later, the server will open the ID48 96bit function free.
How to Update Xhorse VVDI Key Tool Max:
You must connect your vvdi key max to a WIFI network
Then to update the VVDI key tool max you press the update button at the main home screen
It will show you the Xhorse App update version, Xhorse VVDI key tool Firmware update version & Xhorse VVDI key tool remote database update version, to update your VVDI key tool max press update and it will be ready in few minutes
How to update VVDI Key Tool Max and MINI OBD Tool firmware:
1.VVDI Max no need to connect with computer with horse update kit software to update firmware, just connect VVDI Max with internet to update firmware is OK, easier to update.
2.VVDI MINI OBD Tool Update:
1) MINI OBD Tool connects with a computer, use horse update kit software to update the firmware.
2) Or connect the mini obd tool with vvdi max to update the firmware.
Connect WIFI to ensure the internet is good.
Update need around 10 minutes, ensure device with enough power at least remain more than 20%.
Don't press the Power button while update.
How to Connect Xhorse mini OBD tool with VVDI Key Tool Max
Three ways for KEY TOOL MAX to connect to MINI OBD TOOL:
① USB TYPE-C Cable
1. Click on the [Select] on the VVDI Key Tool home page
2. the available device will be shown on the VVDI key tool screen
3. choose an Xhorse mini OBD tool
4. press connect button.

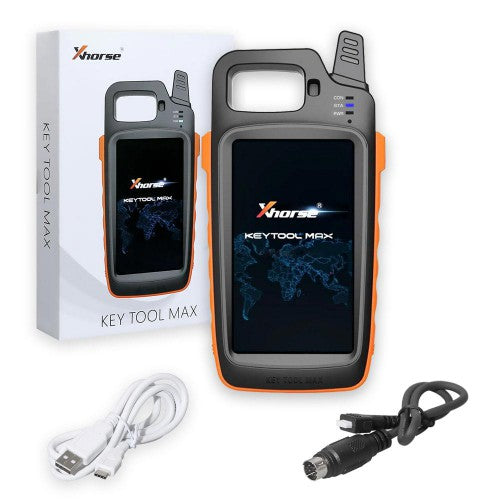

1pc*VVDI KEY TOOL MAX device
1pc*Remote generate cable
Q: Does Xhorse VVDI Key Tool Max need to be online to copy the Toyota 8A? And how about the token?
A: if you use Xhorse super chip, the server will be token-free. for other chips need to charge 100 bonus points.
Q: What is the difference between VVDI Max and VVDI MINI?
A: VVDI Max can work with the VVDI MINI OBD Tool, has its own screen. ID48 96bit function needs to generate 10 horse remote keys to get. VVDI MINI ID48 function is free, and one token is free every day. VVDI MAX and vvdi mini transponder/remote function are similar. But for some keys that need to generate online, only VVDI2 or VVDI Max is OK.
