For BMW software includes the engineer version, which is the quick and easy diagnostic programming and coding system that German For BMW engineers are using. The system is designed in English and German.
The Engineer version is so practical and powerful that it can achieve professional features which all the original professional computers can realize, can change the language into Chinese through the OBD port for import cars (Europe regulation cars, the United States and the United States, Africa, etc.). Features mainly include: diagnosis, programming, coding, realize hidden functions, new features activation, the module system update.
Item Type: Airbag sweeping tools and simulators
Top 5 Reasons to Get VXDIAG VCX SE for BMW:
1. VXDIAG VCX SE for BMW software can perform programming and coding for all For BMW E/ F/ G series cars. VXDIAG supports all BMW software and is good at fiber programming.
2. VXDIAG VCX SE software can read live Data stream, actuation test, monitoring, utility testing, reprogramming, diagnostic trouble code, etc.
3. VXDIAG VCX SE support both Wifi & USB connection.
4. Software includes BMW ISTA-D, BMW ISTA-P, BMW Group ISPI, E-SYS, WINKFP, Tool32, INPA, KSD2, and NCS-Expert tool, which also includes the engineer version
5. Perform same as ICOM A2, ICOM A3, ICOM NEXT
The main diagnostic software includes: (Keep Updating)
BMW ISTA-D v40.01.21 (Diagnostic);
BMW ISTA-P v3.59.4.004 (Programming);
BMW Group ISPI (the fourth generation of For BMW diagnostic software client);
E-SYS (Engineer Software for F series, available for programming, coding, Chinesization, realize hidden functions, Advanced features);
WINKFP (for E series: programming, upgrade and downgrade);
Tool32 (enter key, import codes, delete certification, advanced features of For BMW series);
INPA (read vehicle information, diagnosis, read and clear trouble codes);
For BMW Coding (for E series: import data, change the code, or realize hidden functions);
KSD2 (offer full vehicle repairing information for diagnosis or programming);
NCS-Expert tool (for E series: set codes, realize hidden functions and change settings);
Following functions can be activated based on the existing configuration model:
¡ñ Use the button in the cab to close the trunk (electric tailgate), to terminate the reverse operation at any time (available in cars with the electric tailgate)
¡ñ Activate the Bluetooth phone function, to automatically play the music inside the phone every time you start the car. (Available in models with a USB port in the armrest box or gear)
¡ñ Support audio and video playback via USB cable as well as via iPod.
¡ñ Connect to the phone through the Wi-Fi (mobile phones are required to install software)
¡ñ Open the voice recognition function (currently only available in English digital telephone dialing)
¡ñ Operate the navigation menu when driving, watch DVD (Even the original car is available with CD, you can also watch DVD)
¡ñ Active internet applications (available in post 2012.09 models with professional navigation, but some unsupported with unclear reasons)
¡ñ Immediately fold the rear-view mirror with the remote control (for the original car, owners need to press the lock key for 1.5 seconds)
¡ñ Activate the gearbox program on the sports cars, at a quicker response for speeding up. But it will cause fault codes in the ECU test in the 4S shop. (NOT recommended)
¡ñ Effectively prevent rear-end collision because brake lights flash quickly when braking severely (for 3 Series 5 Series, testing)
¡ñ Use mobile phone traffic to surf the Internet on iDrive via the phone Bluetooth (not tested yet)
¡ñ Adjust the warning speed of changing a lane (available in high-end cars with the rearview mirror with the dead angle warning indicator) (not tested yet)
¡ñ Automatically released the handbrake (parking button) when the vehicle is started (testing)
¡ñ Add the lane departure system and roadside warning identification function (available in optional cars with front cameras) (not tested yet)
¡ñ L7 around Sound Pro
1. Set Seat Belt Alarm time (second/sec)
2. Disable passenger Seat Belt Alarm
3. Disable driver Seat Belt Alarm
4. Set the engine on/off status the same as that before the ignition off or the default status off.
5. Set the central lock automatically unlock when ignition off
6. Set Fuel Economy Mode as default mode after ignition on
7. Enable roll up window when the open car door
8. Enable the option of DRL (Day Running Lights) on or off.
9. Set Highlight auxiliary and intersection traffic light “Automatic”
10. Enable to adjust DRL brightness (the default factory setting is brightest)
11. Set fog light turn on while headlight is on
12. Enable to Lock/Unlock sound and adjust the volume
13. Enable auto close sunroof when raining (May lead to initialize sunroof, it will work only after ignition for 10 seconds, not very effective.)
14. Set windshield wiper Back in place when ignition off
15. Set sunroof automatically close in a tilted state (It needs to initialize sunroof)
16. Set the turn signal light on/off times (F30)
17. Enable CIC menu display CI version
18. Three Bluetooth phone rings are available
19. Enlarge phone number and text storage (25 to 50)
A/C (Automatic Air Conditioning)
20. Set indoor internal circulation memory the same as that when the ignition off last time.
21. Set air conditioning memory the same as that when ignition off last time.
22. Display engine output power and torque on the navigation screen
23. Cancel home screen boot delay confirm message
24. Cancel rear view camera statement when reversing
25. Display available gas station on navigation
26. Display speed limit info (Need hardware support)
27. Display engine torque menu
28. Auto headlight
30. Display tire pressure and temperature (Need hardware support)
31. Adjust mile to kilometer
33. GPS time synchronization
34. Dashboard stimulate instant fuel consumption: change from 20 to 30
35. Enable dashboard light on always
36. Enable dashboard light always on at night (For For BMW 535, GT, 7 series and part of For BMW 530)
37. Enable dashboard light always on at daytime (For For BMW 535, GT, 7 series and part of For BMW 530)
38. Enable dashboard lights to turn grey (For For BMW 535, GT, 7 series, and part of For BMW 530)
39. Enable dashboard lights to turn orange or grey (For For BMW 535, GT, 7 series, and part of For BMW 530)
40. DS Mode displays the current shift from S1 to S7
41. Set Head-Up Display (Navigation map distance and turn signal, etc.) (Need hardware support)
42. PDC reversing radar is changed vertically and horizontally
1. SAE J2534(ECU Reprogramming Vehicle Diagnostics)
2. ISO 22900(MVCI with D-PDU API)

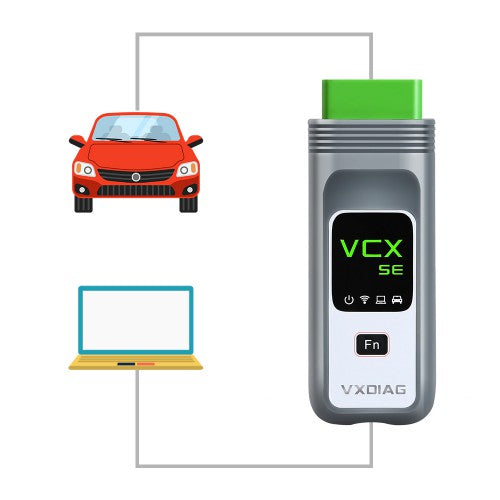

How to connect VCX SE with the vehicle?
