VIDENT iEasy320 OBDII/EOBD+CAN Code Reader

2 sold in last 8 hours!
SC396
0.5 kg
500 In stock
$48.00
VIDENT iEasy320 Enhanced OBDII/EOBD+CAN Code ReaderHighlights:1. Multi-languages: English, French, German, Polish, Russian, Spanish, Italian, Portuguese, Hungarian, Dutch, Swedish2. Update: Life time FREE software and firmware updates, unique shortcut menu to enter update mode easily3. It not only cover iEasy300 functionalities, but also is able to oxygen monitor test, on-board monitor test, and...
$48.00
customers are viewing this product!
VIDENT iEasy320 Enhanced OBDII/EOBD+CAN Code Reader

Vident iEasy320 code reader

Highlights:

1. Multi-languages: English, French, German, Polish, Russian, Spanish, Italian, Portuguese, Hungarian, Dutch, Swedish
2. Update: Life time FREE software and firmware updates, unique shortcut menu to enter update mode easily
3. It not only cover iEasy300 functionalities, but also is able to oxygen monitor test, on-board monitor test, and component test.
4. Works with most 1996 and newer OBDII& CAN compliant cars, light-duty trucks, SUVs, minivans and hybrid sold worldwide

vident ieasy300 languages
Description:

Vident iEasy320 CAN OBDII/EOBD Code Reader is a ruggedised designed and untra-portable code reader for entry-level pro and savvy DIYer.  With the capabilites of iEasy300 Pro, plus oxygen monitor test, on-board monitor test, and component test, iEasy320 is truly the ultimate in power and affordability, In addition, thousands of troubleshooter code tips help technicians to save diagnosis and repair time.

Functions:

1. Works with most 1996 and newer OBDII & CAN compliant cars, light-duty trucks, SUVs, minivans and hybrid sold worldwide

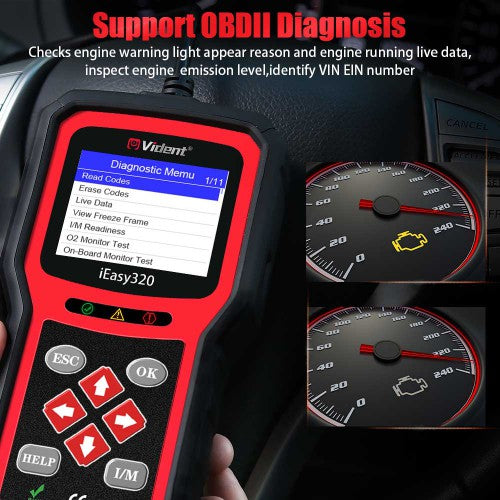

2. Support all the 10 OBDII test modes

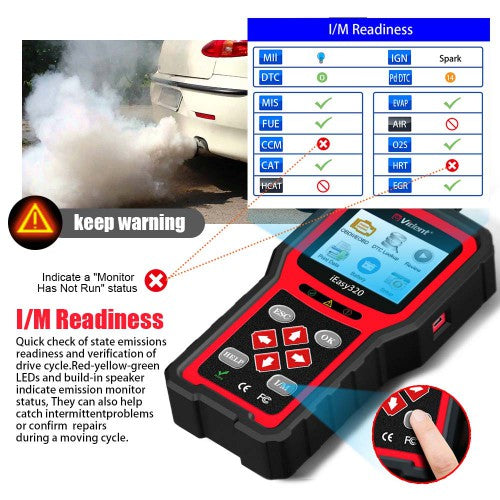

3. Red-Yellow-Green LEDs and build-in speakers indicate emissions monitor status. They can also help catch intermittent problems or confirm repairs during a drive cycle.
4. l/M readiness hotkeys make it easy to use this tool right out of the package. - quick display of the status of all tests on a single screen
5. Read/ clear stored & pending codes, switch off Check Engine Light (MIL) and resets monitors
6. View on-screen fault code definitions (Generic, manufacturer-specific, pending and permanent, where available) - thousands of definitions stored within the tool software
7. Look up fault code definitions from the tool's on-board database
8. Read freeze-frame data engine conditions such as fuel trim, engine coolant temp, etc., at the time the Malfunction Indicator Lamp (MIL) was set(a snapshot of sensor values when a DTC occurred)
9. Read, records, graphs & playbacks real-time live data streams from the engine sensors - ideal for monitoring intermittent faults
10. Graph live engine data on-screen
11. View Oxygen Sensor test results (dependent on vehicle support)
12. View onboard monitor test and component test
13. Retrieve protocol, VIN, Cal ID and CVN identifiers from ECU (dependent on vehicle support)
14. Enhanced Mode 6 functions—Non-continuously Monitored Systems test results.
15. Automatic VIN acquisition and decoding makes it much easier to read manufacturer specific codes and enhanced mode 6 data

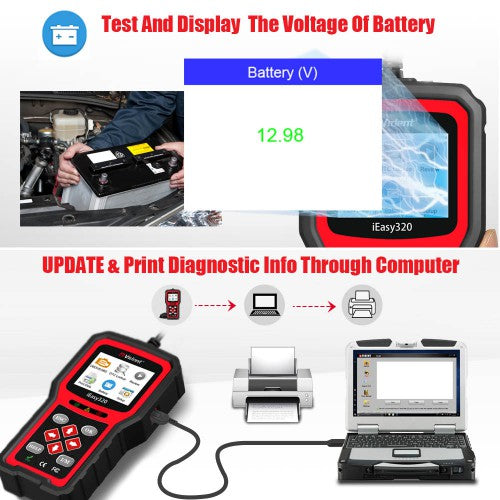

16. Test and display the voltage of the battery.
17. Support max. 4 graphic comparisons of the data stream

vident iEasy320 obdii code reader
vident iEasy320 dtc lookup
vident iEasy320 i/m readines
how to print data for vident ieasy320

Protocols:  J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN

VIDENT iEasy320 Update

1. Download the update tool Ieasy and update files from the official website and save the applications and files in computer disk.
2. Unzip the update tool file. Follow instructions on the computer screen to install the tool and driver.
3. Double click the Ieasy desk Top icon to launch the application.
vident iEasy320 update
4. Click Setting and select the language you want to update.
5. Press and hold HELP key. Hold and do not release the HELP key, then connect the USB cable.
6. When the tool enters the Update Mode, the application would detect the tool automatically.
7. Tick the file to update.
vident ieasy320 update manual
vident iEasy320 update guide

Specification:

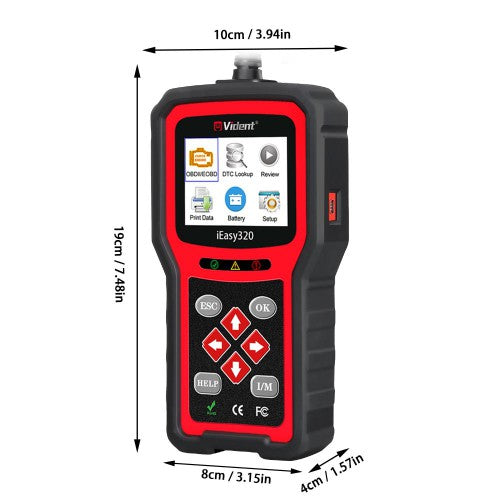

Display: 2.8” LCD color screen
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
Power: 8 to 18 V provided via vehicle

Vident iEasy200 vs. iEasy300 vs. iEasy300 Pro vs. iEasy320
Image ieasy200 ieasy300 ieasy300-pro ieasy320
Scanner iEasy200 iEasy300 iEasy300 Pro iEasy320
OBDII/EOBD+CAN Yes Yes Yes Yes
Scanning Features (1996 to Present)
Reads Generic Data & Monitors (Mode 1) Yes Yes Yes Yes
Display Freeze Frame Data (Mode 2) Yes Yes Yes Yes
Reads Trouble Code (Mode 3) Yes Yes Yes Yes
Clear Trouble Code (Mode 4) Yes Yes Yes Yes
Read Test Result of Oxygen Sensor (Mode 5) Yes Yes Yes Yes
Read Continuously & Non-Continuously Monitored System Test Results (Mode 6) Yes Yes Yes Yes
Read Pending Code (Mode 7)  Yes Yes Yes Yes
Bi-Directional Control of On-Board System     (Mode 8)     Yes Yes
Vehicle Information -VIN,CALID&CVN (Mode 9) Yes Yes Yes Yes
Read Emission-related Permanent DTCs        (Mode 0A)        Yes Yes Yes Yes
On-Board Monitor Test       Yes Yes
Modules Present         Yes Yes
Other Function
Record & Playback OBDII Live Data             Yes Yes
Live Data Graphic Display On Screen   Yes Yes Yes
Support max. 4 graphic comparassions of data stream     Yes Yes
Customize Live data   Yes Yes Yes
Read Manufacturer Specific Code         Yes Yes Yes Yes
Displays Monitor and I/M readiness status Yes Yes Yes Yes
Enhanced mode 6    Yes Yes Yes Yes
Retrieve VIN, Cal ID and CVN identifiers from ECU (dependent on vehicle support) Yes Yes Yes Yes
Battery Test & Display   Yes Yes Yes
Built-in DTC Lookup   Yes Yes
Tool Features
I/M Readiness Hotkey   Yes Yes Yes
Red-Yellow-Green LEDs Indicating Monitor Status   Yes Yes Yes
Build-in Speaker Indicating Emission Monitors Status   Yes Yes Yes
Multilingual 8 Lanugages 11 Lanugages 11 Lanugages 11 Lanugages
Memory backup for off-vehicle review   Yes Yes Yes
High Resolution Color Screen   2.4" 2.4" 2.8"
Print Diagnosis Report   Yes Yes
※is supported in update client.
A bi-directional scan tool is a unique diagnostic tool that can both send and receive information.
With bidirectional control, these devices can send information to and receive information from a vehicles control module.
In other words, with these advanced tools, you can perform functional tests, actuator tests, inspection tests, system tests or work with reinitialization and reprogramming.

Package includes:

1pc x  VIDENT iEasy320 OBDII/EOBD Code Reader
1pc x User Manual
1pc x USB PC cable for updating software
