MB SD Connect 5 highlights:
1. Supported Multi-Language: English/Bulgarian/Danish/Greek/Spanish/French/Italian/Korean/Polish/Romanuan/Serbo-Croatian/ Turkish/Czech/German/Finish/Hyngarian/Japanese/Dutch/Portuguese/Russian/Swedish/Chinese
2. Support Wireless and Lan cable connection
3. With UDS Chip, support both K Line and CAN BUS Protocol, but also UDS Protocol
4. Support Mercedes Benz cars and trucks after year 2000
5. Support offline and online programming, if you need online coding service, please buy Online SCN Coding Service
6. You are offered to buy MB SD C5 with Latest software plus Dell D630 laptop together. Software is pre-installed and activated, directly to use, save your time
New MB Compact 5 Features:
1. New MB SD Connect Compact 5 Star Diagnosis support wireless diagnose;
2. New MB SD Connect Compact 5 Star Diagnosis not only support K line diagnose and CAN BUS,but also UDS diagnose protocol. Because old MB STAR C4 main board do not have UDS chip, so old MB STAR C4 can not support it;
3. Multiplexer now use Lan cable to connect
4. Connector adopt Military quick swap technology, it can support 10,000 times pull plug, more stable;
5. All core accosseries adopt original new packing chip, and 24hours test, guarantee the quality of the products;
SD Connect C5 Supported System:
ENGINE, automatic transmission, air conditioning system, SRS, ABS and ASR, MPL, GM, Benz original security DASX system, KEYZESS GO system and OBD II system, etc.
MB SD Connect C5 Test Function:
Read the fault code, clear fault codes, dynamic data flow, computer programming matching, personalized Settings, component test and maintenance of information consultation, component location map, the circuit diagram.
DAS: selfdiagnosis system with concise interface, clear operation method, makes the query failure, the major detection system is so agile and accurate.
MB SD Connect Compact 5 Supported Vehicle List:
Support Mercedes Benz Cars After Year 2000
Passenger Car Support List:
A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126),
E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140) SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197),
M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221),S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216),
CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107),SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)
Van Support List:
MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)
Truck Support List:
Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model series
Unimog Support List:
U20, UGN, UHN
Bus Support List:
TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/O403, CONECTO, O404, O405-O408,
Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500, O500/OH, OH, OH368, OF, OF384, LO, O400,
FURTHER MODEL SERIES
Super Sports Car Support List:
MB SD Connect C5 vs. SD Connect C4
I. The software of MB SD Connect 5 and MB SD Connect 4 is same
II. But the hardware of MB SD C5 is better and stable than MB SD C4:
1. The host communication connection end USES from design, to avoid inadvertently fall in the normal use of the communication port to connect and communication failure, etc.
2. DC 12 v power supply design/host upgrades to avoid the battery installation/battery voltage instability/host can’t enter the shutdown state, etc, caused by the motherboard and rapid aging of the battery.
3. The host CPU radiator surface and perfectly fit alloy shell, good heat dissipation effect. Equipment running smoothly, don’t crash.
4. The host USES the tamper clasp, should to avoid fragile warranty sticker damage caused by the warranty disputes.
5. Host wi-fi protected the upgrade for PC plastic shell, solid quality does not affect the wi-fi signal.

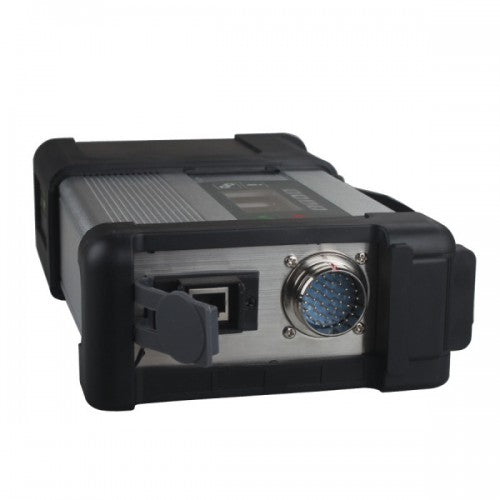

6. OBD main telecommunication lines connected to the host end upgraded to VGA15 industrial-grade connector.
7. Network upgrade for gigabit connections/pure copper wire core/double layer aluminum foil/woven mesh/silica insulation material. Gigabit communication Against interference/pulling open circuit / / fracture in low temperature.

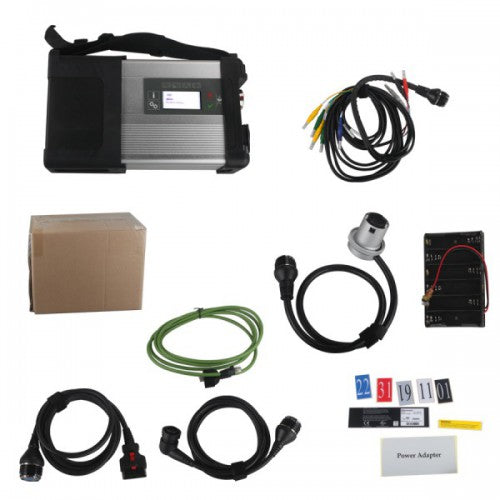

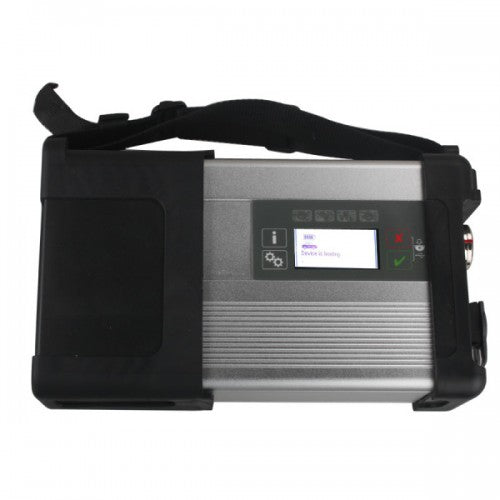

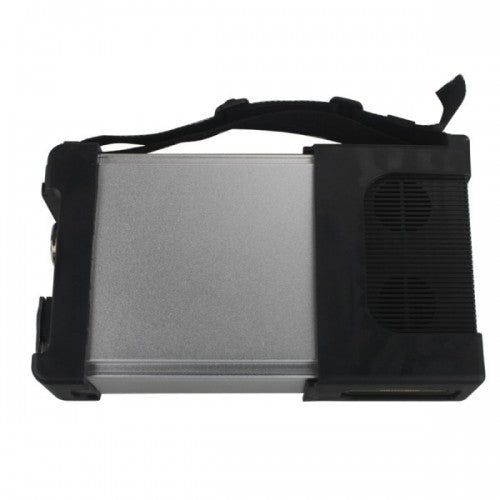

1pc x C5 Multiplexer (new C5 case)

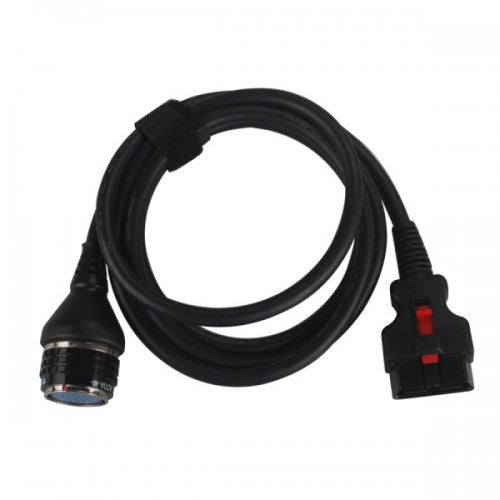

1pc x OBDII 16PIN Cable

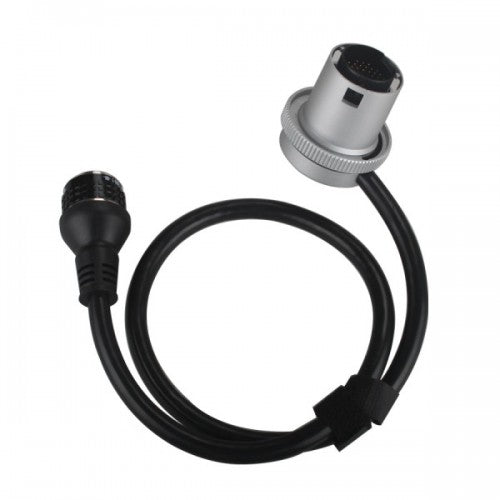

1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 8PIN Cable

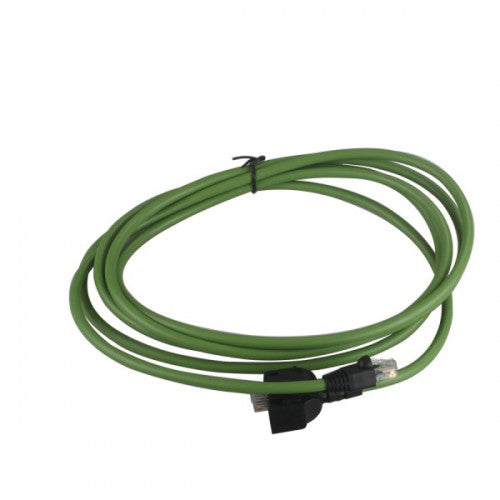

1pc x Lan Cable
1pc x software ssd
