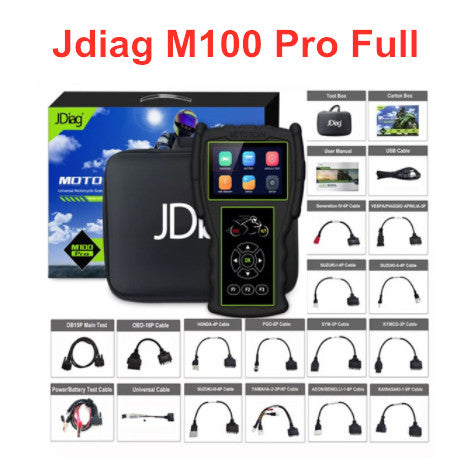

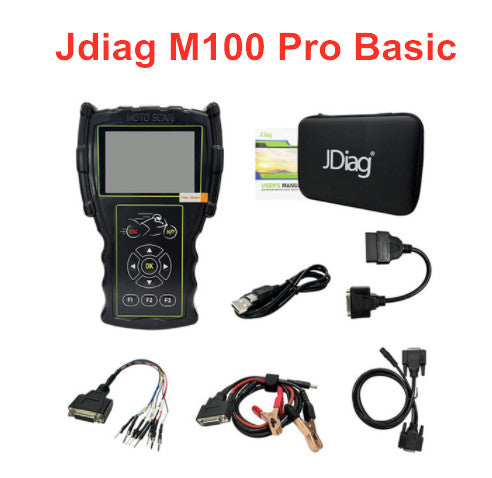

Original JDiag M100 Pro Motorcycle Auto Diagnostic Tool D87 D88 Function For Motorcycle Diagnostic Scanner
JDiag M100 Pro Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and make repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).
It allows the technician to perform factory service procedures such as re-setting the service light, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.
The tool shows live data, displays ECUdata, reads stored faults(history) or live data (RPM,batteryvoltage,throttleangle).
Features:
1, Handheld operation, convenient and flexible to use
2, Support for SD cards to store data and upgrades,
3, Reserved CAN bus interface
4, 3.5-inch color screen, clear display.
5,Dynamic data with numerical and waveform.
Function:
1. Read system information
2. Read data stream
3. Read fault code
4. Erase fault code
5. Freeze data
6. CO idle speed adjustment
7. ABS system test
Support Motorcycle list:forHartford, forAeon, forHonda, forSYM, forYamaha, forSuzuki, forKymco, forKawasaki, forPiaggio, forPGO,forKTM, etc
Support Multi Languages:
English, Chinese, Thai, Indonesian, Vietnamese, Spanish, Turkish, French, Cambodian.
Specifications:
Power: DC10-15V
Operating Current: 250mA
Storage temperature: -10 C to 85 C
