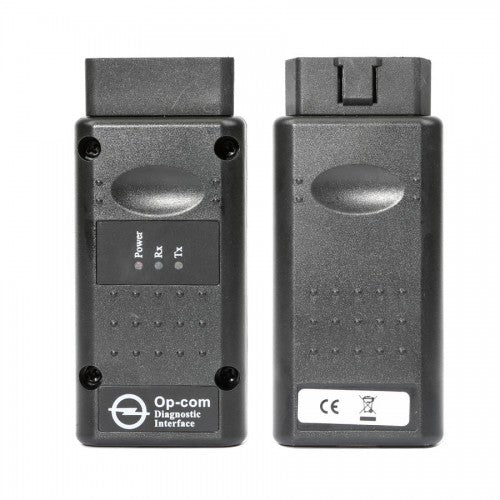

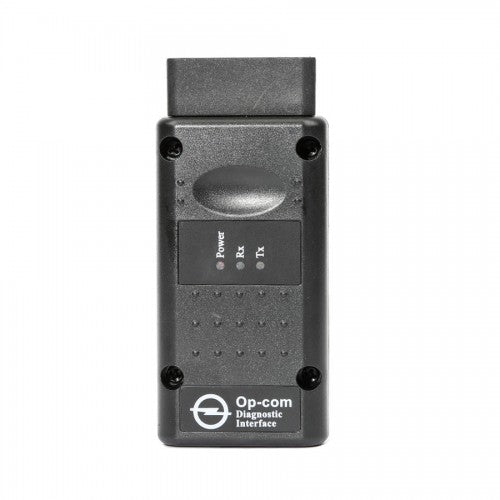

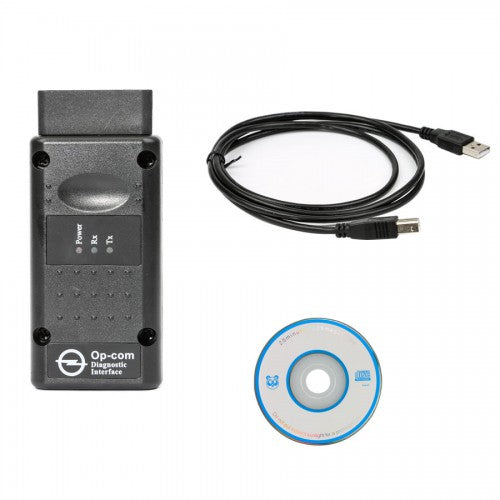

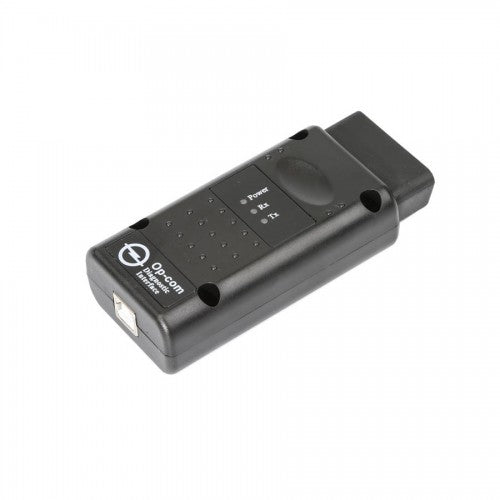

Opcom 2014V Can OBD2 For Opel Firmware Opel Diagnostic Tool
The Opcom 2014V Can OBD2 covers almost all Opel cars, even newer cars with CAN-BUS-based diagnostic, such as Vectra-C, Astra-H, Zafira-B. The program lets you read out and erase fault codes, shows you live data, lets you perform output tests. The program supports many units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate System, Body Control Unit, just to name a few examples.

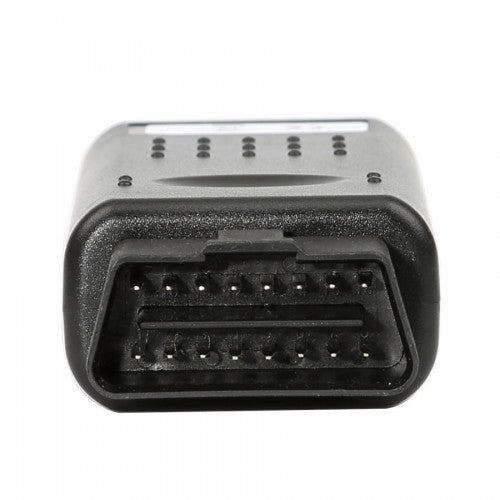

Since Opel Diagnostic Tool uses many pins in the OBD connector, the diagnostic interface functions as a multiplexer and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 Serial Link (ISO9141, KW81, KW82, KWP2000) Fault codes are shown with all available information. If you install it on XP or Win7, please make sure you install the dotnetfx35_SP1 system cookie, or the Opcom software won't perform well. When you install on Win7, please open the laptop through administration, and read the installation video on CD carefully.
- Full status information (Present, Not present, Intermittent).
- You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
- The program shows you measuring block information on many control modules. You can choose anything from the list on your own.
- The program is capable of showing 8 measuring block parameters simultaneously. The sample rate is depending mostly on the communication protocol. For example, older systems, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast.
Software Version: 2014V
Hardware Version: 1.59
OP-COM: PC Based Opel Diagnostic Tool
