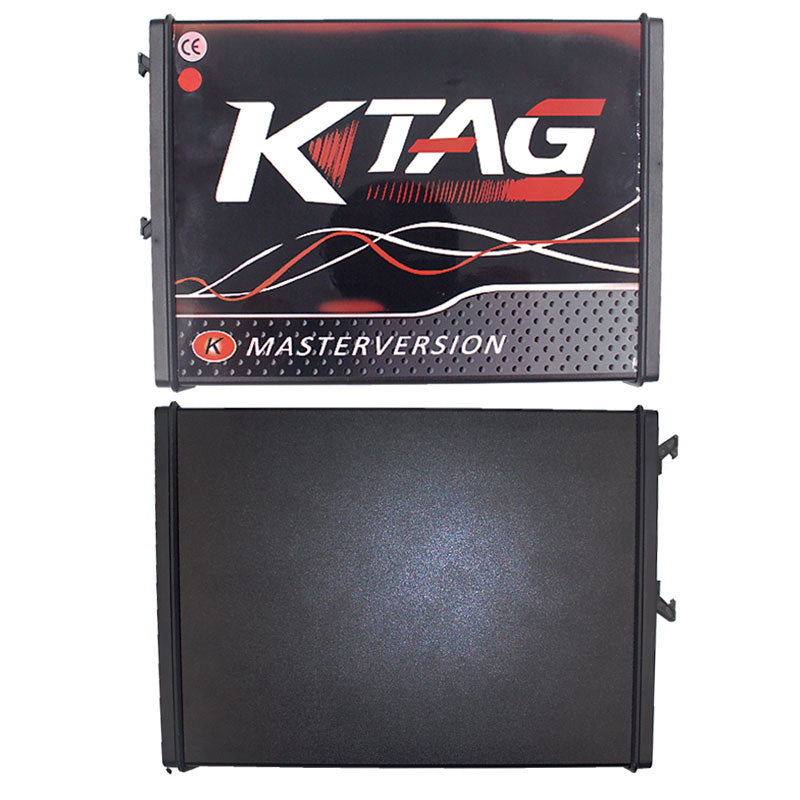

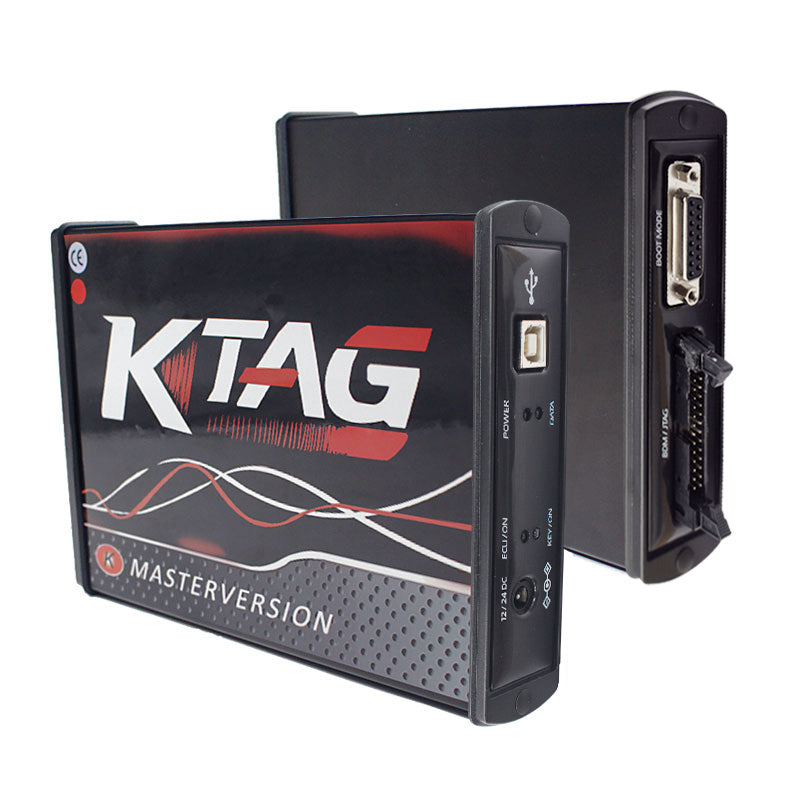

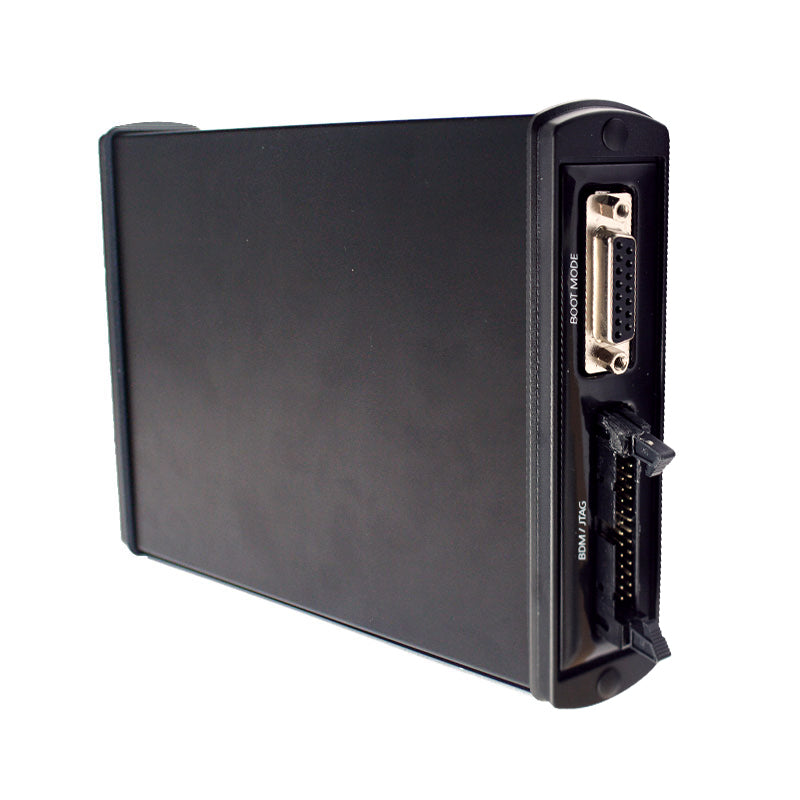

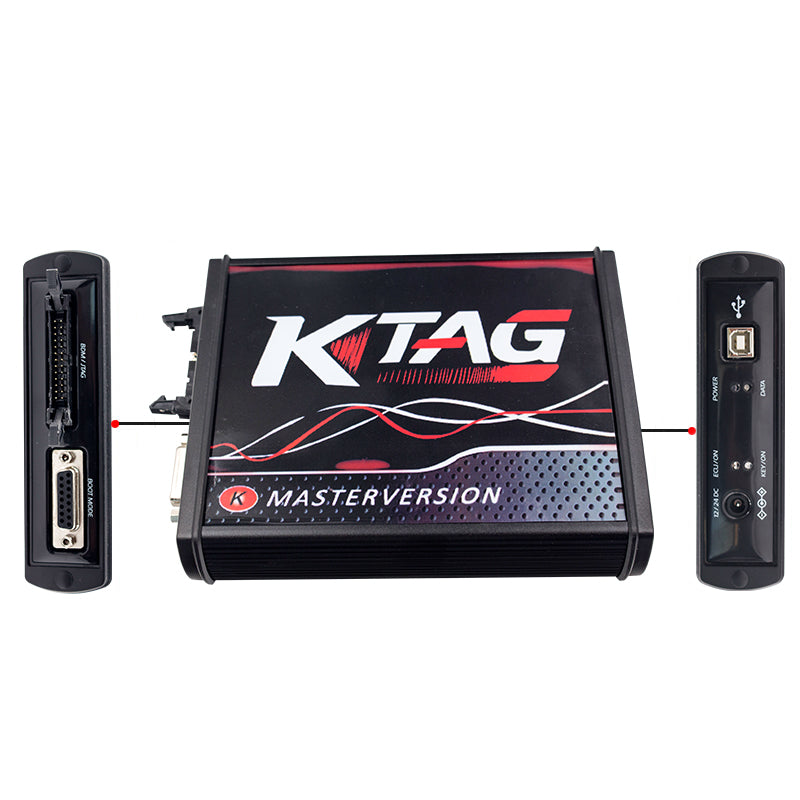

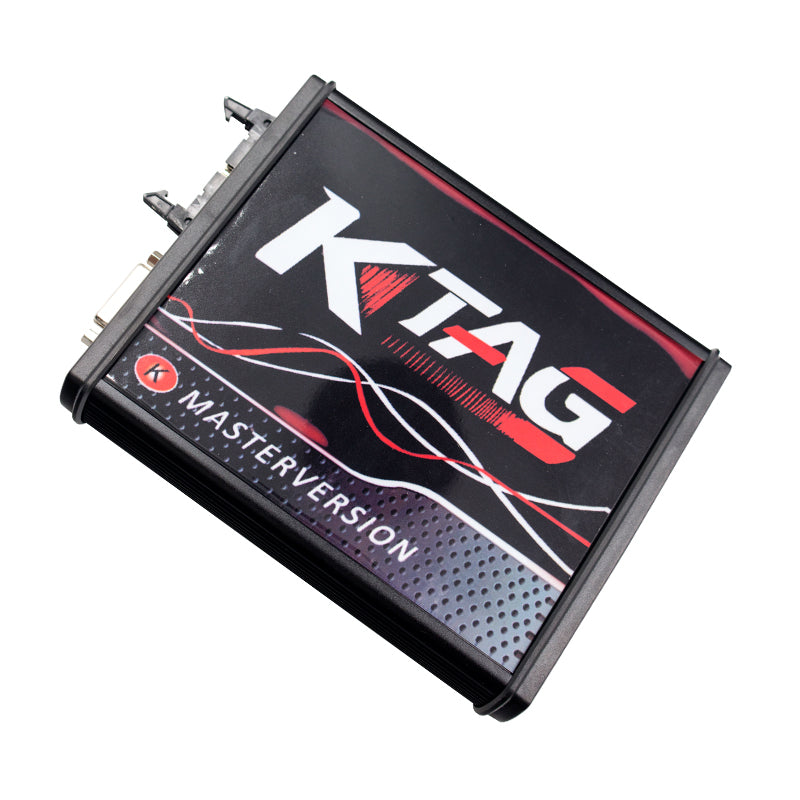

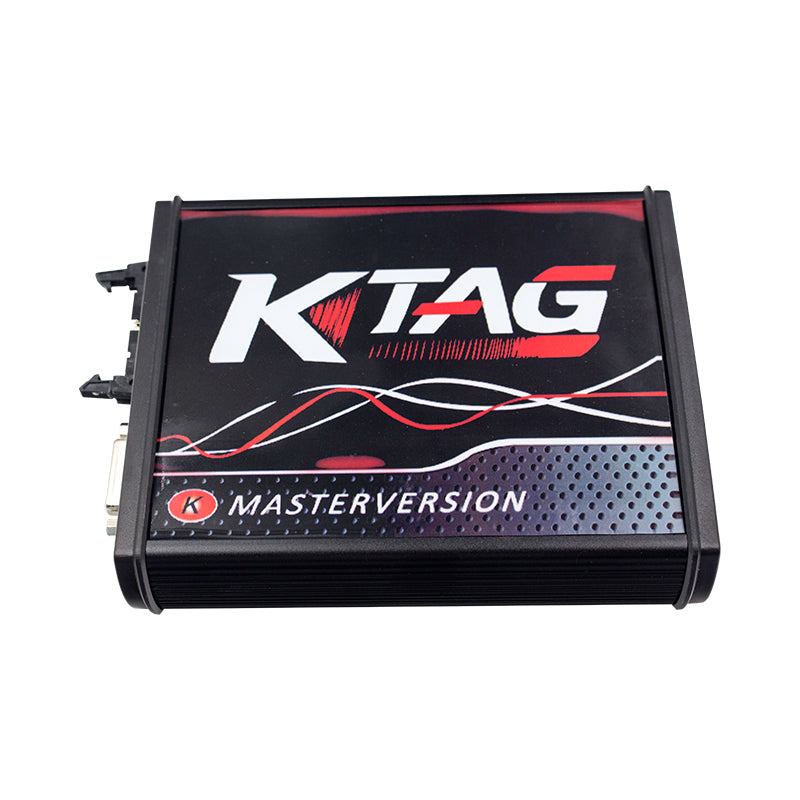

New 4 LED Red PCB KTAG 7.020 EU Online Version SW V2.25 Support Full Protocols
What's new with Ktag Master FW V7.020 SW V2.25?
-Many encrypted new car models work I.E Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276ECU, Toyota 76F, etc.
-100+ ECU types added
-Software version: V2.25
-Hardware version: V7.020
Multi-Language available: Italian Deutsch English French Portuguese Spanish
Support BDM Function Well, no checksum error, available Protocols BDM MOTOROLA MPC5xx
Support both Car, Motorcycle and Truck ECU Programming
Add New File type (FENDT/JCB/VALTRA TRACTOR BOSCH EDC17CV41 SISU ENGINE CAN
Update: By CD or Download link only. (I can give you a link to download the newest version of ktag software)
Using tips:
1. Please Only Use Our Software
2. Operating System: Better to Use Win XP
3. Tip (Very important): During operation, disable the internet connection; otherwise the software may get damaged.
1. What's the main difference between Our K-TAG KTAG 7.020 and others?
-Mainly Different: Our K-TAG 7.020 add a GPT cable to support GPT Functions ( GPT is new password algo cryptography that is implemented in new Tricore microcontrollers. our KTAG v7.020 can easily read and decrypt the secret password and it automatically unlocks/unprotects the Tricore sectors so it can read and write both Flash and Eeprom )
-No reset button, no USB Dongle. NO Tokens Limited!!!
-REAL VERSION OF KTAG 7020 EURO ALL ACTIVATED VERSION!!!
2. What is the advantage of KTAG V7.020 over other EUC Chip Tuning Tools in the market?
-Supports online full protocols, fully activated, without tokens limited.
-There are a lot of ECU that needs to disassemble from the car and open and this is the case for all the ECU that need to be programmed with Jtag, BDM, and Boot protocols, so KTAG is needed, as the new generation ktag master,ktag 7.020 is the best choice.
-K-TAG 7.020 can work For Toyota Hilux kun26 and newly added 100+ ECU types & supports new car models e.g. Toyota 76FXXX, PSA 17.4.4, Ford E83, VW 17.5.5 (1766), Mercedes-Benz 276 ECU, Toyota 76F, etc.
-KTAG V7.020 adds a cable with GPT Functions.
-Online operation supported.
-Best PCB With Murata filters.
-Multi-Languages Supported.
-With a great performance and being tested by many tuners and was regarded as one of the best ECU Programmer for trucks, heavy-duty, boats.
-No tokens limited, no years limited.
-No USB Dongle, No reset button.
3. KTAG v7.020 Red PCB ECU Tuning Tool Install/User Note
-The KTAG you received will with the latest software 2.25 and hardware 7.020, so Never update it online. We will send you a free update link in the future.
-We don't sell SD cards and chips alone, sorry.
-We offer free Transdata disport software for Ktag 6070, but no install help in this free gift.
-Our KTAG 7.020 can be used online, no reset button need.No tokens limited

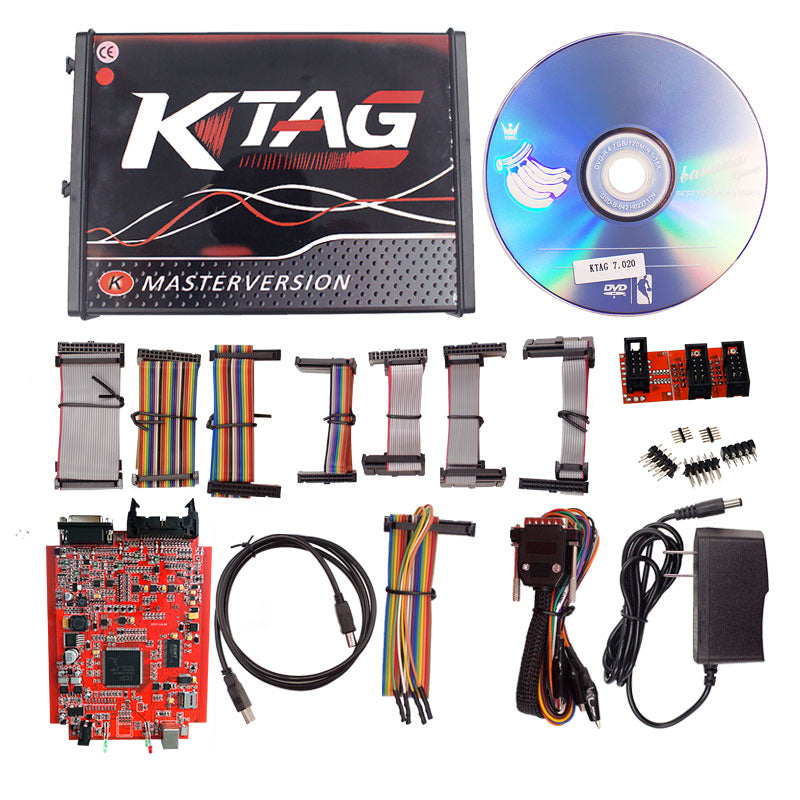

KTAG 7.020 Red PCB OBD2 Manager Tuning Kit PCB Display
K-TAG red PCB EU Version PCB Component!
1. use of imported Japanese Murata NFE61PT472C1H9L filters
2. 2.8x WFs = Infineon, BCR112 NPN Digital Transistor
3. 3.7x 27E = ON Semiconductor NUP2105LT1G
4. 4.8x 6DW = NXP BC817215 NPN Bipolar Transistor
5. 5.3x A6c = MMUN2113LT1G / MMUN2113LT3G check your ktag PCB may already have 3 x A6c
6. 6.2x K5B = BC807-25-7-F PNP Bipolar Transistor
