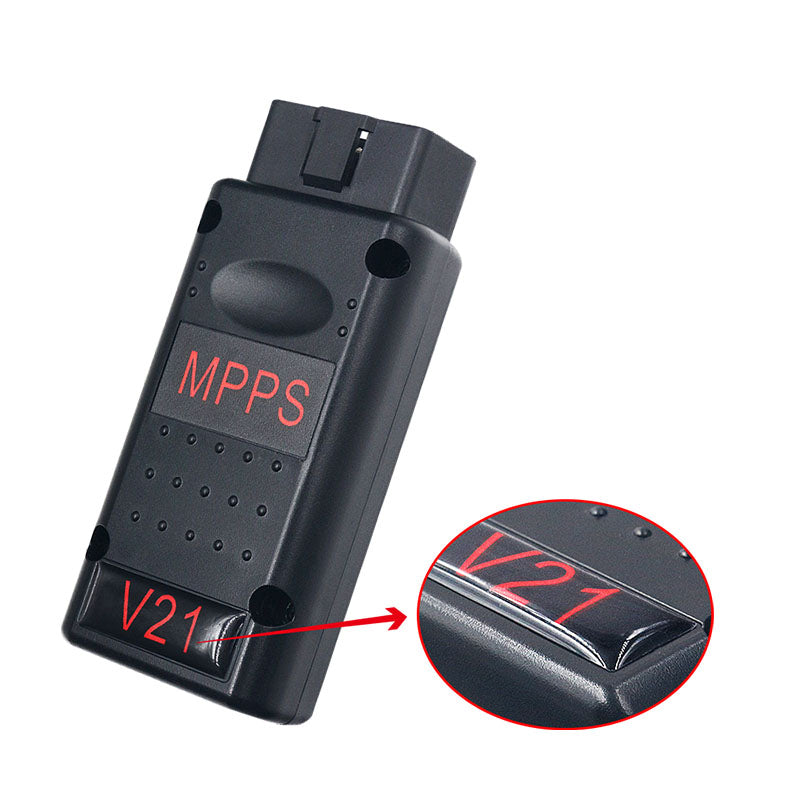

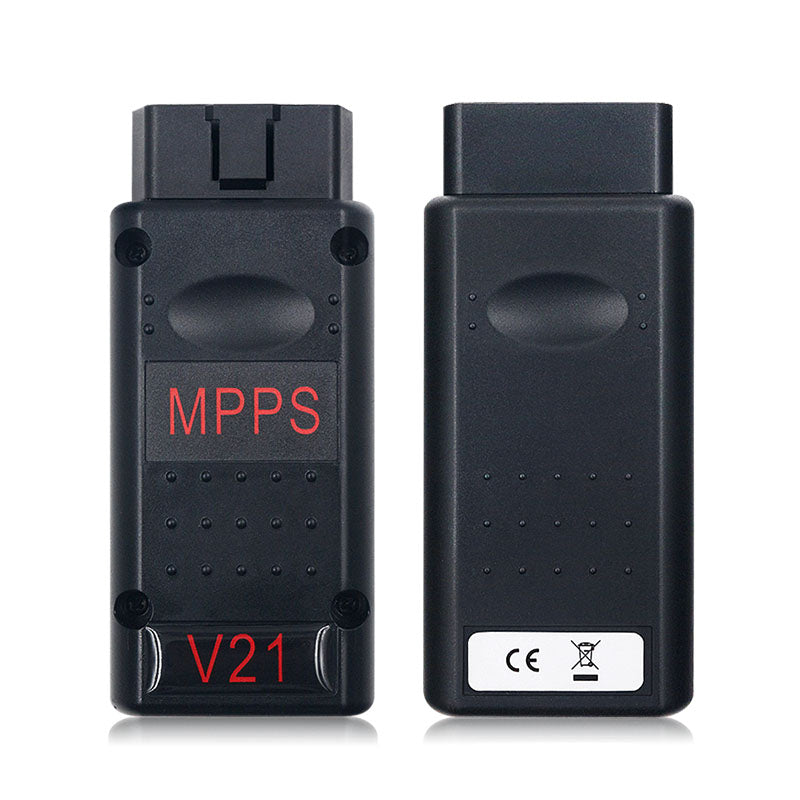

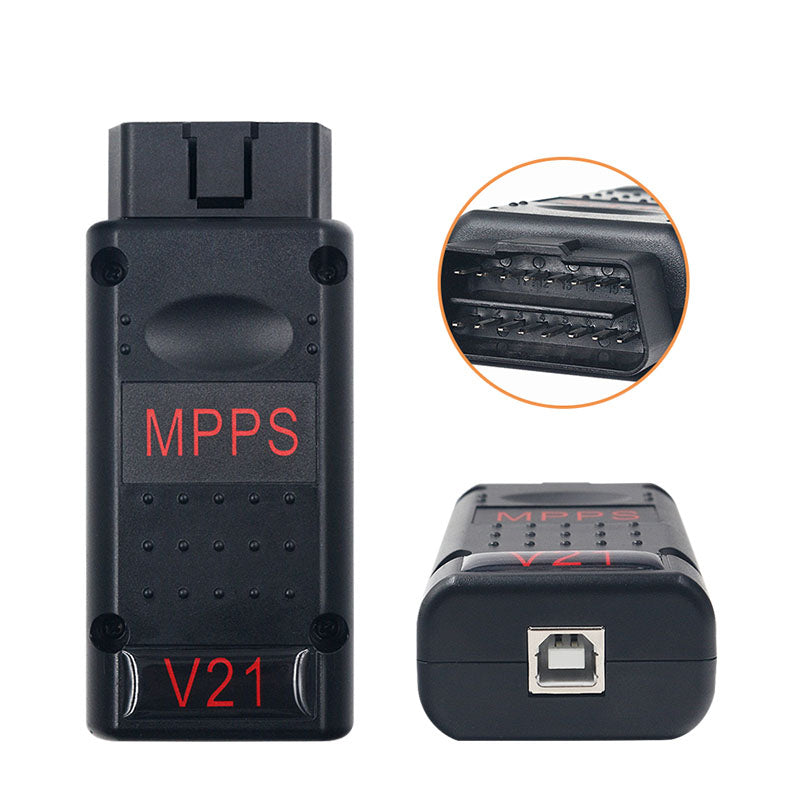

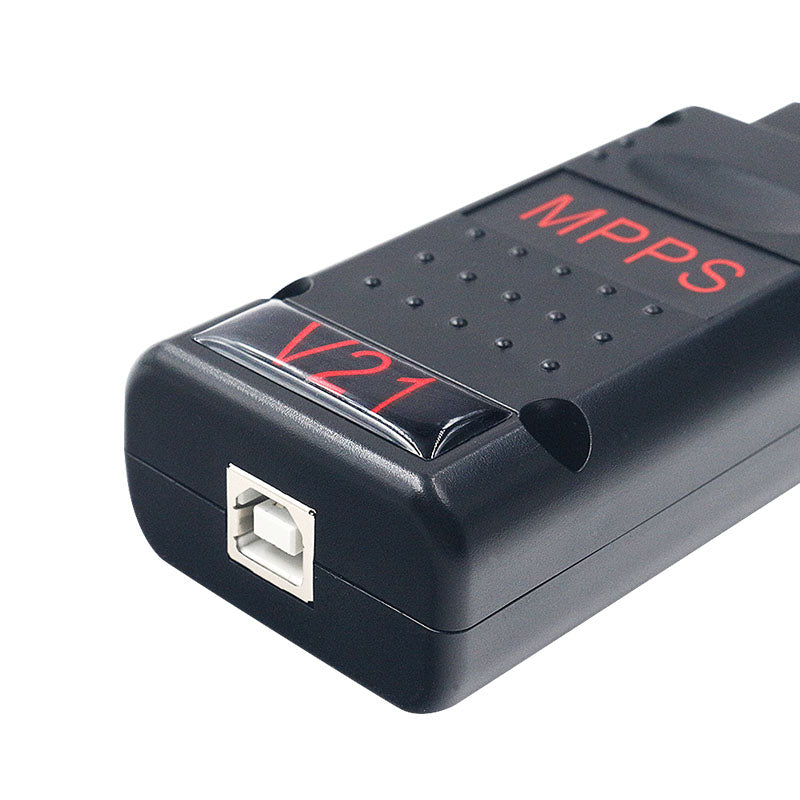

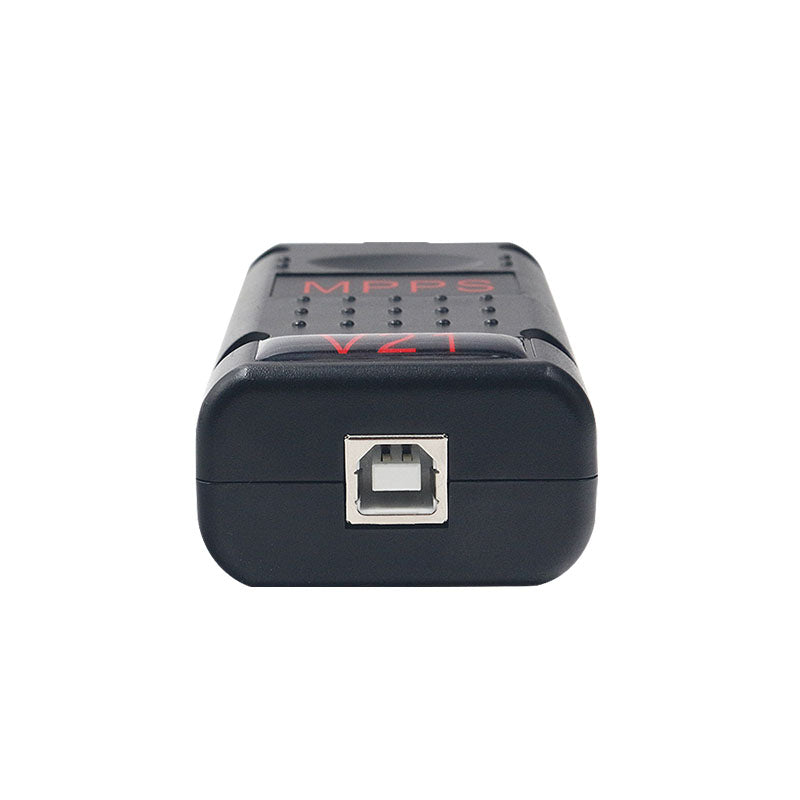

MPPS V21 MAIN + TRICORE + MULTIBOOT Chip OBD2 Diagnostic Tool

2 sold in last 8 hours!
XTY19103
0.2 kg
500 In stock
$35.00
MPPS V21 MAIN + TRICORE + MULTIBOOT Chip OBD2 Diagnostic Tool Our MPPS V21 main + TRICORE + MULTIBOOT, with branched three-core cable. This module appends support for the forward functions of Marelli ECU. MPPS covers a series of controllers, Checksum improvement supported for MEDC17, which has a stable appearance. Our...
Shipment From :
$35.00
Free Shipping
customers are viewing this product!

MPPS V21 MAIN + TRICORE + MULTIBOOT Chip OBD2 Diagnostic Tool

Our MPPS V21 main + TRICORE + MULTIBOOT, with branched three-core cable. This module appends support for the forward functions of Marelli ECU. MPPS covers a series of controllers, Checksum improvement supported for MEDC17, which has a stable appearance. Our products have higher performance, you can use them with reliance, and bring you a perfect shopping occurrence.

The automatic detection of ECU and processor types. It is not necessary to select from the list. It holds the unlocking of VAG Simos PCR and Simos 8, which is practical. Bosch MEDC17 supports checksum correction with firm performance. ECU chip tuning scanner is fitting for Fiat 6JF-complete to read/Write Micro and EEprom/Opel 6O3 through K line-complete read/Write Micro, Flash, and EEprom for Kline and Posterior.

Features:

  • Excellent recovery features. In some cases, MPPS can recover ECUs that other tools can't even communicate with.
  • Write the "change only" function for faster programming (when supported by the ECU).
  • Automatic K-Line / CAN detection, and option to bypass and force preferred media.
  • Temporary immobilizer bypass to allow bank flicker on ME7 systems.
  • Boot mode support for ECUs with C167 and ST10 processors.
  • EEprom read / write functions are included for some ECUs.
  • Checking the VAG MEDC17 TPROT level without opening the ECU.

Specifications:

  • Hardware VersionNEW
  • Item Height10cm
  • Item Length: 20cm
  • Material TypePlastic & metal
  • Item TypeAir Bag Scan Tools & Simulators
  • Item Weight0.2kg
  • Software VersionV21

WORKS WITH V18 INTERFACE ALSO

MPPS V21 SOFTWARE ONLY With MAIN+TRICORE+MULTIBOOT Unlimited Tokens Activated.



*For VAG ALL TDI Bosch EDC17 X UDS drive now supports *EDC17C46 and EDC17C64 ECUs.

Must be unlocked first using an MPPS container file.

*Generic Tricore VAG Only Multi ECU – MPPS Container file flasher.

*Can be used to flash firmware updates and OBD UNLOCK files created using new VAS FRF file utility in tricorn boot plugin.


Specification:
13


-OBD:

*For Volvo ME7 CAN R/W/Cks

Bench only at the moment.

*For Volvo EDC15C11 CAN R/W/Cks

Bench only at the moment.

*Bentley ME7.1.1 CAN R/W/Cks

*Master/Slave ECUs.



-Tricore Boot

*Added new file checksum utility for tricore, now supports:

(M)EDC Flash checksum

(M)EDC Eeprom checksum

Simos PCR

Simos 8

Simos SID305



Added new VAS FRF file special function utility in tricore boot:

Create MPPS container file from FRF file.

MPPS V21 can be used to perform software updates using the new protocol in MPPS.

Mpps V21 create OBD UNLOCK MPPS container file from FRF file.

Mpps V21 compare with MPPS V18 can be used to perform OBD unlock using the new protocol in MPPS, which currently supports Bosch EDC17C46 and EDC17C64.

Mpps V21 Create READ UNLOCK MPPS container file from FRF file.

Mpps V21 can be used to perform full read unlock using the new protocol in MPPS, which currently supports Simos PCR. More options of eobdtool.com MPPS will be added for this ECU in future releases!

Mpps V21 create BIN file from FRF file.

Mpps V21 can be used when ECU can not be read from OBD.

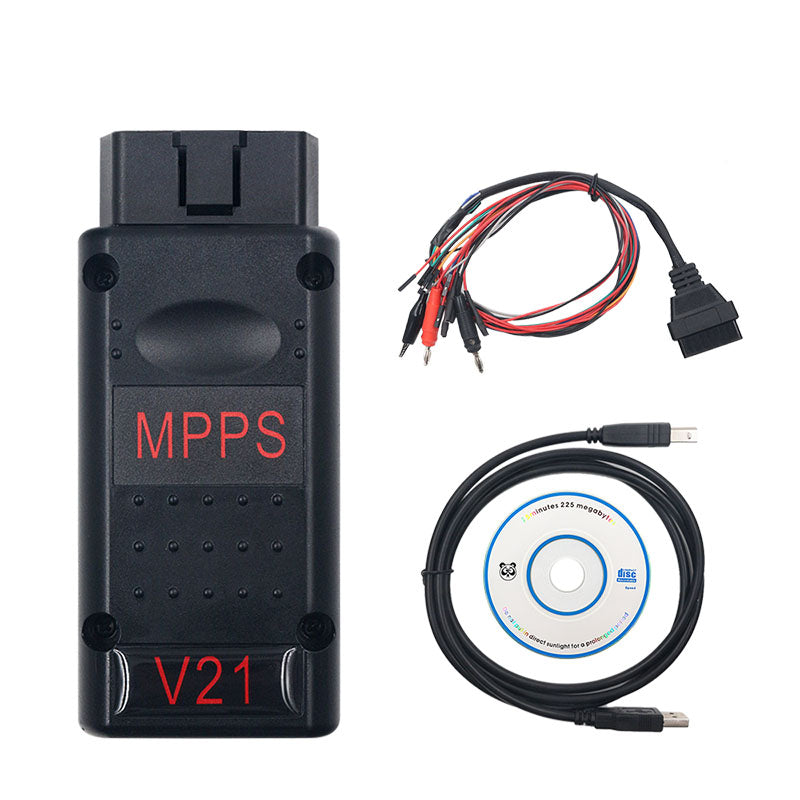

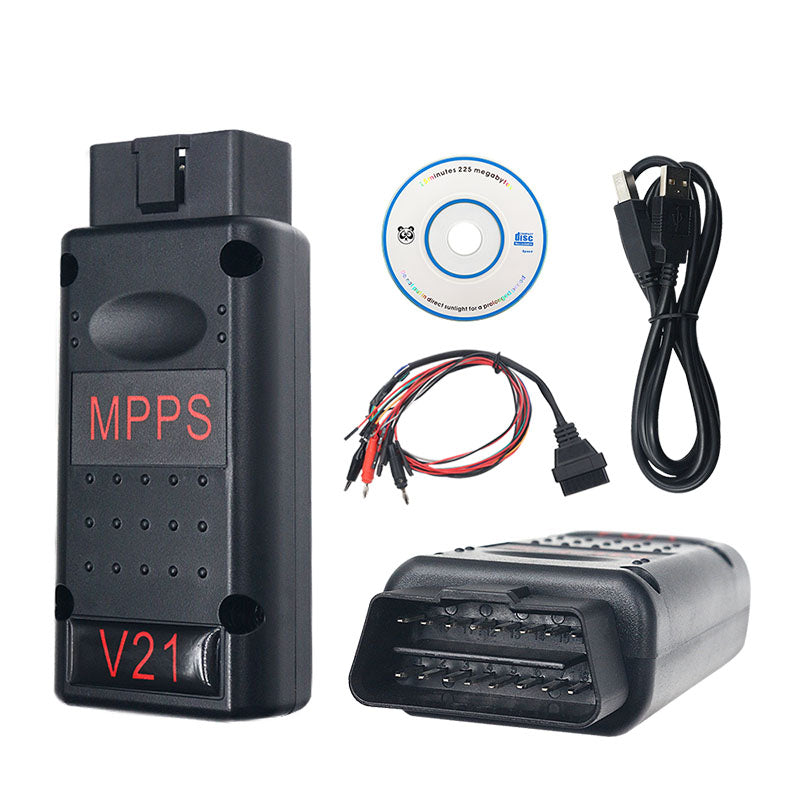

Package list:

1pc x MPPS ECU Chip Tuning

1pc x Breakout Tricore cable

1pc  x USB Cable

1pc x CD
