Lonsdor K518ISE K518 Key Programmer
Our Lonsdor K518ISE, the English version of Lonsdor K518, is a natural chief programmer for all services from Europe, America, Asia, and China, also it can achieve odometer improvement for some makes. Its appropriate components are made-in Volkswagen 4th 5th adapter & RFID transponder reader/writer, schedule Toyota/Lexus appearance key all key dropped via OBD, and easy BMW FEM code programming (for all keys lost, enter 32-bit ISN code). Lonsdor K518ISE is concentrated in Volvo, Maserati, Ferrari, Lamborghini, Bentley, Nissan, etc. Lonsdor K518ISE has no token limitation.
The best car diagnostic device is based on Android. WIFI networking guarantees software upgrading is more convenient. No need to plug a fantasy card, or connect the computer with a data cable, more resilient in online upgrading, updating, and activating. With USB-B2.0 conventional connector, OBD-II test cable combined with the diagnostic connector function of the adapter. Diagnostic speed considerably accelerated, work efficiency improved, better time-saving.
- The best car diagnostic tool is based on Android.
- Support external memory expansion, better within 32G.
- Built-in professional, powerful operation assistant system.
- WIFI networking ensures software upgrading is more convenient.
Material Type: standard high quality
Item Length: 40cm
Hardware Version: Newest
Item Height: 20cm
Item Width: 25cm
Item Weight: 4kg
Item Type: Auto Key Programmer
How to use Lonsdor K518ISE program Audi keys?
Lonsdor K518ISE, the English version of Lonsdor K518, is a universal key programmer for all makes from Europe, America, Asia, and China, also it can perform odometer adjustment for some makes. Its nice features are built-in Volkswagen 4th 5th adapter & RFID transponder reader/writer, program Toyota/Lexus smart key all key lost via OBD, and free BMW FEM key programming (for all keys lost, enter 32-bit ISN code). Lonsdor K518ISE is specialized in Volvo, Maserati, Ferrari, Lamborghini, Bentley, Nissan, etc. Lonsdor K518ISE has no token limitation.
Lonsdor K518ISE Main Functions & Features:
Built-in Volkswagen 4th 5th adapter
Built-in Chip & remote detection module
Lonsdor K518 Key Programmer Special Features:
Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
Toyota/Lexus: smart key all key lost - via OBD ( without dismantle)
BMW CAS3/CAS3+/CAS3++: direct OBD programming
BMW CAS4/CAS4+: dismantle & read data programming
16 -New Maserati: smart key programming
16 -New Ford: smart key programming
Hyundai / Kia 46/47/8A smart key: PIN code reading via OBD, all keys lost included.
Renault ( Megane, Koleos, Scenic) without PIN code key programming
VAG group 4th & 5th immobilizer system
Ferrari (458, F12, F149): direct OBD programming
Peugeot /Citroen: two ways to read PIN code & programming, all keys lost included.
Lonsdor K518 Highlights:
1. The best car diagnostic tool based on Android
2. WIFI networking ensures software upgrading is more convenient
3.No need to plug a memory card or connect the computer with a data cable, more flexibility in online upgrading, updating, and activating.
4. With USB-B2.0 standard connector, OBD-II test cable integrated with the diagnostic connector function of the adapter.
5. Diagnostic speed greatly accelerated, work efficiency improved, better time-saving.
6.7 inches high brightness, high definition color IPS capacitive screen
7.3800mAh polymer battery
8. Support external memory expansion, better within 32G
9. Built-in professional, powerful operation assistant system
Lonsdor K518ISE Latest Update Policy:
Menus are divided into two parts: free menus and subscribed menus.
1. Free menus are free for a lifetime.
2. Subscribed menus can be used for free for 180 days. You need to pay for them after the trial period.
After the trial period, subscribed menus will not work properly if you don't pay. And the menus will disappear after updating the device.
A. 365 days is a period and the price is USD600 per period. One year period starts from the day of the trial period finished.
B. Purchase menus with a dealer. You can use the menus normally and permanently after payment.
C. Menus which you purchase includes subscribed menus that have been released and that will have been released in one year period.
D. Subscribed menus beyond one year period require extra payment.
Lonsdor K518ISE Update Car List Download
The car list in PDF marked Black can be updated for Free.
For cars marked Red enjoy 180 days free trial. You need to subscribe to use later. If you don't need these newly updated car models. You don't need to pay for service, your tool will go back to normal.
Lonsdor K518ISE Newest Update Info:
VW Gen 4 Update [July 10,2019]
Newly Added 500+ VW Gen4 VAG Number Auto identify into
Renault Clio4 All Key Lost Update [July 5, 2019]
Lonsdor K518 Update Announcement [May 14, 2019]
Bypass PIN Code Offline
Renault FLUENCE/2008-/Mechanical Key
FIAT BRAVO/-2007/Read PIN code & Make dealer key
FIAT 500X/2014-/Read PIN Code
FIAT 500X/2014-/Delete key
FIAT PANDA/2011-/Read Key data
Lonsdor K518 Update Announcement(August 8th,2018)
European Vehicle Makes and Models Update [May 5, 2018]
84 Smart Key
2007 Crown Key
Alphard Add Smart Key
Crown 68 chips all lost
2013/2015 Verna Remote
2009 Rohen's Add Smart Key
2014 Sonata 8 Communication
2014 IX25 Smart Key All Lost
Honda & Nissan Series:
Honda Accord 9th key
2017 Nissan Teana 4A Transponder
PEUGEOT\Select from vehicle\1007\Immobilizer\Type 3
PEUGEOT\Select from vehicle\308\Immobilizer\Type 2
PEUGEOT\Select from vehicle\4008(China)\Smart Key
PEUGEOT\Select from vehicle\4008(China)\Immobilizer
LAND ROVER\Select from type\Smart Key\Type 1
LAND ROVER\Select from type\Smart Key\Type 2
LAND ROVER\Select from type\Remote\Type 1
LAND ROVER\Select from type\Immobilizer\Type 1
LAND ROVER\Select from type\Immobilizer\Type 2
LAND ROVER\Select from type\Immobilizer\Type 3
LAND ROVER\Select from vehicle\Defender\Remote\2010-2014
LAND ROVER\Select from vehicle\Evoque\Smart Key\2015-
LAND ROVER\Select from vehicle\Evoque\Immobilizer\Type 1
LAND ROVER\Select from vehicle\Evoque\Immobilizer\Type 2
LAND ROVER\Select from vehicle\Freelander\Smart Key
LAND ROVER\Select from vehicle\Freelander\Remote
LAND ROVER\Select from vehicle\Freelander 2\Immobilizer\2006-2012
How to use Lonsdor K518ISE program BMW FEM BDC key even all key lost
CAS4 Enable/Disable Key
Check the detailed functions and car list here
Lonsdor K518 Immobilization Car List:
Audi, BMW, Benz, VW, Volvo, Citroen, Ferrari, Maserati, Fiat, Lamborghini, Jaguar, MG,
Land Rover, Bentley, Lancia, Opel, Peugeot, Porsche, DS, Renault, Alfa Romeo, Smart,
Cadillac, Chevrolet, Dodge, GMC, Buick, Hummer, Ford, JEEP, Lincoln, Mercury
Honda, Hyundai, Isuzu, KIA, Lexus, Mazda, Mitsubishi, Nissan, Ssangyong, Subaru, Suzuki,
Toyota, Shigaoka Queen
Iveco, Trumpchi, BYD, Geely, Chery, Great Wall, Young Lotus (Basically all Chinese car
models are included)
Odometer Adjustment Car List:
VW, Porsche, Ford, Jaguar, Land Rover, Mazda, Audi, Renault, Hummer, Hyundai, Kia...
More high-end cars will be updated very soon.
Details: Lonsdor K518ISE odometer adjustment coverage
Note: K518ISE is still under rapid upgrading, more functions will be released soon, please refer to the official website www.lonsdor.com, you can “One key update” for the latest version by yourself.
Lonsdor K518ISE can program Toyota/Lexus smart key all keys lost via OBD by working together with extra SKE-LT Smart Key Emulator 4 in 1 Set (optional)
SKE-LT: Smart Key emulator - Toyota/Lexus smart key for all keys lost via OBD.
Black: SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart keys.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.

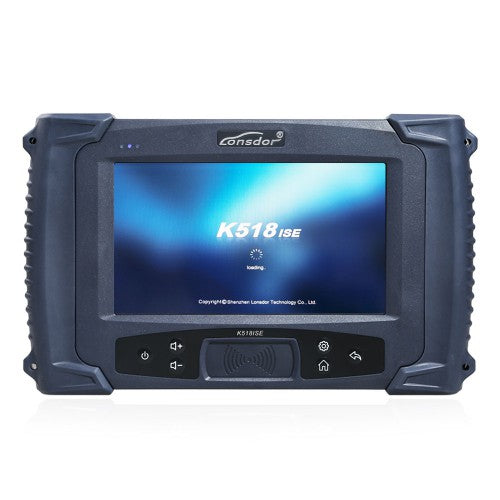

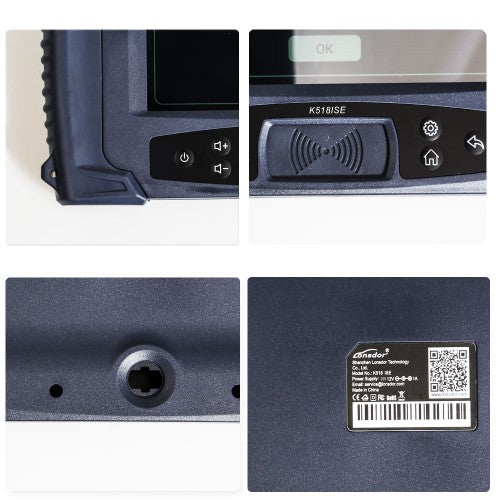

Lonsdor K518ISE Main Unit Appearance:
1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red - external power supply; blue - system power; yellow - communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right, and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to the previous step
10. Built-in antenna: antenna inside
11. Model: K518ISE
Screenshot: press the power button and volume down button together

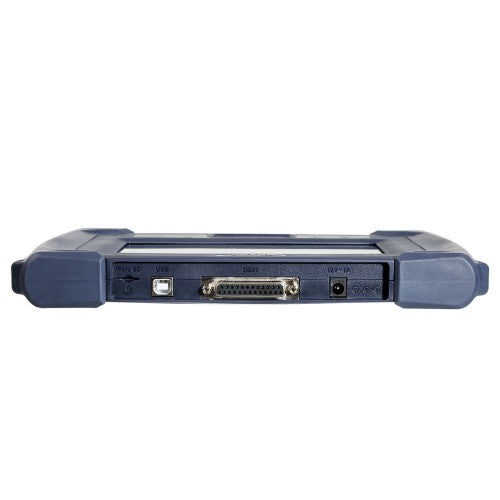

K518ISE Top View:
1.Power socket 2.SD card slot
3.DB25 port 4.USB port
KPROG Adapter Appearance
KPROG Adapter Front View:
2.Three-color indicator: Red:power light Blue:data light Yellow:comm status light
3.Simple horn seat:to connect with 20pin cable
KPROG Adapter UP View
RN-01 board:read & write CEM data
E-01 board:read & write EEPROM data
FS-01 board:read & write KVM data
20P cable:connect adapter with function accessories
*The 3 extra connector s are for Honda(3-pin),Hyundai/Kia(10-pin) And Kia(20 pin) respectively.
Lonsdor K518ISE Connection Picture:
Lonsdor K518ISE Main interface:
Lonsdor K518ISE Setting interface:
How to Use Lonsdor K518ISE?
Here I take the Toyota/Lexus smart key all key lost as examples.
1. Go to the “Bind emulator key” function;
2. Turn on the emulator key and put it into the K518ISE key slot (put the status indicator down, make sure the key is active);
3. Following the system direction and click “OK” to start binding;
4. After binding is completed, the system will indicate “Binding successful”.
Note: The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the” One key update” for the latest news.
2) Backup EEPROM data
Connect K518ISE with the car OBD port, enter into “Backup immediate” to back up the data.
3) Make an emergency emulator key
After choosing the immo data, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key and put it into the K518ISE key slot(make sure the key is activated), follow the instruction to make an emulator key.
4) Add smart key
There are 3 ways to update the system, and after you connect the k518ise to the network, it will be updated to the latest version automatically.
Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activate.
The system will read the current key count, then follow the instruction to add the key.
1.” Bind emulator key” can identify the SKE emulator key binding state;
2. SKE emulator key need to bind K518ISE host and can bind only for one time;
3. When making an emulator key, make a sure well net connection and choose the corresponding SKE emulator key model correctly.
For more detail, please view our official website: K518ISE programs Toyota/Lexus smart key all key lost via OBD
How to update Lonsdor K518ISE:
One key update: quickly update the newly added or modified functions.
APK update: this is used when the APK is updated.
Force to update: this is used when the device is faulty or to retrieve data.
Londor K518ISE Adaptor Binding:
Please note that the KPROG adapter must be bound to K518ISE before use, here is the binding process:
Step 1. Connect the adapter to K518ISE with mainline
Step 2. Connect K518ISE with a 12V power supply
Step 3. Enter into “Setting”
Step 4. Click “Bind adapter”
Step 5. Click “OK” to complete
Note: The KPROG adapter is specialized for part of Volvo car series and the new Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as Jeep Grand Cherokee, please refer to our website or directly go to the” One key update” for latest news
How to Register Lonsdor K518ISE key programmer?
After system updating, you need to go to registration&activation.
For new users,
Click on Registration,
Input: user name(email), name(min 2 char), password(min 6 char), email verification code
Click on YES
Lonsdor K518ISE registration completes
(if interrupted after registration is done, you will go to the System update–Registered user to proceed).
Then go to Activation confirmation to continue.
How to ActivateLonsdor K518ISE car key programmer tool?
After confirming activation, it will go to the password Setup interface
set 6-digit numbers as your startup password information verification by Lonsdor
(5-30 minutes, you can check the progress by clicking “Refresh” )
re-enter the password to verify
get the notification that verification successful
the whole process before using the device is complete.
The most important note:
1. User name must be a workable email address so that you can receive the verification code from Lonsdor by email.
2. Please pay attention to the difference between the registration password (min 6 char) and the startup password(6-digit), the former will generally only be used when registration, so please commit the 6-digit startup password into memory, as this will be required every time when you start the device.
3. The account will be bound to the corresponding device for life, other accounts can not log in to your device and your account can not log in to a registered or activated device either. 4. An account can be used to bind multiple new devices.
Lonsdor K518ISE Customers Reviews:
So far I have tried on four vehicles, tried on an h system Toyota failed completely to talk to the car, tried on 2007 dodge ram would not talk
to it either, tried on BMW 2008 cas3++ would talk to car but can't read in id. woks beautiful on in prox. I also used it on 2018 BMW x5
it lost keys it did talk to the car giving key positions. car was too new, no key available walked away.
A must-have! At the moment it is the best handheld cloner, what you can get. With the JMD key expansion, it can save you with ease when you have to deal with VWs - even in AKL situations. It is not a wonder weapon, in practice, it needs time for calculations (sometimes 45 mins), but in the meantime, you can cut the key, also. Never tried with G-chips, so I can just tell ya that it is said to be working. Has built-in batteries, and you can always charge it from your car - an ideal tool to take with you. The special transponders are cheap enough to save you a lot of money compared to the RW4, and the main unit costs only $420, the JMD Key box around $250, and the G-chip authorization (if not included) $80, always with free shipping.
Customer 3:I have used Lonsdor to add key for BMW 525 2208 cas 3 by obd, it also can do cas 3+ by obd en cas 4 by eeprom.
