Launch X431 Pro Mini 3.0 Bi-Directional Bluetooth Diagnostic Scanner

Launch X431 Pro Mini 3.0 Bi-Directional Bluetooth Diagnostic Scanner

Our Launch X431 Pro Mini 3.0 Obd2 Scanner covers the ECU coding function which enables you to reprogram adaptive data for certain elements after repair or replacements. Combines guided functions/modification compatible with BMW, online coding cooperative with VW and Porsche, etc. Benz Compatible Seat, Fit & Shift, Offline Coding Features, Personalization / Personalization, For Vehicle Brands Around The World, And Keep Growing! Launch X431 Pro Mini is a new diagnostic tool announcement by Launch tech. It is formed of an X-431 PRO pad computer, a safety sleeve, a DBScar diagnostic connector, and various OBD1 to OBD2 connectors. It communicates with your car by DBSCAR connect with BlueTooth, it rendered car DTC and do diagnose purpose by the X431 Pro Pad computer, it provides X431 series full car model and full system diagnose role.

This LAUNCH X431 Pro mini automotive scanner highlights comprehensive diagnostics on all vehicle systems including engine, hookup, ABS, SRS, communication, chassis, etc. Provides the technician with a licensed diagnostic tool to detect existing and potential defects in the vehicle, help vehicle problems to be found and inscribed efficiently and accurately. It can displace X431 Diagun III or X431 IV. Meanwhile, taking benefit of mobile internet, it integrates more applications and services, such as creating maintenance databases and case libraries, providing instant maintenance information, placing public and private maintenance social circles, etc. As a result, it builds a broad vehicle diagnostic district, which helps you to share vehicle maintenance knowledge online, replace vehicle maintenance experience online, and provide vehicle maintenance-related service support online. This will be another revolution supported by Launch in the vehicle diagnosis industry.

Features:

• Connect the power adaptor to the USB port of the tool.
• Average working current About 85mA.
• The vehicle battery voltage should be 9-14V;
• You can set the screen lock as a pattern or password. If you forgot the password, please consult your device provider or reset your device.
•  Set a shorter standby time.

Specifications:

• Certification: CE
• Special Features: Wifi
• Software Version: NEWEST
• Hardware Version: NEWEST
• Item Type: Code Readers & Scan Tools
• Product name: X431 pro mini
• update year: 2 years free update
• Processor: Quad-core 1.3GHz
• Battery: 3000mhA
• Update method: One-click free update

Launch X431 Pro Mini Highlights:

1. Dealer Code: 755D (Register Device on Launch Official Website)
2. One Year Free Update Online (After one year, Update Cost 399USD/year, 599USD/two years.)
3. Bluetooth Distance: 10M (Without Obstacle)
4. It is a Global version, and NO IP limited. You can use it and update it everywhere around the world
5. Software One-Click Upgrade: Support online smart one-click upgrade for car software
6. Over 10000+ Car Supported: Support all ECUs of 12V EFI car models, covering more than one hundred car series and ten thousand car models, support fault detection for most Asian, European, American, and domestic car ECUs, to realize full car model and system fault diagnosis.
7. Powerful Diagnostics with 20 Special Functions: Launch X431 Pro mini provides full system diagnostic; Oil Reset Service/Steering Angle Calibration/ Electronic Parking Brake Reset/ Battery Register/ Battery Maintenance/ ABS Bleeding/ Electronic Throttle Position Reset/ Learn/ DPF Regeneration/ TPMS Reset/ Immobilizer Matching/ Fuel Injector Coding. Diagnostic operations including Auto Scan, Manual Scan, General Diagnosis, Service, Data Logging.
8. Multi-Languages Supported: English, French, Spanish, German, Russian, Japanese, Portuguese, Korean,  Italian,  Polish, Dutch, Hungarian, Finnish,
Simplified, Czech, Turkish, Greek, Arabic, Danish Persian, Romanian, Serbian, Swedish, Chinese Traditional.

What's the Advantage of Launch X431 Pro Mini?

1. [One Click Update]: Let's you update your diagnostic software more efficiently. To obtain better function and update service, advise you update the software regularly. Support one-click upgrade for operating system, clients, vehicle model software, and firmware.
2. [Connecting by Bluetooth] X431 pro communication via bluetooth, very easy to use.  X431 pro Pad computer specially designed for Android platform with clear and user-friendly interface. X431 pro Pad computer equipped with an exclusive X-431 V protection sleeve to prevent it from being damaged;
3. [EXTENSIVE VEHICLE COVERAGE]: This diagnostic tool LAUNCH X431 PROS MINI can work for more than 108 US, Asian and European vehicle makes and models, as well as 12V SUVs, minivans, light-duty trucks sold worldwide. The LAUNCH X431 PROS Mini kit includes 14 connectors for OBDII and other types of diagnostic standards for the EU and Asian car manufacturers.
4. [THE NEW UI INTERFACE]: Equipped with a 6.9-inch tablet computer, and based on the Android OS, the LAUNCH X431 PROS Mini gives you a new UI interface. Full-color HD display with touchscreen menus for accessing all the X431 testing components.
5. [SUPERIOR PERFORMANCE]: There are comprehensive sections with this Launch X431 scan tool for reading, clearing, saving, and printing diagnostic information. Perform active tests, run remote diagnostic tests, review the integral maintenance reference center (including videos), and access regular electrical system repair functions such as resetting the service lights, system calibrations, and much more.
6. [Actuation Test]: Active test is to test output elements. You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status. such as Temperature indicator, Brake,, and parking brake warning light...
7. [Remote Diagnosis]: This diagnostic code reader is built with the remote control function so you are capable of using the application to receive remote support from LAUNCH's support center, or your colleagues or friends while facing some tricky issues that can't be easily solved, through controlling your diagnostic tool on their smart devices remotely.



X431 Pro Mini Descriptions:

Launch X431 Pro Mini is a new diagnostic tool release by Launch tech. It is composed of an X-431 PRO pad computer, a protection sleeve, a DBScar diagnostic connector and many OBD1 to OBD2 connectors.
It communicates with your car by DBSCAR connect with Bluetooth, it read car DTC and do diagnose function by the X431 Pro Pad computer, it achieves X431 series full car model and full system diagnose function.
It can replace X431 Diagun III or X431 IV. Meanwhile, taking advantage of mobile internet, it integrates more application and services, such as creating maintenance database and case library, providing instant
maintenance information, establishing public and private maintenance social circles, etc.

As a result, it builds a broad vehicle diagnostic community, which helps you to share vehicle maintenance knowledge online, exchange vehicle maintenance experience online and provide vehicle maintenance-related service support online.
This will be another revolution raised by Launch in the vehicle diagnosis industry.

X-431 Pro Mini Functions:

1. All System Diagnostic
Besides classical 4 systems, you can use this diagnostic tool to diagnose your car in complete systems, such as Fuel system, Emission system, Body, Powertrain,, and more. You are capable of reading hard DTCs when there are some issues with your vehicle’s systems, clearing the trouble codes after handling malfunctions. To make sure all the systems performs well, you can view the live data stream before driving out.


2. Special functions:
Launch X-431 PRO MINI can program and code the electronic control system of prevailing vehicle models, also perform special functions, including:

Oil Reset: Close the oil service light and reset service mileage & service interval after replacing the engine oil
Injector Coding: Write the new injector numbers into the ECU for accurate communication and injection control
EPB Reset: Reset the new electronic parking brake for braking wheels safely again
SAS Reset: Clear memories of the previous steering angle sensor and store the replaced one
TPMS Service: Relearn TPMS sensors so that new sensors can be recognized by ECU
ABS Brake Bleeding: Get a firm brake pad after air exhaustion
BMS Service: Perform a reset on the vehicle battery for clearing the fault information and re-match the battery
DPF Service: Clear particulate matter from the DPF filter to stabilize the filter performances
Tooth Learning: Finish tooth learning after changing the crankshaft in the car engine, so the new part can be used
Throttle Matching: Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately
Anti-theft Matching: Disable the lost vehicle keys and write the key information into the replacement
The new reset function adds AFS/EGR/GEARBOX/SUSPENSION/SUNROOF RESET.

5 More Reset Functions
You can check the 5 reset functions in the car diagnostic software.
1. Air Suspension Reset
2. Gearbox Reset
3. Sunroof RESET
4. AFS Reset (Adaptive Front-lighting System)
5. EGR Reset



Car list of the 5 reset functions

Air Suspension Reset
Audi, Mercedes Benz, BMW, Citroen, Chrysler, Ford, GM(Cadillac, Chevrolet, GMC, Holden) Peugeot, Seat, Skoda, VW, ChangAnFord, DFCitroen, SGM, YQVW

Gearbox Reset
BMW, Mercedes Benz,Chrysler, Ford, GM(Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn), ChangAnFord, SGM(BUICK, CADILLAC, CHEVROLET, BUICK TRUCK), BYD, CHANGAN, Chery, Geat Wall, Geely

Sunroof RESET
Mercedes Benz, BMW, CHRYSLER, Cadillac

AFS Reset (Adaptive Front-lighting System)
AUDI, MERCEDES-BENZ, MG, CHRYSLER, GM(Cadillac, Chevrolet, GMC, Daewoo, Alphen, PONTIAC, Holden, OLDSMOBILE, BUICK, SATURN, GMC TRUCK, CHEVROLET TRUCK), OPEL, SEAT, SKODA, VW, SHVW, SGM(BUICK, CADILLAC, CHEVROLET, BUICK TRUCK), YQVW, BAIC, GREAT WALL, CHERY, CHANGAN, ROEWE, YQJC, ZOTYE

EGR Reset
MERCEDES-BENZ, BMW, CITROEN, Chevrolet, Daewoo, Holden, PEUGEOT, RENAULT, VOLVO

Notice: These reset functions support different models and years of the car. If you want to know more information, please contact seller.

3. Bi-Directional Control +Active Test + Adaptation+ Matching+ Reset + Initialization+Coding

ECU CODING: X431 PRO MINI features advanced ECU coding that many aftermarket diagnostic tools don't support. You can use it to activate a new ECU to work on some special vehicle without using expensive original equipment. It is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts.

BI-DIRECTIONAL SCANNER CONTROLS: A single directional scanner will only report to you fault codes and other anomalies with the car. A Bi-directional scanner also reports fault codes and anomalies from the car's ECU, and it can send commands to the car to activate different systems for testing. Hence the addition of 'bi' to the word bi-directional, meaning two-way communication between the scanner and the car's ECU.

REMOTE DIAGNOSIS: REMOTE DIAGNOSIS Not only users can launch the remote diagnosis with other diagnostic scanners of the LAUNCH family, which are equipped with this module as well, also they can ask for the remote control through phones, tablets, and computers, etc. It has realized the reality that a mechanic can diagnose an abnormal vehicle that is even thousands of miles away.

ACTIVE TEST: Figure out whether a specific subsystem or component in your car functions well or not by using LAUNCH X431 PRO MINI to make the tester outputs function instead of checking in ignition status.

Matching: Also known as an adaptive function, it can adjust the data of the actuator so that the data of the replaced actuator can be accepted and recorded by ECU. For example, when you clean the carbon deposit on the throttle, there is an engine idle jitter. That's because your throttle angle change data is not recognized by ECU, resulting in inconsistent data, and the engine can not work accurately. You can make a match with Launch x431 pro mini to synchronize ECU data with throttle data after cleaning.

Print Diagnostic report:



Launch Pro Mini Wide Vehicle Coverage

X431 PRO MINI supports all electronic control systems on& 12V EFI models, incl. more than 150 European, American and Asian models like Maserati, Ferrari,
Rolls Royce, Bentley, Mercedes Benz, BMW, Audi. Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese.
It achieves full car model and full system vehicle trouble diagnosis

X431 Pro Mini Software List

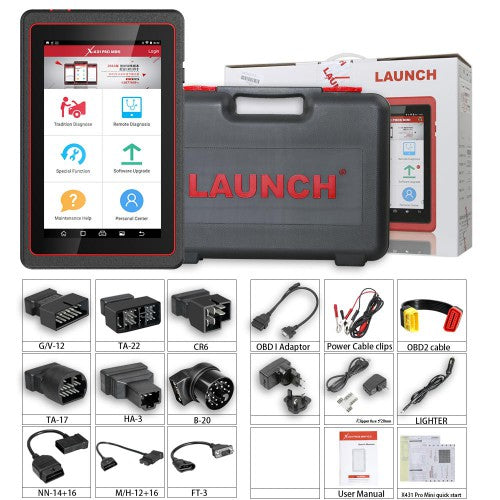

X-431 PRO MINI whole set: X-431 PRO MINI is mainly composed of an X-431 PRO MINI handset and a DBSCar II VCI module.

X431 Pro Mini Register and User Manual:

1. Register
Check X431 PRO MINI app and Create New Account.

2. Choose Language
Click "Setting" menu "Language & input" add demand language

3. Download Software
Go to the "Software Upgrade" center, choose brands software download.

4. Diagnose the Cars
Plug Bluetooth VCI tool to 16pin OBDII port and click car software start to diagnose work, please don't forget to unplug Bluetooth adapter after finish diagnose


Quick Guide on Launch Pro Mini

Charging & Turning on
1. Connect the power adaptor to the USB port of the tool
2. If the tool is being charged, a charging indicator displays. Once the indicator turns, charging is complete.
3. Pressing the POWER button will start the tool and enter the home screen.

Note:
On first use of the tool, or if the tool remains idle for a long period of time, there may be insufficient battery power to start the tool. Please charge for a minimum of 5 minutes before attempting to turn it on again. Please use the power adaptor included within the kit to charge the tool. No responsibility can be assumed for any damage or loss caused as a result of using any power adaptor other than the one supplied.

Wi-Fi Set up
PRO MINI tablet supports a Wi-Fi connection. To enable you to surf the Internet, REGISTER App, launch remote diagnosis and update the diagnostic software etc, please follow the steps below to configure the network:
1. On the home screen, tap "Settings" > Wi-Fi.
2. Slide the Wi-Fi switch to ON, the system starts searching for available Wi-Fi networks.
3. Select a wireless network. If the chosen network is open PRO MINI will connect automatically, if the selected network is encrypted, a network password will need to be entered.
4. When "Connected" appears, it indicates the tablet is properly connected to the Internet.

Preparation & Connection
1. Preparation
1). Switch the ignition on;
2). The vehicle battery voltage should be 9-14V;
3). Throttle should be in a closed position.

2. Locate vehicle's DLC socket
The DLC (Data Link Connector) provides standard 16 pins and is generally located on driver's side, about 12 inches away from the center of dashboard. See Figure DLC Location. If DLC is not equipped under dashboard, a label indicating its position will be g iven, for gear no DLC is found, please refer to Automobile Repair Manual.

3. Connection
Select the desired diagnostic connector according to the vehicle DLC type and then follow the steps below to proceed:
1. For vehicles equipped with a universal OBD-II diagnostic socket, plug the VCI module into the vehicle's DLC directly or use the OBD II extension cable to connect the VCI module and the DLC.
2. For vehicles not equipped with OBD-II management system, do the following:
1). Select the corresponding non-16pin connector.
2). Plug the non-16pin end of the connector into the DLC socket, then connect the other end to the OBD I adaptor, and then tighten the captive screws.
3). Connect the other end of the adaptor to the VCI module.
4). To supply power to OBD I adaptor from:

A. Battery Clamps Cable:
Connect one end of the battery clamps cable to the vehicle's battery, and the other end to the power jack of OBD I adaptor, or
B. Car Lighter Cable (optional):
Connect one end of the car lighter cable to vehicle's car lighter receptacle and the other end to the power jack of the OBD I adaptor.

X-431 PRO MINI Technical Parameters:

Operating system: Android 7.0
Processor :Quad core 1.3 GHz
Memory: 2GB
Storage: 32GB
LCD screen: 7 inch with a resolution of 1024x600 pixels
Camera :Front-facing 2MP camera + rear-facing 5MP camera

Battery :3.7V/3000mh rechargeable polymer lithium battery
Connectivity : Wi-Fi: WLAN 802.11b/g/n, Bluetooth: Bluetooth 4.1
Working temperature: 0¡æ ~ 50¡æ
Storage temperature: -10¡æ ~ 50¡æ

VCI module:

Working voltage 9 ~18V
Average working current About 85mA
Standby current About 55mA
Working temperature -10¡æ ~ 55¡æ
Storage temperature -20¡æ ~ 70¡æ
Relative humidity 20% ~ 90%

DBScar¢ó adapter parameters:

The brand-new DBScar¢ó adapter is small size and can be easily plugged into the handset to diagnose and matching, it tests car models stably, it supports
CAN diagnosis also USB data transfer.
Size: 69 × 40 × 18 mm
Operating voltage: 9V DC - 18V DC
Test voltage: DC12V
Typical power consumption: ≤2W
Bluetooth distance: 100 m
Connectivity: Bluetooth + wired
Operating temperature: -10¡æto 50¡æ
Red Indicator: Turns red when connected to power supply;
blue Indicator: Turns blue then wireless Bluetooth work;
USB work: Turns green when the connector is connected to the USB cable

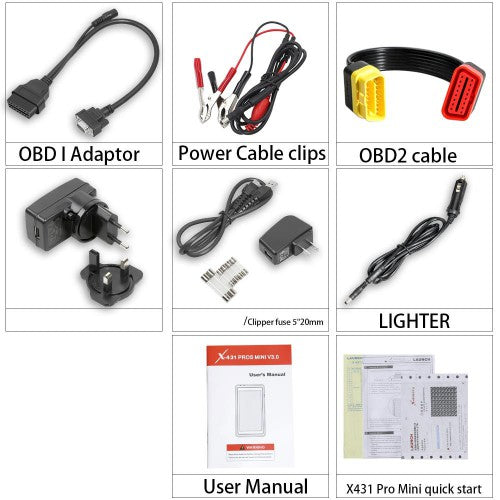

Package Includes:



Launch Mini Pro Review:

Review 1:
Unlike other tablet diagnostic tools in landscape, this is a portrait code reader which gives me a totally different user experience. And there is a carry strap on its back, it’s convenient to easily hold it. I’d like to wave my glow for it and recommend it to all of you who look for the capabilities.

Review 2:
Both the caption and the description say two years' free dates. Great price for this car diagnostic tool. So far I have used on my cars for injector replacement. Great functions.

Launch X431 Pro Mini-FAQ:

1. How to save power?
a) Please turn off the screen while X-431 PRO MINI keeps idle.
b) Set a shorter standby time.
c) Decrease the brightness of the screen.
d) If WLAN connection is not required, please turn it off.
e) Disable GPS function if GPS service is not in use.

2. What should I do in case I forgot the screen lock?
You can set the screen lock as a pattern or password. If you forgot the password, please consult your device provider or reset your device.
Warning: Resetting may cause data loss. Before use, please make sure important? data has been backed up.

3. How to do if the system runs slow?
In this case, please do the following:
> Check all running applications and stop the unnecessary applications (Steps: Settings -> Apps -> Running -> Tap the desired application and then tap "Stop").
> Check all installed applications, remove the unnecessary applications (Steps: Settings -> Apps -> Downloaded -> Tap the desired application and then tap "Uninstall").
If all steps mentioned above are finished and the system still works slowly.
Please try to close the system and reboot your X-431 PRO-MINI.

4. How to reset X-431 PRO MINI?
Resetting may cause data loss. Before doing so, please make sure important data and information have been backed up.
Do the following to reset X-431 PRO MINI:
1. Tap "Settings" -> "Back & Reset"
2. Tap "Factory data reset"
3. Tap "Reset tablet"
4. Tap "Clear all data" to start resetting until the tool automatically reboots.

5. Why some videos on the website can be not played?
It possibly results from:
1). The current browser does not support Flash playing;
2). Flash player does not support this video.
Try to use other browsers to watch it or install another Flash players.

6. The date and time of X-431 PRO MINI cannot be set.
It is because Automatic date & time is set on your X-431 PRO MINI. Tap"Settings" -> "Date & time", deselect "Automatic date & time" and then set the date and time manually. Since the diagnostic reports are saved and sorted by date, please make sure the system date and time is properly configured on this tool.

7 :How to handle when you encounter "Insufficient storage space"?
If this happens while downloading the diagnostic software, please proceed as follows:
1. Get your X-431 PRO-MINI username and password ready. If you forgot the password, please dial our hotline to retrieve it with the product serial number 98539*******.
2. Reset the X-431 PRO MINI to the default factory settings (For details, please refer to Item 5 in this Chapter).
3. Tap "Settings" --> "WLAN", choose the desired WLAN network to connect.
4. Open the browser and visit www.dbscar.com to download and install the latest App.
5. After the installation is complete, launch the application and log in with your username and password.
6. Tap -->"Update" to download the diagnostic software.
Note: For new App, the software structure and storage space occupied by the vehicle softwares have been optimized so as to avoid the occurrence of insufficient storage.
