Launch X431 HD3 Ultimate Heavy Duty Truck Diagnostic Adapter
Our Launch X431 V Plus + X431 rugged module, permitting you to test gasoline vehicles and trucks with 12V or 24V batteries, and trucks with diesel engines. When inquiring about a 24V truck, no battery conversion is needed. Compatible with 68 brands and more than 220 models from America, Europe, Asia. It accepts Android 9.0 to accommodate you with an easy-to-use interface that has powerful features, fast auto scan and vehicle diagnostics, and a suggestion screen user interface that is simple to learn. This model has a higher hardware configuration, greater storage capacity, faster processor, latest display technology (10-inch capacitive touchscreen), and a larger battery for longer practice time between recharges.
The X-431 Heavy-duty Truck Module is a new generation heavy-duty truck error diagnostic tool represented by Launch Tech regarding internet engaging on the support of Android OS. It transfers with X-431 PRO3/X-431PAD II through Bluetooth to achieve fault diagnosis for several car models and full systems. Advantages involve wide car model coverage, powerful test function, more particular functions, and specific test data, etc.
- Release new software version timely to let customers enjoy the latest service
- Able to test truck with 12V or 24V battery diesel engine. When testing 24V truck, battery conversion is not required
- Diagnostic hardware is designed according to international standards, compatible with diagnostic interfaces of worldwide models
- Including wide-range connector and cable
- Wide diagnostic software coverage. Accurate test data. Software-based on Android, matching with more diagnostic hosts.
External Testing Certification: CE
Model Name: SP293-B
Hardware Version: Launch X431 HD3
Material Type: plastic
Item Type: Car Diagnostic Cables and Connectors
Item Weight: 7.5kg
Features: Heavy Duty Truck Diagnostic
1. One Year Free Update Online on Launch Official Website
2. Multi-Language Supported: English, German, French, Spanish, Italian, Chinese, Japanese, Russian
3. IP65 Protection, and with shockproof case

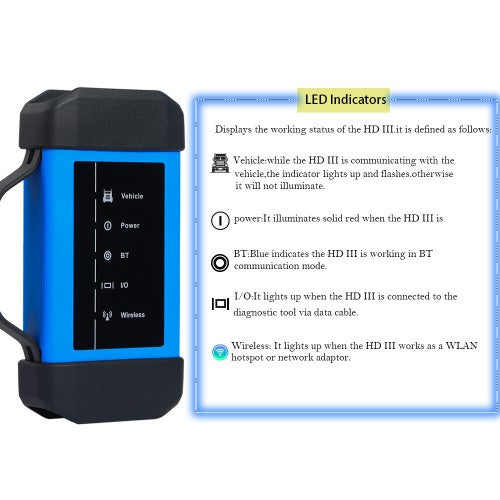

4. indicators Showing The Status of The Connection in Real-Time
5. Wireless Bluetooth Diagnosis: Host machine and diagnostic connector adopt Bluetooth connection, making diagnosis more convenient.
6. Support Various Car Models: 36 Brands of Foreign Trucks with The Possibility of Expanding the Supported Brands
7. Industrial Shockproof Design: Industrial shockproof design is perfect for the working environment in repair shops.
Kindly attention: it can not work on X431 PAD5/X431 V 8 inch
The HD module must work on any of the x431 v plus or pro3 or pad ii accounts that old customers have purchased before and have been activated by LAUNCH already. If not have the x431 v plus or pro3 or pad ii account, this HD module alone cannot be activated and the diagnostic software cannot be downloaded from the LAUNCH official website. Thank you for your understanding
X-431 Heavy-duty Truck Module is a new generation heavy-duty truck fault diagnostic tool developed by Launch Tech regarding internet applications based on Android OS. It communicates with X-431 PRO3/X-431PAD II through Bluetooth to achieve fault diagnosis for various car models and full systems. Advantages include wide car model coverage, powerful test function, more special functions,, and accurate test data, etc.
With this device,, you test heavy equipment at 12 / 24V. Connections via USB and Bluetooth. The package also includes the necessary additional adapters.
The new LAUNCH heavy-duty module is perfect for a shop that works on heavy-duty (Class 4 through 8) and medium trucks.
Moreover, this module can work with the X-431 PAD II, PAD III, PAD V,, and the new Superior PAD III, to expand the diagnosis of the HD vehicle and can diagnose both 12V & 24V vehicles.
Launch X431 HD3 Functions:
Identification of control units
Adaptation of control units
Reset service intervals
Reading vehicle data streams
Display of current system parameters
Reading and erasing vehicle fault codes
36 brands of foreign trucks with the possibility of expanding the supported brands
indicators showing the status of the connection in real-time
Powerful special functions:
Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
Communicates with ABS & Transmissions from Bendix, Wabco,, and Allison
Tech to Tech remote communication function
1. Full comprehensive HD truck diagnostic software functions
2. Wide diagnostic software coverage (Full comprehensive diagnostic software functions.)
3. Accurate test data
4. Release new software version timely to let customers enjoy the latest service
5. Able to test truck with 12V or 24V battery diesel engine. When testing 24V truck, battery conversion is not required
6. Diagnostic hardware is designed according to international standards, compatible with diagnostic interfaces of worldwide models
7. Including wide-range connector and cable
8. Wide diagnostic software coverage. Accurate test data. Software-based on Android, matching with more diagnostic hosts.
9. Various configurations are available for selection Suppose you are going to purchase a heavy-duty truck diagnostic tool, you must choose X-431 V+, X-431 PRO3, or X-431 PAD II as the host machine. If you have already bought X-431 V+, X-431 PRO3, or X-431 PAD II gasoline configuration, now you want to test the truck, just buy a heavy-duty truck module.
Suheavy-dutyavy-duty vehicle list:
10" High resolution IPS capacitive touch screen

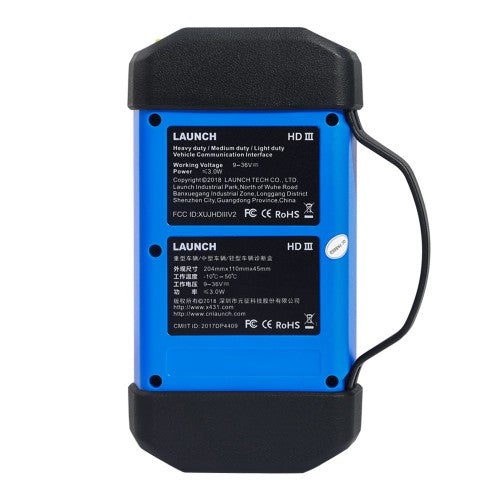

Woking Voltage: 9-36V
Power Consumption: ≤3.0W
Working Temperature: -10¡æ~50¡æ
Communication: USB/ Bluetooth/ Wi-Fi
Activate HD III & Download Software:
If you had a diagnostic tool of 12V passenger car configuration and intend to extend the diagnostics of commercial vehicles, follow the steps described below to activate the HD III:
Note: Please make sure that the diagnostic tool is properly connected to the Internet before proceeding with this step.
1. Launch the application, and log in to the system using the existing user account of Passenger Vehicle Configuration, and then tap "Personal Center (or )" setting icon-Profile> “Activate VCI (or "Activate Connector )".
2. Input the Product S/N and Activation Code, which can be found in the supplied Password Envelope, then tap "Activate" to activate the HD III.
3. Tap "Update" to enter the update center, tap "Update" to download and install the diagnostic software of Commercial vehicles.
4. After the software download is complete, a new "Heavy-duty" tab will appear on the Diagnostic main menu screen.
Toggle Between Passenger and Commercial Vehicles:
If several VCI connectors and HD III devices are activated on the diagnostic tool, a list of connectors will be displayed in the "VCI (or "My Connector"), which can be accessed by tapping "Personal Center (or ) Profile".
*Switch from a passenger car to a commercial vehicle
If you want to switch from a passenger car to a commercial vehicle, enter "VCI (or "My Connector") -> select the HD III S/N (starting with 98649) -> Return to the diagnostic main menu -> connect the HD III, diagnostic tool and vehicle -> tap "Heavy-duty" tab to select the corresponding vehicle model -> to follow the on-screen prompts to start a diagnostic session
*Switch from a commercial vehicle to a passenger car
To switch from a commercial vehicle to a passenger car, enter "VCI (or "My Connector") -> select the VCI connector S/N -> Return to the diagnostic main menu -> to connect the VCI connector, scan tool, and vehicle -> Use VINScan (or manual diagnosis) to start diagnosis.

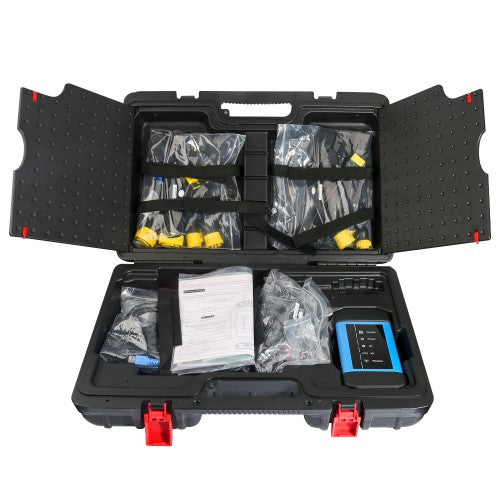

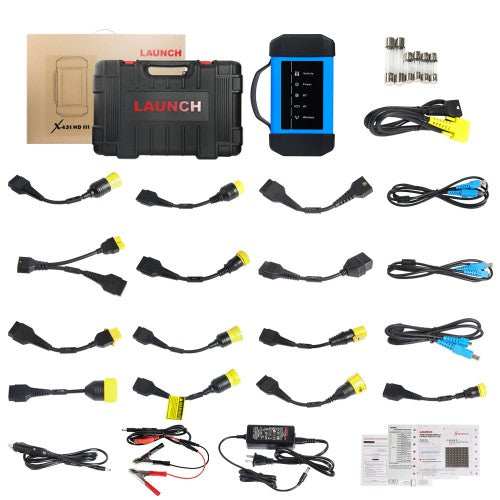

1pc x X-431 HD Module
1pc x Quick Start Guide
1set x Diagnostic Cables
1set x USB Cables
1pc x Cigarette Lighter

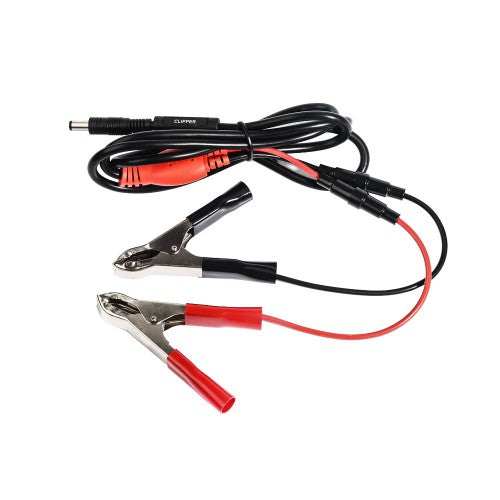

1pc x Battery Clamps Cable
1pc x Adaptor Cable Kitt

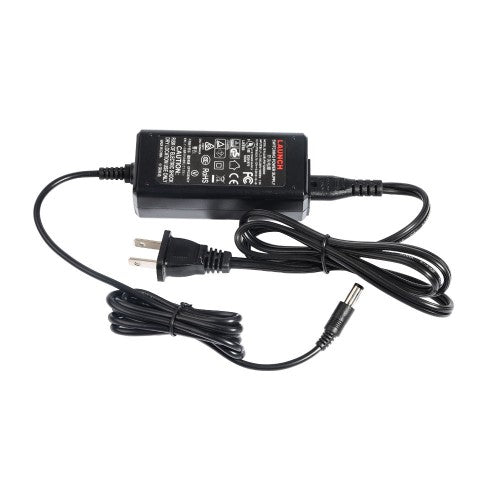

1pc x Power Adapter
1pc x Password envelope
