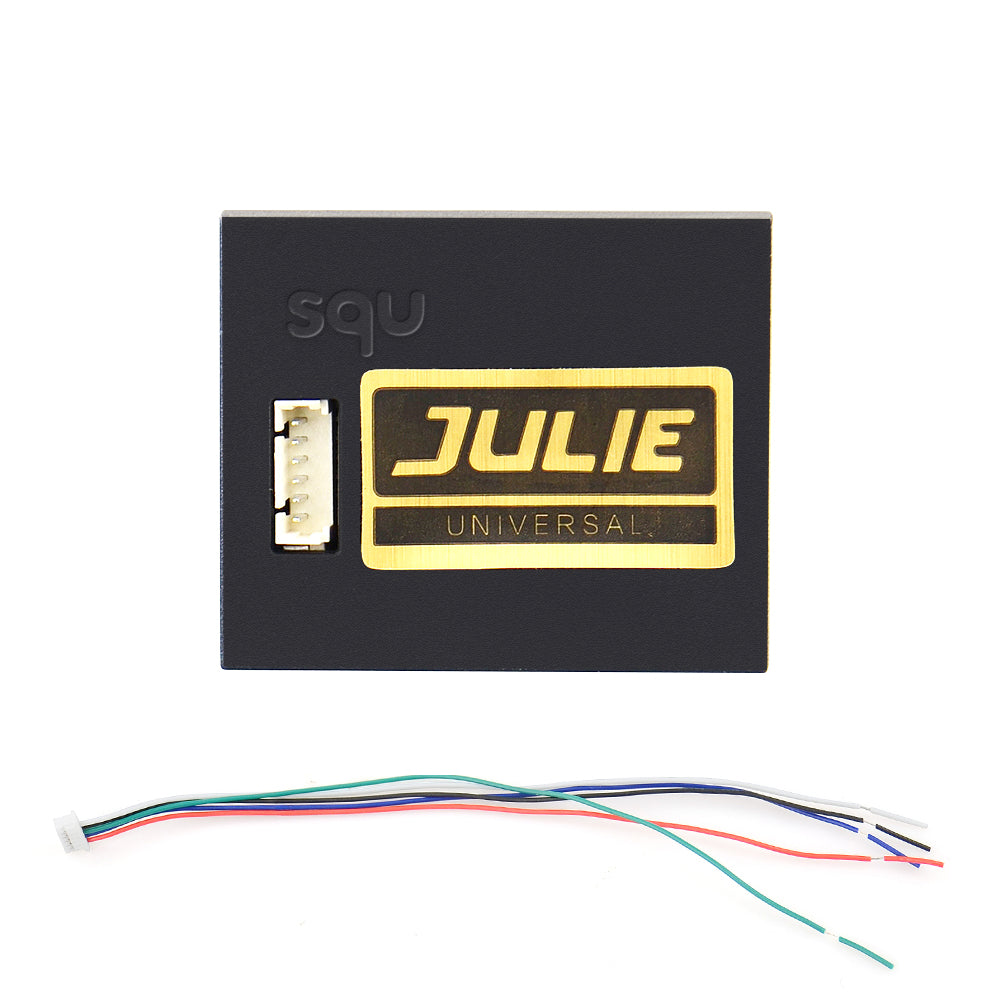

Julie Universal IMMO Emulator SQU OF68 Car Emulator Julie SQU OF80 Signal Reset Program Diagnostic Seat Ocuupancy Sensor Tool

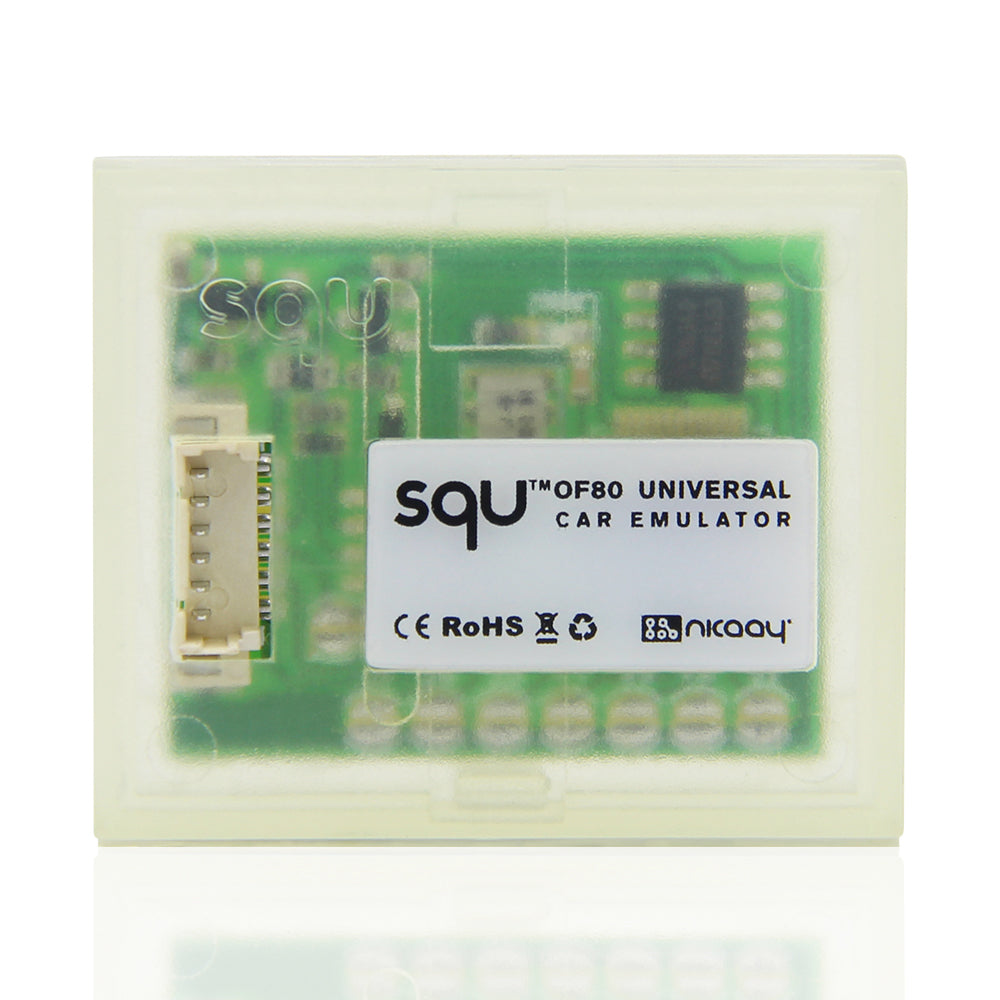

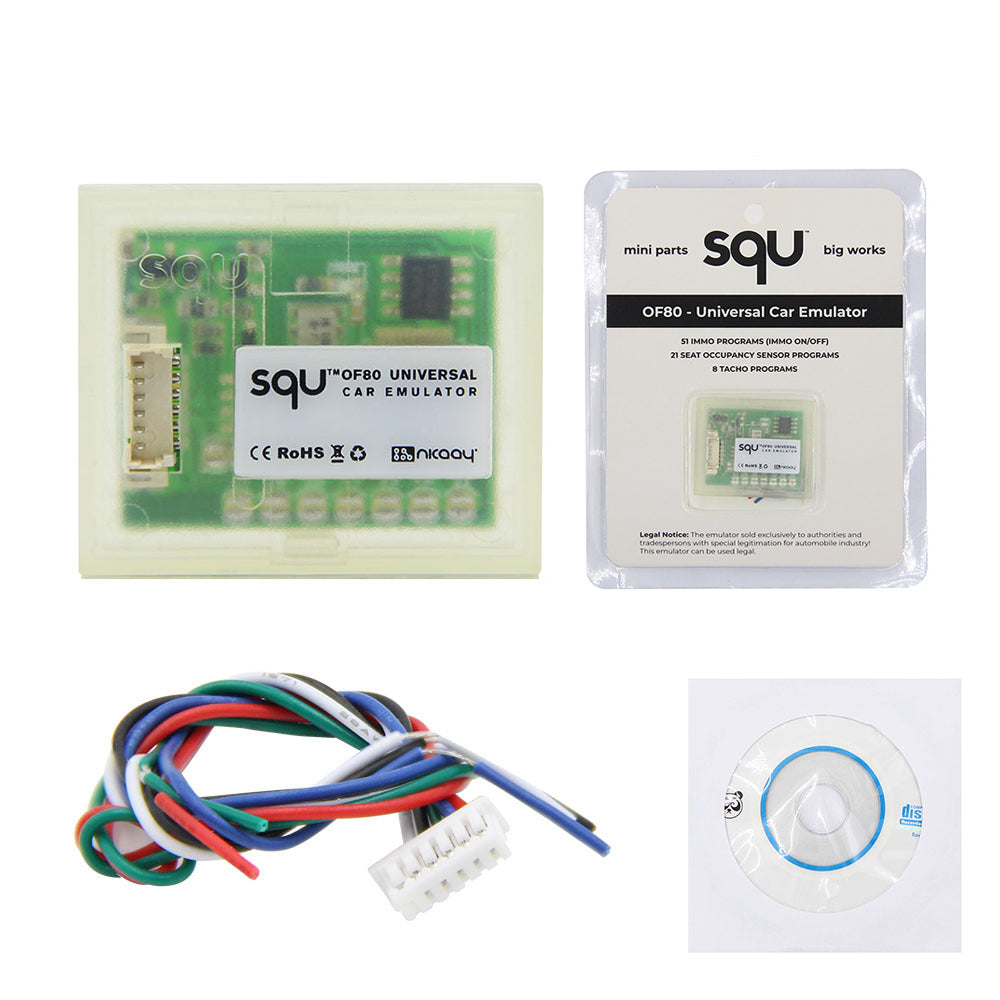

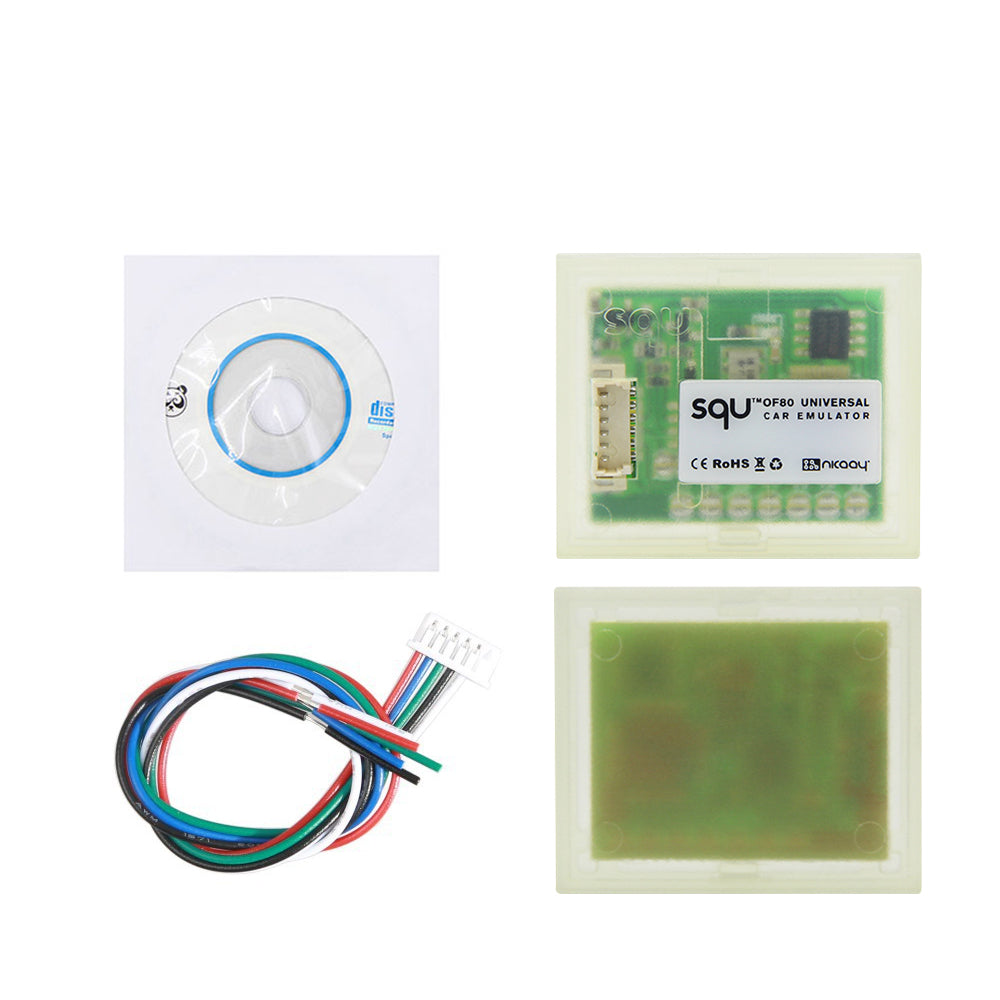

SQU OF80/68 Universal Car Emulator Mini Parts Big Works

1:51/42IMMO PROGRAMS(IMMO ON/OFF)

2:21/13SEAT OCCUPANCY SENSOR PROGRAMS

3: 8 TACHO PROGRAMS

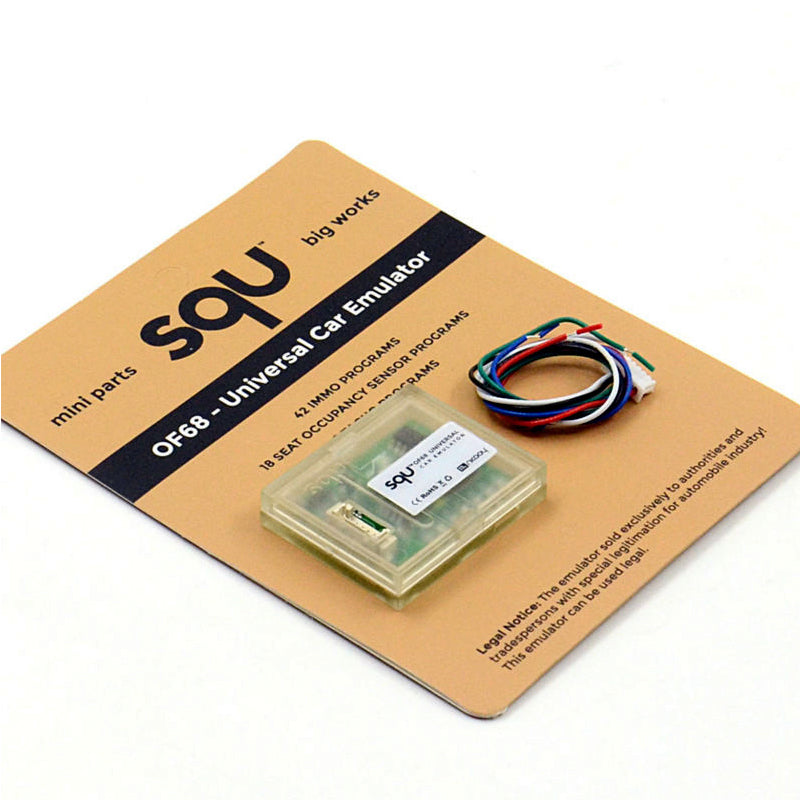

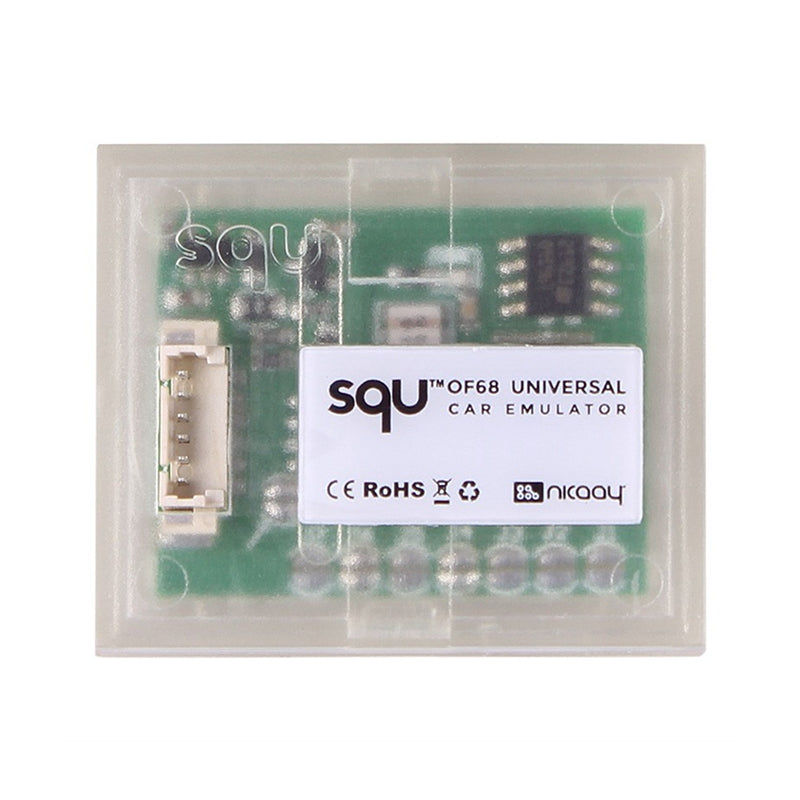

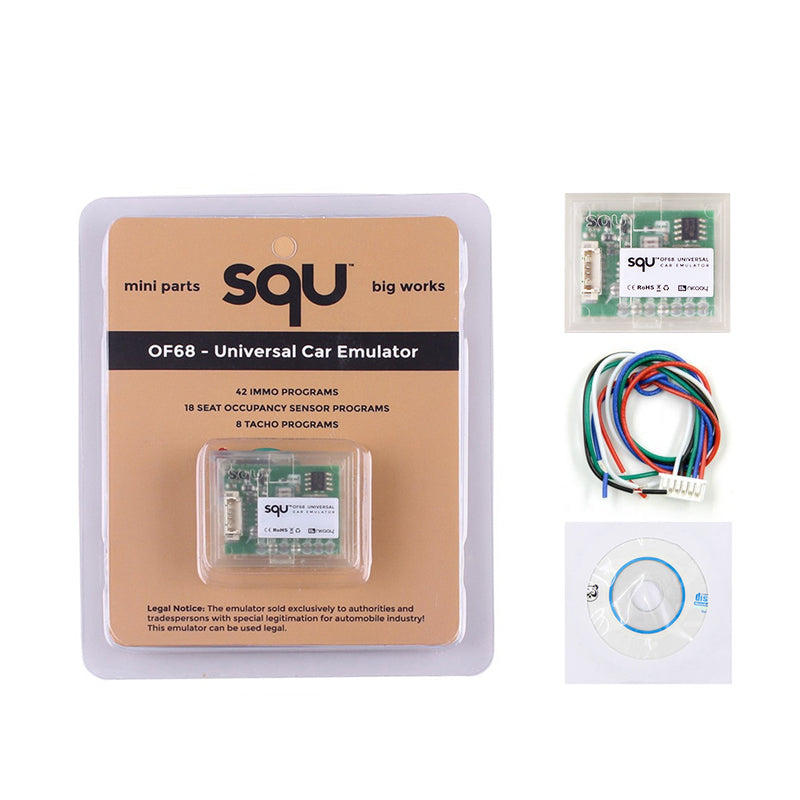

The SQU OF68 Universal car emulator allows you to:
remove the original immobiliser signal
replace the original immobiliser signal
replace the ESL, enabling the car to start
check the EZS on the table
check the correctness of the airbag system
start the tacho on the table



The SQU OF68 emulator includes 68 programs dedicated to hundreds of car models and types of ECU.
You can choose from:
immo programs
seat occupancy sensor programs
tacho programs
The vast majority of programs can be used multiple times.
Program selection is effected by soldering jumpers from J1 to J7. To connect the emulator, please refer to specific installation manual.
Immo programs
1. VW automatic immo OFF (single use)
2. VW automatic immo ON (single use)
3. VW without CAN
4. VW - Hitachi
5. VW - Valve Code
6. VW EDC15 immo OFF (single use)
7. VW EDC15 immo ON (single use)
8. VW EDC16 K-LINE immo OFF (single use)
9. VW EDC16 K-LINE immo ON (single use)
10. VW EDC16 with CAN 1.9 2.0 TDI immo OFF (single use)
11. VW EDC16 with CAN 1.9 2.0 TDI immo ON (single use)
12. VW EDC16 with CAN 2.7 3.0 TDI immo OFF (single use)
13. VW EDC16 with CAN 2.7 3.0 TDI immo ON (single use)
14. VW ME7 immo OFF (single use)
15. VW ME7 immo ON (single use)
16. BMW EWS II and EWS III 3.2 systems
17. Chrysler
18. Citroen, Peugeot with CAN
19. Daewoo 1
20. Daewoo 2
21. Fiat without CAN
22. Fiat with CAN
23. FSO Polonez
24. Honda
25. Kia Sportage 2.0TD
26. Mercedes CR without CAN Infrared
27. Mercedes CR1 with CAN WSP
28. Mercedes CR1 with CAN EZS
29. Mercedes CR1 with CAN infrared
30. Mercedes CR2 with CAN WSP
31. Mercedes ESL - steering wheel column lock emulator
32. Mercedes ESL2 - steering wheel column lock emulator
33. Nissan NATS 4 and 5 32.
34. Opel immo with HC05
35. Renault with CAN
36. Renault without CAN
37. Renault without CAN old ECUs
38. Suzuki with X24C01 memory
39. Suzuki with OKI memory
40. Suzuki 93C56 memory
41. TMS 374 - Citroen, Peugeot, Renault
42. Yamaha

Seat accupancy sensor programs
1: BMW Europe from 2007 to 2010 Models: E60, E63, E64, E65, E70, E71, E81, E90, E92, E93 without installed child seat
2:Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 without installed child seat
3:Mercedes: E-class W211 from 2002 to 2004 with Temic airbag controller, S-class W220 from 2003 to 2005 with installed child seat
4:Mercedes: A-class W168 from 1997 to 2001, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator without installed child seat
5:Mercedes: A-class W168 from 1997 to 2001-class W168, C-class W202 from 1999 to 2001, Vito W638 up to 2003, ML 1999 with TRW airbag controller, E-class W210 up to 1999, before lifting with airbag OFF indicator with installed child seat
6:Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo without installed child seat
7:Mercedes: E-class W210 from 1999 to 2003 with airbag OFF indicator after lifting, Vito W639 from 2002 to 2005, ML W163 from the year 2000, A-class W168 from 2002 to 2005, S-class W220 from 2000 to 2003, C-class W203 up to 2005, CLK W209, Vaneo with installed child seat
8:BMW from 1997 to 2007 , Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90 . without installed child seat
9:BMW from 1997 to 2007 . Models from 1997 to 2003: E31, E36, E38, E39, E46, E53
Models from 2003 to 2007: E60, E63, E65, E87, E90 . with installed child seat
10:Mini Cooper from 2002 to 2005 without installed child seat
11:Mini Cooper from 2002 to 2005 with installed child seat
12:Mazda: Premacy, MX-5, 626, 323, 6 without installed child seat
13:Mazda: Premacy, MX-5, 626, 323, 6 with installed child seat

Tacho Programs
1. Audi Q7 and A6
2. Citroen C4 Picasso
3. EMF Display
4. Renault Kangoo 3 Display
5. Renault Scenc II, Espace IV Tacho
6. Renault Scenic Full
7. Renault Scenic III + Navi
8. VW Passat B6

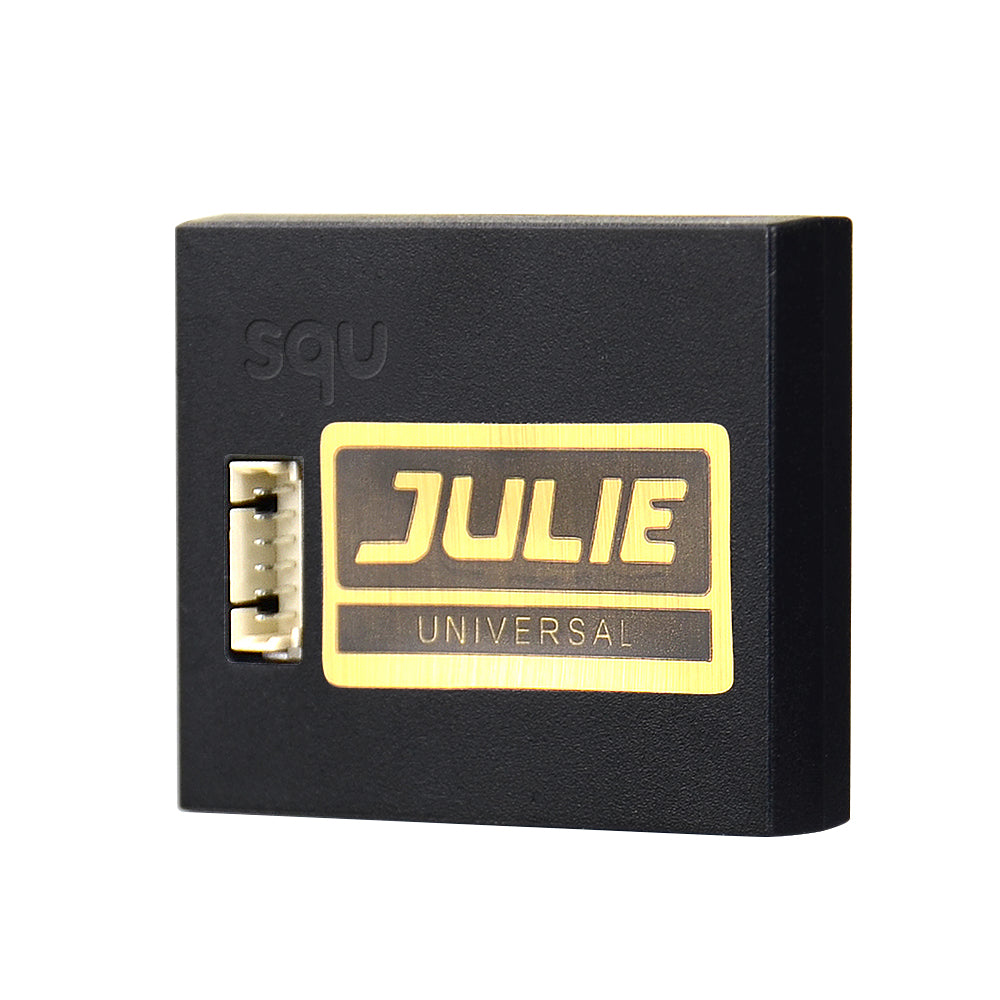

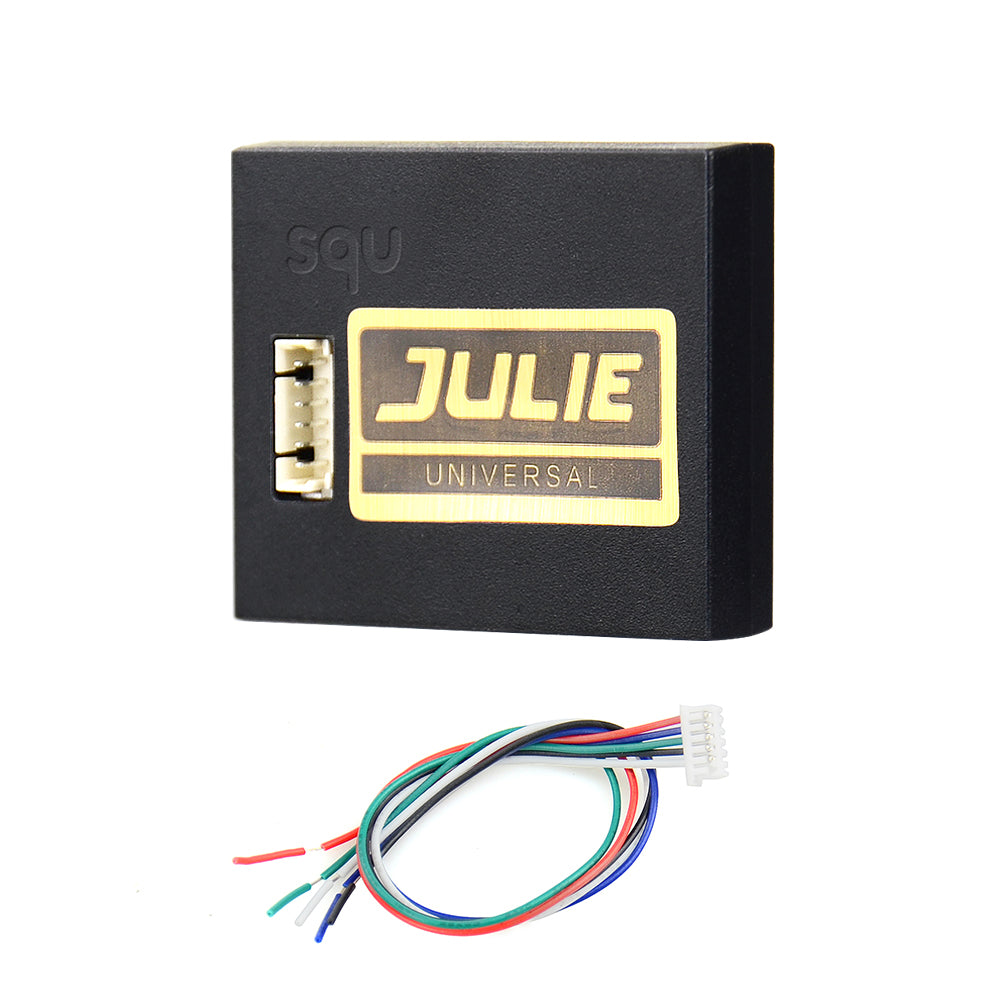

JULIE Emulator New Universal IMMO Emulator

Note: The product does not include instructions, please don't purchase it if you don't know how to use .

Applicable to:



For Audi, for BMW, for Chrysler, for Citroen, for Daewoo, for Fiat, for Honda, for KIA, for Mazda, for Mercedes, for



Mini Cooper, for Nissan, for Opel, for Peugeot, for Renault, for Seat, for Suzuki, for VW, for Yamaha



If use this Emulator for Can-Bus cars, you need solder an 120Ohm resistance on the PCB



JULIE Emulator New Universal IMMO Emulator Function:

1. For VW automatic immo OFF

Programs no. 1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.

Attention! Selection of programs no.1 and 2 eliminates the possibility to use the remainder of the programs from 6 to 15.



2. For VW automatic immo ON

Programs no. 1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.



Attention! Selection of programs no.1 and 2 eliminates the possibility to use the remainder of the programs from 6 to 15.



3. For VW without CAN

Audi, Seat, Skoda, Volkswagen

W1 and W2 systems up to around 2001. EDC15 and 5-socket LT28/LT35 ECUs - when the chassis numbers are not entered - even up to 2006. Diesel and petrol Ford cars with VW systems (the VW symbol is visible on the ECU).



4. For VW - Hitachi

Audi, Seat, Skoda, Volkswagen It is suitable for VAG group cars with Hitachi ECU to about 1997.



5. For VW - Valve Code

Audi, Seat, Skoda, Volkswagen To unlock the valve code on injection pump in vehicles VW 1.9 Diesel.



6. For VW EDC15 immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:

Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006,and even 2008 (except for Audi with coded pump) ,



Suitable for vehicles with 2-socket ECUs.



7. For VW EDC15 immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:

Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006,and even 2008 (except for Audi with coded pump),



Suitable for vehicles with 2-socket ECUs.



8. For VW EDC16 K-LINE immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:

Suitable for vehicles with 2-socket ECUs

0 281 011 XXX

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

0 281 015 XXX

Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI



9. For VW EDC16 K-LINE immo ON (single use) Audi, Seat, Skoda, Volkswagen Use:

Suitable for vehicles with 2-socket ECUs

0 281 011 XXX

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

0 281 015 XXX

Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI



10. For VW EDC16 with CAN 1.9 2.0 TDI immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:



Suitable for vehicles with 2-socket ECUs 0 281 012 XXX



11. For VW EDC16 with CAN 1.9 2.0 TDI immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:



Suitable for vehicles with 2-socket ECUs 0 281 012 XXX



12. For VW EDC16 with CAN 2.7 3.0 TDI immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:



Suitable for vehicles with 2-socket ECUs



0 281 012 XXX

0 281 013 XXX

0 281 014 XXX



13. For VW EDC16 with CAN 2.7 3.0 TDI immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:



Suitable for vehicles with 2-socket ECUs

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX



14. For VW ME7 immo OFF (single use) for Audi, for Seat, for Skoda, for Volkswagen Use:



Suitable for vehicles with ME7 Bo-sch ECUs

Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2

Production year: from 1999 to 2008



15. For VW ME7 immo ON (single use) for Audi, for Seat, for Skoda, for Volkswagen

Use: Suitable for vehicles with ME7 Bo-sch ECUs

Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2

Production year: from 1999 to 2008



16. For Chrysler

Use:

- For  Chrysler Voyager 2.5TD 1999-2001

- For  Dodge Caravan 2.5TD 1999-2001

- For  Jeep Cherokee 2.5TD 1999-2001



17. For  Citroen, For Peugeot with CAN

Use: EDC16 1.4 1.6 HDI with CAN

EDC15 HDI with CAN



18. For Daewoo 1

Use:

ECU with 2 white - red sockets

ECU with a blue socket



19.For Daewoo 2

Use:

Matiz SIEMENS, KEMSCO ECU

Tacuma KEMSCO ECU

Lanos 1.4 OHC hybrid ECU

Kalos SIRIUS D42 1.2 ECU

Chevrolet Aveo 4R ECU 1.2 8V



20. For Fiat without CAN

Use:

For Fiat, for Citroen, for Peugeot diesel without CAN 2-socket ECU

For Alfa, for Lancia, for Fiat 1.9 Jtd 2.4 Jtd 5-socket ECU

IAW49F for Fiat Bravo 1.6 16V

IAW 4AF Fiat Seicento, Panda 1.1 8V

For Lancia Kappa 2.0i 16V Turbo 0 261 203 792

For Lancia Kappa 2.0i 20V 0 261 203 670

For Lancia Kappa 2.4i 16V 0 261 203

For Lancia Kappa 3.0i 24V 0 261 203 482



21. For Fiat with CAN

ECU 5SF and 6F3



22. For Honda

Use: For Honda Accord, CRV, Civic and other (production year 1999-2002)



23. For Kia Sportage 2.0TD

For Kia Sportage 2.0 TD ECU ZEXEL immo with remote control



24. For Mercedes CR without CAN Infrared

Use: INFRARED IMMO

12-pin module + 2-pin CAN but only L connected (there is no CAN H) green and red LEDs flash in the mirror.

2.2 Diesel 1-socket Lucas

1.8 2.0 2.3 petrol hybrid SIEMENS ECU

2.0 petrol hybrid B0SCH ECU



25. For Mercedes CR1 with CAN WSP

Vito 2.2 Cdi 5-socket ECU

A-class 1.7 Cdi 5-socket ECU

EDC 1-socket ECU



2.5TD 2.9TD 3.0TD with mechanical and electronic ignition switch

B0sch ECU with HC11E9

E-class 4- socket Lucas with mechanical and electronic ignition switch

A-Class VDO MSM ECU

1.4 1.6 1.9 gasoline

26. For Mercedes CR1 with CAN EZS

2-socket (white) VDO ECU with 24c02 memory



27. For Mercedes CR1 with CAN infrared

2-socket (black) VDO ECU with X24C01 memory

2-socket (yellow) VDO ECU with X24C02 memory

2-socket Bos-ch ECU with B58 (24LC02) memory</
