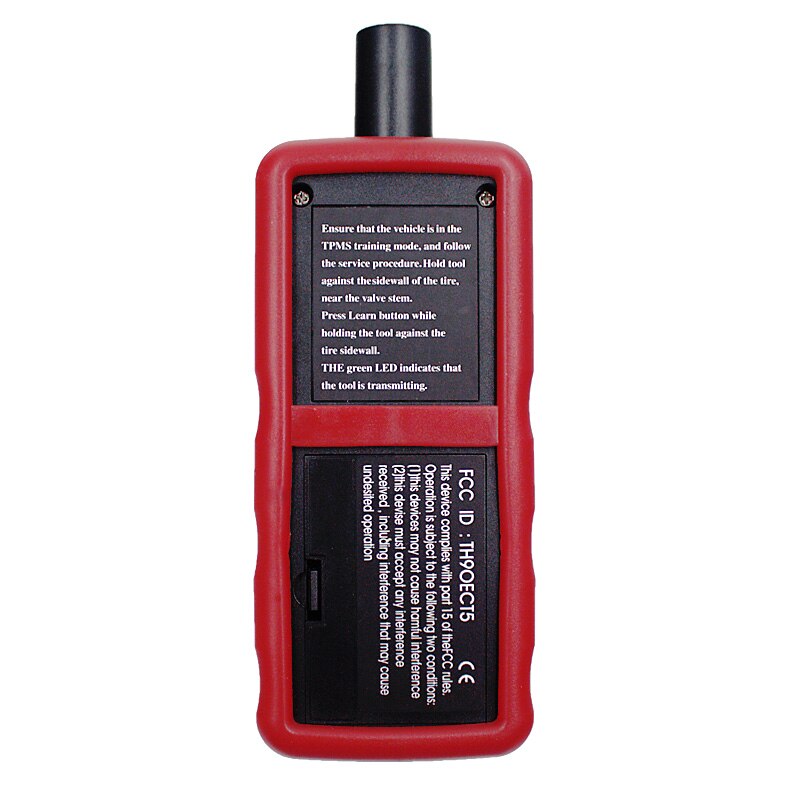

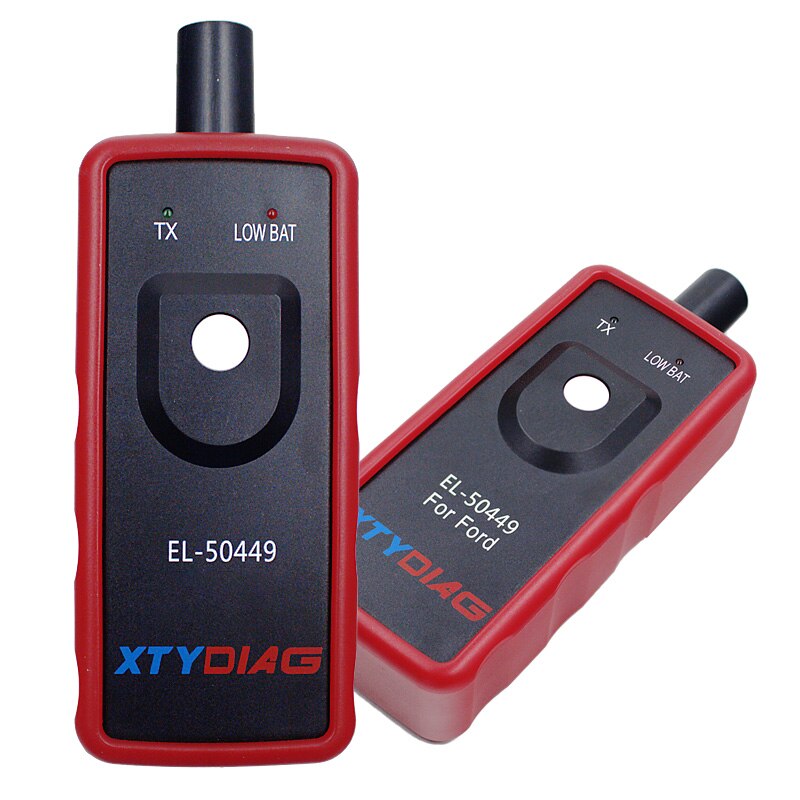

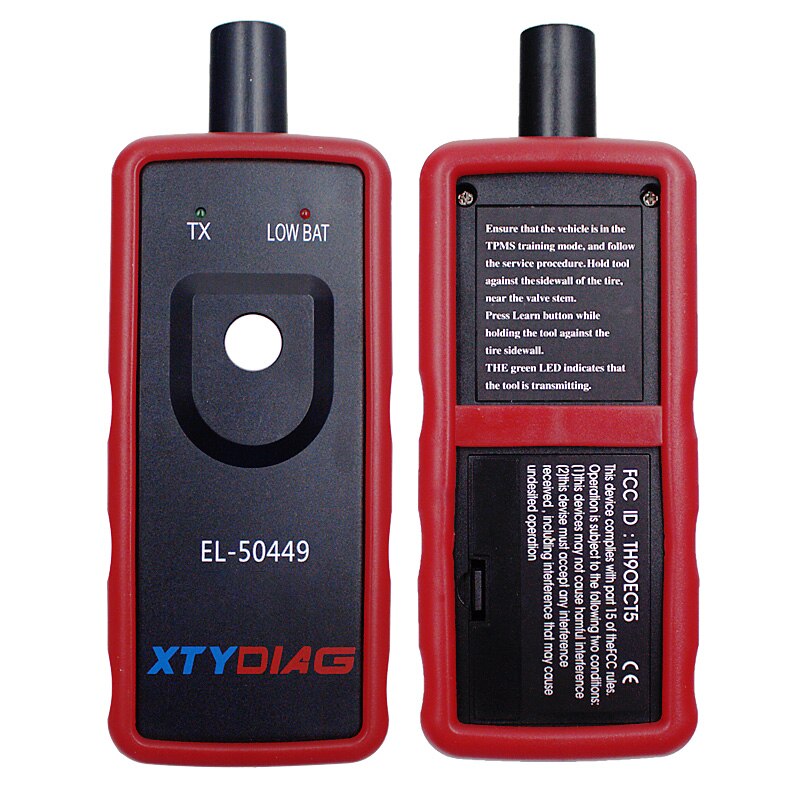

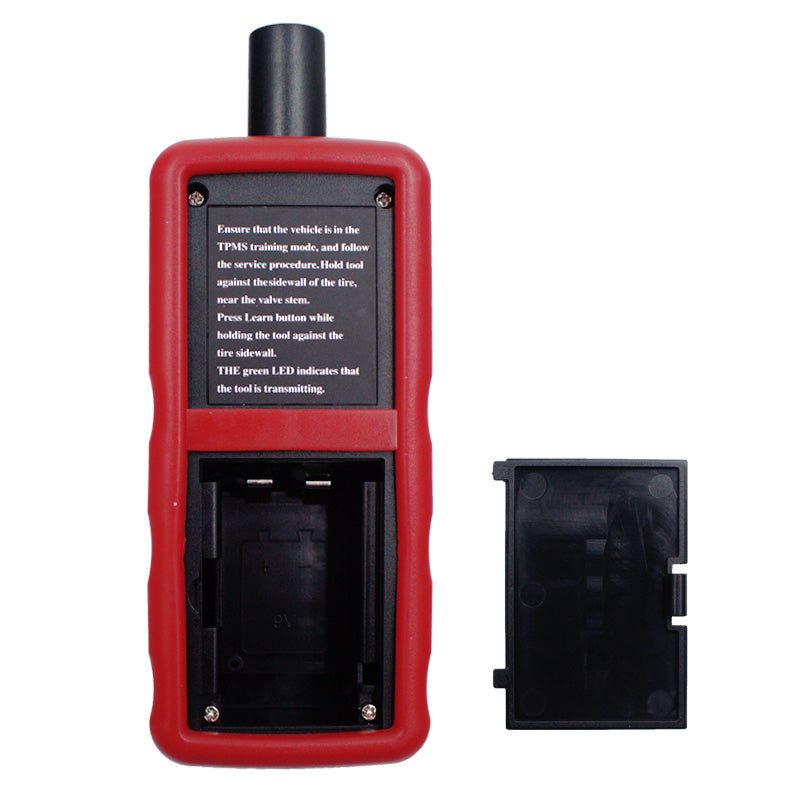

EL-50449 Ford Auto Tire Pressure Monitor Sensor
EL-50449 Description:
Most of For G.M vehicles equipped with a 315 or 433 MHz (TPMS) Tire Pressure Monitoring system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using EL-50448 special tire pressure tool. EL-50448 works on 2014 For G.M models too.
Using Tips:
The tire pressure sensor on models in and after 2012 can be read, only with some specified diagnostic tools. Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and use the following methods to read the tire pressure sensor. After replacing a tire or wheel speed sensor.
Please refer to the specific methods as follows:
(1)Set the vehicle into the tire pressure training mode (plug the key, step on the parking brake, the car keys from the off to open 3 times, and then step on the parking brake, turn off the car keys, and then from the off to open three times; Training mode for the vehicle to start the state of the three consecutive dangerous alarm flash), if you hear the speaker sounded that the training mode has been enabled;
(2)Starting from the left front tire, the antenna of the dedicated tool for tire pressure monitoring is facing upwards against the tire sidewall near the rim of the valve stem to start the antenna. Press and release the start button and wait for the speaker to emit a chirp. Once the speaker is chirping, the sensor information is read and the turn signal to be read at the next position will light;
(3)When the speaker is ringing and the right front turn signal light is on, the remaining three sensors repeat step (2) in the following order: 3.1. Right before 3.2. Right rear 3.3.Left rear;
(4) When the left rear sensor has been read and the speaker is also issued twice, the read process is completed and the body control module also exits the read mode
Supported Vehicle List (As Reference):
2007-2014
forFord
F-150
2008-2015
forFord
F-250 F-350
F-450
F-550
Super Duty
2007-2015
forFord
Mustang
2007-2014
forFord
Edge
2006-2015
forFord
Escape
2008-2015
forFord
Expedition
2006-2016
forFord
Explorer
2008-2015
forFord
Flex
2008-2015
forFord
Taurus
2008-2015
forFord
E-150 E-250
E-350
E-450
Econoline
Vans
2008-2015
forFord
Fiesta
2008-2015
forFord
Focus
2008-2015
forFord
Fusion
2008-2011
forFord
Crown Victoria
2011-2015
forFord
Transit Connect
2006-2011
forFord
Ranger
2007-2015
forLincoln
MKX
2007-2015
forLincoln
MKT
2008-2015
forLincoln
MKZ
2008-2015
forLincoln
MKS
2006-2010 fo Mercury Mountaineer
2006-2010 for Mercury Monterey
2006-2011 for Mercury Mariner
2006-2011 for Mercuy Grand Marquis
2006-2011 for Mercuy Grand Marquis
2006-2011 for Mercury Milan
Package List:
