CAR FANS C800+ Heavy Duty Diagnostic Scan Tool Truck Scanner for Commercial Vehicle, Passenger vehicle, Machinery with Special Function Calibration
CAR FANS C800+ Diesel Diagnostic Tool
Our Diesel Diagnostic Tool Throttle, Suspension, Injector Coding, keychain coding, power balancing, transmission adaptation, etc. It is a professional diagnostic scanning tool that can scan available vehicle modules including PCM, ECM, EPS, PDM, TPM, BCM, ABS, and SCCM, and perform wireless diagnostics at the OE level. on all car systems, ABS, SRS, engine, transmission, brake systems and etc.
The Auto Diagnostic Tool has the same functions as MS908 but is more portable. MS906BT has twice the battery life of MS906 and supports oscilloscope and digital inspection camera accessories while MS906 does not. The car diagnostic computer has a wide coverage of the vehicle.
Specifications:
- Mark: Autel
- Power supply: Battery Powered
- Item dimensions LxWxH: 10 x 6.9 x 1.4 inches
Good at European and Japanese vehicles, support Machinery
Update Online two years for free
With extensive vehicle coverage of CAT Caterpillar, KOMATSU, Volvo, HITACHI, KOBELCO and Hyundai
Description:
CAR FANS C800+ is most powerful truck diagnostic tool, support both diesel and gasoline vehicles
CAR FANS C800+ is fully optimized based on the OEM scanner, which enhances the comprehensive diagnostic capability of the diesel vehicle. Some of the functions are based on the advanced technology accumulated by the R & D team for many years and are superior to other similar diagnostic products in the industry. The main diagnostic functions include reading the version information, reading/clearing the fault code, actual values, actuators, advanced function (special function, matching settings, functional test, diesel calibration) and so on.
Car Fans C800+ highlights
Wide Vehicle Coverage: CAR FANS C800+ support 35 Heavy duty brand, 21 BUS Brand, 16 Passenger car Brand, 32 Machinary vehicle brand and 46 ECU System, almost cover all brand heavy-duty vehicles in market
Powerful function of software: C800+ is fully optimized based on the OEM scanner, which enhances the comprehensive diagnostic capability of the diesel vehicle. Some of the functions are based on the advanced technology accumulated by the R & D team for many years. The main diagnostic functions include reading the version information, reading/clearing the fault code, actual values, actuators, advanced function
Fashionable design of hardware: 7 inch 800 x 480 touch screen, super light main unit, is easy to hold and operate. ARM9 CPU with 4GB memory, the software operation is faster than similar tools
Advance Functions: Adjustment/Settings, Function Test, Special function, calibration.
Online Updating: Log in the official website (www.carfans.net.cn) download and install the C800+ intelligent diagnostic device upgrade client software, the device SD card through the card reader plug in the computer USB interface to complete the device software upgrade.
Car Fans C800+ Function:
Identification
Read Fault code
Erase Fault code
Actual Values
Actuators
Advance Functions: Adjustment/Settings, Function Test, Special function, calibration etc.
Features
1. Manage on-road vehicle with strong repair function: detect critical problems through live data graphing, check out component malfunctions and implement repairs via special tests, as well as program vehicle operation and components replacement from custom parameters.
2. Offer multiple-system data comparison as well as real-time data graph.
3. High-speed processor ensures fast results and data display.
4. Diagnostic hardware is designed according to international standard, compatible with Diagnostic interfaces of worldwide models, including wide-range connector and cables.
Advantages
Diagnosis:
Euro 5: Cummins, For Weichai, For Yuchai, For Shangchai, For Xichai, For Yunnei, For Foton, For FAW, For JMC, For Qingling, For IVECO, etc. (Read Code, Clear Code, Data Stream, Actuation Test)
Gas: For WeiChai WoodardNatural Gas system, For WeiChai BOSCH Natural Gas system, For YuChaiNatural Gas system, For FAWDENatural Gas system, For SDEC Natural Gas system, For CNHTC Natural Gas system, For Nanchong Natural Gas system, For Cummins Natural Gas system, etc.
Machinery: Engine and Hydraulic diagnosis on Caterpillar, For KOMATSU, For VOLVO, For SANY, For HITACHI, For Hyundai, etc.
Post-processing: Urea pump drive/injection test: For BOSCH, For Kailong, For ACT BLUE, For Tenneco, For Henghe, For Bjcats, For CNHTC, For SHACMAN, etc.
ABS: For WABCO, For Kormee, For BOSCH, For WanAn, For HongDing, For Cnhtc, For YaTai, For FAW, For Qinqi, For FAW, For DELPHI, For JingxiHeavy, For Knorr, For DongFeng, etc.
ECU Reprogram:
1. support all Euro 3 Bosch EDC 7 across the bottom of the brand reprogram;
2. support all Euro 4 Bosch EDC17 bottom cross-version reprogram;
3. support EDC16UC40 bottom reprogram (Dongfeng, Xichai, Yuchai, Cha Cha, cloud, etc.);
4. support the country 4 Bosch EDC17 ECU read reprogram write data, the country 3 Bosch EDC7 / EDC16 read and write;(Weichai, Xichai, Yuchai, Chaichai, Dachai, Dongfeng, cloud, on the red, heavy truck, Valin, Fukuda, JAC, the whole firewood, Chai Chai, Yang Chai, etc.)
5. support the Hino Denso, on the diesel and other equipment,
6. support Weichai country 5, the country 6 ECU reprogram write, Yuchai 5 ECU reprogram to write;
7. support CBCU reprograms: China National Heavy Duty Truck, Fukuda Auman, etc.
8. support DCU reprogram to write: Tenneco, Hino, Weichai autonomy;
Calibration:
For Weichai, For Xichai, For Yuchai, For Cha Chai, For Dafa, For Dongfeng, For the cloud, For heavy truck, For Valin, For Fukuda, For JAC, the whole firewood, on the firewood, For Yang Chai and other engine calibration function (Euro III IV Bosch EOL) :(Idle speed adjustment, clutch switch, main and auxiliary brake switch, the maximum speed adjustment, preheat control, exhaust brake, fuel oil alarm, starter control, air conditioning control, cruise control, Car start and stop switch, oil pressure sensor, oil in the water sensor, fuel oil alarm, engine alarm light, PTO speed, K value, intake preheat, bridge speed ratio, etc.)
the exclusive starting Bosch 4, the Euro 5 post-processing history fault removal function
the exclusive starting the highest speed adjustment calibration function, support Bosch / Cummins 4, the Euro 5 and CBCU (heavy truck, Dongfeng, liberation, on the red)
the Euro 4, the Euro 5 urea injection temperature setting function, used to reduce the consumption of urea (support For Weichai, For FAW, For Xichai, For heavy truck, For Yuchai, For Chai and other DNOX 2.2 / 6.5)
the new For Weichai, For Yuchai, For Dongfeng, For Cummins and other nitrogen sensor test calibration function (test nitrogen and oxygen sensor is good or bad)
China National Heavy Duty Truck CBCU, CBCU3 system calibration, For Weichai Euro five engine calibration; Cummins Euro five all the calibration function
Car Fans C800+ Heavy Duty Scanner Vehicle List:
Commercial Vehicle: FAW,DONGFENG,Mercedes-Benz,CNHTC, FOTON, SANY, JAC, SFH, CAMC,
UD, VOLVO, Mitsubishi, IVECO, MAN, SCANIA, JMC, HINO, ISUZU, SHACMAN, C&C, Hyundai,
XCMG, BEIBEN, KIA, KING LONG, YUTONG, HIGER, GOLDEN DRAGON, YOUNGMAN, BYD, ANKAI,
DAEWOO, SUNWIN, ZHONGTONG, HUANGHAI, WZL, SUNLONG, TOYOTA, ASIASTAR
Passenger Vehicle: Mercedes-Benz, Hyundai, VW, Zhonghua, JMC, GreatWall, ZZNISSAN,
JAC, ZXAUTO, DONGFENG, LIEBAO, CHERY, FUDI, GONOW, HUATAI, SSANGY, MAXUS, JX-ISUZU
Machinery: CAT, KOMATSU, VOLVO, SANY, LOVOL, JOHN DEERE, HITACHI, KOBELCO, HYUNDAI,
ZOOMLION, CASE, LISHIDE, DOOSAN, SUMITOMO, YUTONG, Bobcat, SHANTUI, LiuGong, IHISCE,
XCMG, KUBOTA, Takeuchi, XGMA, Atlas, TEREX, YUCHAI, LONKING, SUNWARD, SEM, Jonyang,
PENGPU, YTO, JAC, XINYUAN, DXZG, HENGTE, SANYUAN, HUANGHE, SHUNTONG, STRONG
Engine&ECU: Bosch, Denso, Delphi, Perkins, Deutz, Weichai, Yuchai, Fawde, Cummins,
Yunnei, Changchai, SDEC, DCD, Yangchai, Quanchai, EUP, JX-Isuzu, XCE, Kernel, SIDA
CARFANS C800+ Heavy Duty Scanner Menu & Function Display:
Commercial vehicle
Passenger vehicle
Engine &ECU

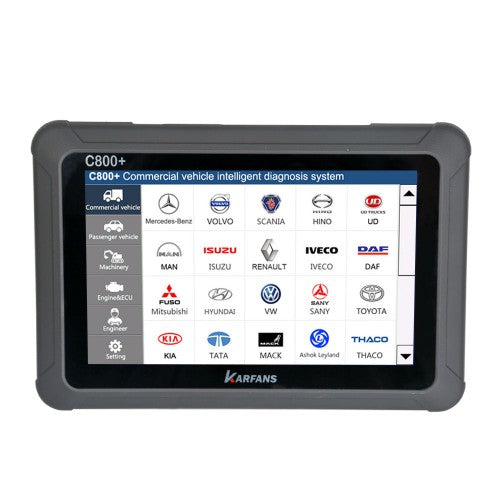

Home interface
System selection interface
Advanced Function- Adjustment/Setting
Special Function-Coding interface
Notice:
When the power is supplied through the diagnostic port, it is not necessary to connect the power supply through
the main power port. When the vehicle diagnosis block itself is not powered, it can be connected to the power source
through the power supply port.
The SD card stores the operating system, application software, and data files of the device. (Unless the software upgrade, do not to remove the SD card).
CAN FANS C800 Heavy Duty Diagnostic Tool Technical Parameters:
CPU: ARM9
SD Card: 4G, Maximum Support 32GB

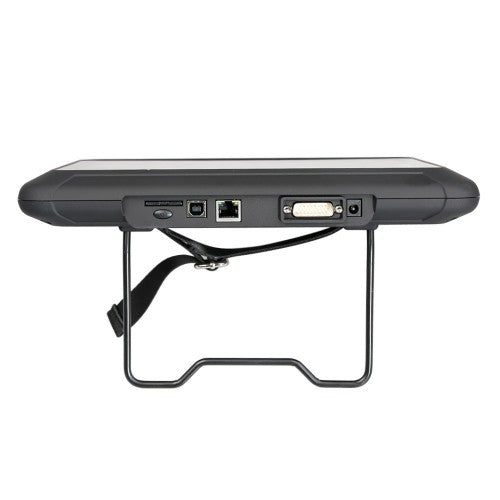

Communication port: OBD, USB
Input voltage: 7-32V
Power: <10W
Screen: 7 inches 800x480 touch screen
Operating temperature: -10~45°C
Storage temperature: -15~50°C
Operation method: Touch

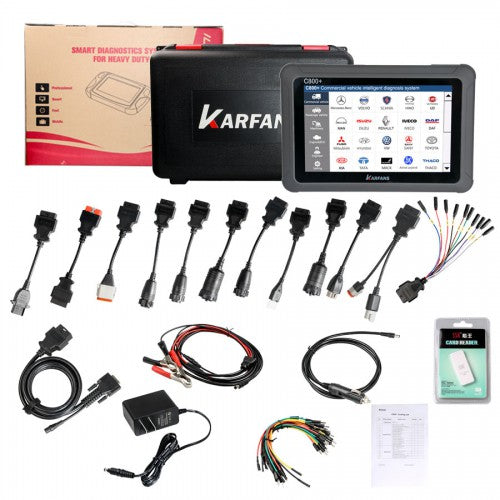

CAR FANS C800+ Packing List:
1pc x Power extension cord
1pc x Battery clip supply line
1pc x Cigarette lighter supply line
1pc x SD card
1pc x SD card reader
1pc x Test extension cord (with OBD connector)
1pc x Power adapter kit
1pc x C800 device

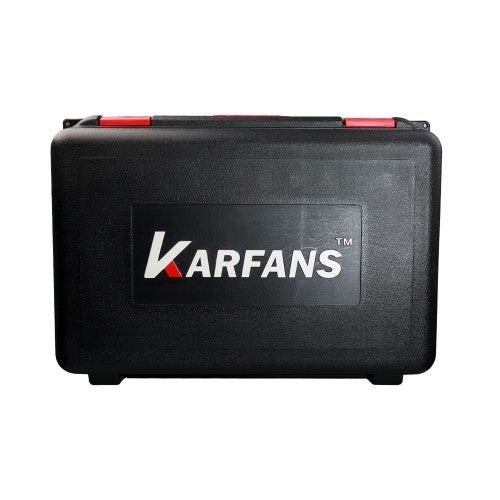

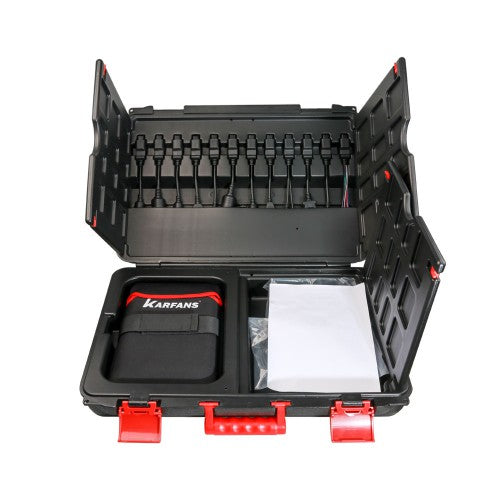

1pc x C800 carry case
1pc x OBD16PIN Circular adaptor
1pc x CUMMINS-9
1pc x IVECO-38
1pc x BENZ-14
1pc x KOMATSU-12
1pc x VOLVO-14
1pc x VOLVO-8
1pc x CAT-9
1pc x Multi-function jumper adaptor
1pc x C800 user manual
1pc x Material name
1pc x CUMMINS-6
1pc x MITSUBSHI-12+16
1pc x DENSO-12
1pc x WIT-3
1pc x ISUZU-20
1pc x HITACHI-6
1pc x HITACHI-4
1pc x MAN-37
1pc x MAN-12
1pc x RENAULT-12
