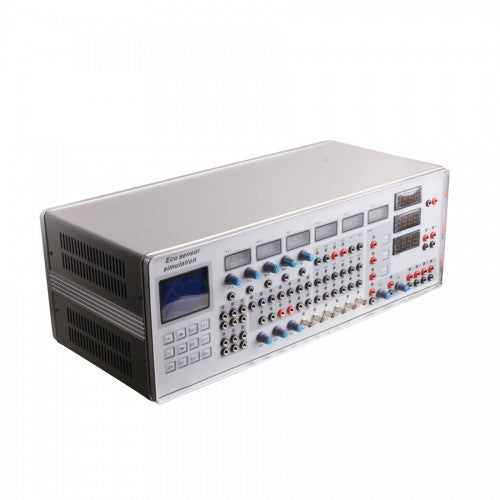

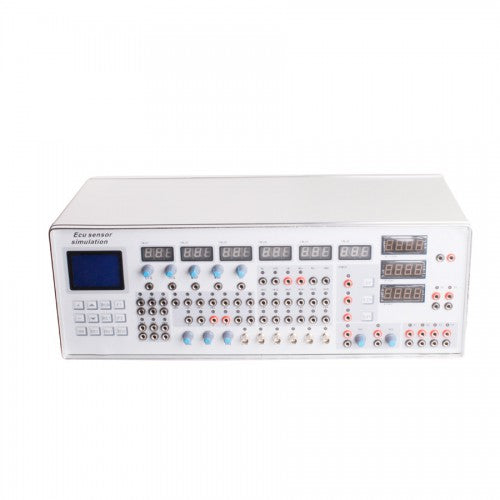

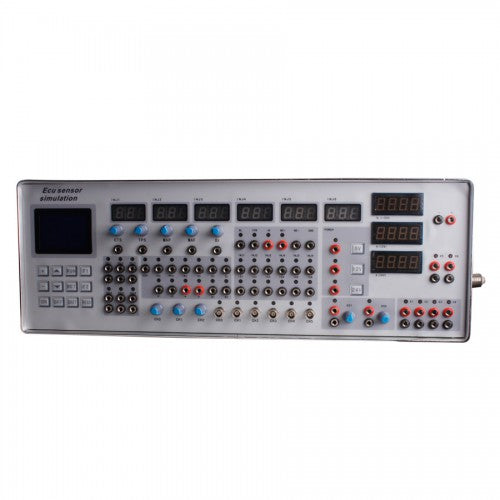

Automobile ECU Sensor Simulation Tool for Car ECU Reparing 110V

Application range:
Diagnosis/engine/transmission/ABS/air-condition/ Immo etc. for ECU repairing, auto teaching aid model driver, automobiles R&D.It fit for multi-brands cars made in Asia, Europe, USA.

Function:
1. Users can set the engine control system, independent of different types of crank signal output
2. Engine speed signal output
3. Speed output (Hall signal, magnetic signal)
4. Automatic transmission input and output shaft signal simulation
5. Set the waveform data is written directly

6. Three, four-channel ABS wheel speed signal output
7. PC board working current test
8. Injector simulation
9. Idle stepper motor simulation (four-lane, six-lane)
10. A \ C relay simulation, Pump relay simulation, Radiator fan relay simulation

11. Audio signal outputs, power amplifier driver
12. Automatic Shift Valve, shift quality valves, hydraulic control valve simulation
13. EGR solenoid valve drive
14. Carbon can clear the solenoid valve drive or valve simulation
15. Tachometer drive

16. Blower Control Module Driver
17. Idle valve driver
18. Stepper motor drive (4, 6 lines)
19. Injector Driver
20. Ignition coil driver,module drive

21. Parking sensor (ultrasound) probe drive
22. Automatic Shift Valve Drive, Shift quality valve drive, hydraulic valve drive
23. Water temperature, intake air temperature, outdoor temperature, evaporation temperature    sensor signal simulation box
24. Oxygen sensor signal simulation (manual/ auto signal), Throttle signal simulation, EGR solenoid valve simulation
25. Air flow sensor, intake air pressure sensor (analog, digital) signal simulation

26. Ignition coil simulation
27. Fuel injection pulse width measurement
28. Central lock server simulation
29. Burglar resistance simulation
Output signal: magnetic signals, Hall signals, optical signals

Special Feature:
sensor simulation experts:

It can be set arbitrary waveform output, can produce all the models of today's engine crankshaft, camshaft signals (Hall, magnetic, optical signals), waveform memory card from the long-term preservation, waveform data for free online updates.

crank simulation experts:

ABS wheel speed signal, speed signal (Hall, magnetic, optical signals), the oxygen sensor signal, throttle signal, airflow, inlet pressure sensor (analog, digital), and other signal simulation

Actuator experts:
Tachometer, odometer, blower control module, injector, ignition coil, ignition module, frequency and pulse width control solenoid valve, stepper motor drive (four-lane, six-lane), car audio amplifiers, etc.

Actuators simulation for the Ignition coil, injectors, idle speed stepper motor, ultrasonic generators, etc.
Strong domestic first-line five-channel editing functions crank signal

1. Actuator
Drive current:  3A
1% ~ 99% duty cycle continuously adjustable frequency continuous adjustment
2. Sensor Signal Simulation:
Resistance: 100ω ~ 10000ω
voltage : 0V ~ 5V × 2 0V ~ 1.5V 0V ~ 12V
3. The implementation of simulated driving: 69-channel simultaneous output
4. Stepper motor drive: current: 1A
5. Ammeter maximum test current: 5A

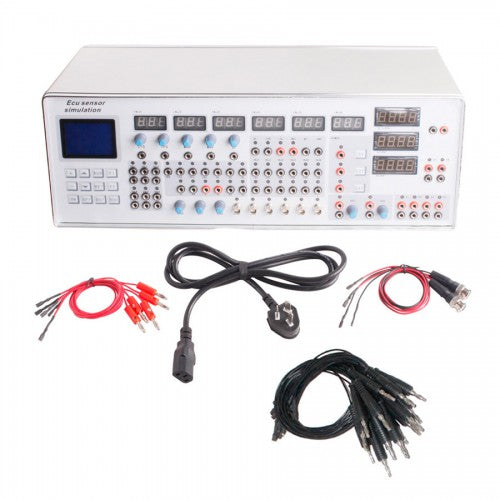

Packing List:
1 x sensor simulation main

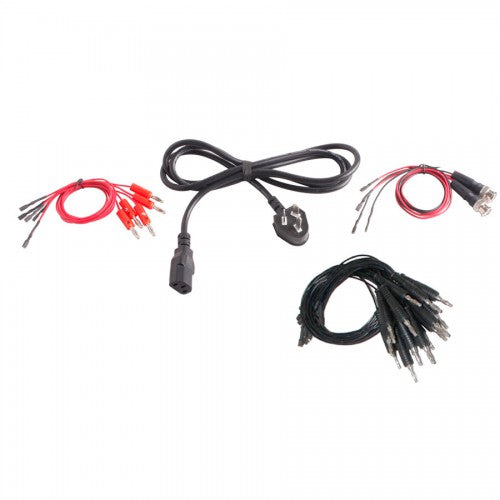

2 x signal line
1 x power cable
Ecu connector cable
