AK500 Plus Key Programmer Vs AK500+ Key Programmer: Same function at cheaper price. The AK500+ tend to be out of stock, AK500 plus is a replacement.
Top 6 Reasons to Get Mercedes Benz AK500 Plus
1. Match and support function "Keyless Go" of Benz Infrared Key;
2. Support Benz Infrared keys lock and unlock for EIS+ESL+ESM, the leading technology all over the world;
3. Support Directly reading EEPROM for BENZ DAS( 1995-1998 )via OBD, able to unlock DAS when you lost all keys and DAS is locked;
4. Read and write the ESL of E/Class and C/Class via K_line, no need remove ESL;
5. Support Benz ECU's flash(29F400 and 29F800) generating key data. Need to use STAR 2000 to do ECU coding.
6. No need to choose the MCU type of EIS. When load EIS file, recognize EIS file, and generate a key file. If your MCU is HC705, the software will automatically suggest "load next EIS file of HC705"
AK500 Plus Update
Update by email, or download the software on our website for upgrading
1. Language available: English
2. Computer system requirement: XP system
AK500Plus Supported Car Models:
Mercedes-Benz: W220/W220 "Keyless Go" W208/W210/W220/W203/W215/W230/W209/W219/W211/W230/W215 EEPROM(M95xxx)Volkswagen
Audi: MPC(MPC555/556,MPC561/562,MPC563/564),external Flash(MB58BW016,29BL802C,AM29BDD160,S29CD016,DE28F800 etc.) and external EEPROM(M95xxx)
AK500 Plus Key Programmer Specification:
Powerful Motorola MCU Programming Function. Directly reading dums of EEPROM (HC908) and Flash (HC912, HC9S12, HC9S12X) for Motorola MCU, in support of the engine ECU of Benz, VW and Audi, etc. MPC (MPC555/556, MPC561/562, MPC563/564), External Flash (MB58BWO 16, 29BL802C, AM29BDD 160, S29CD0 16, DE28F800 etc.) and External EEPROM (M95xxx). AK500Plus is an advanced tool of car ecu repair and programming, odometer adjustment and key programming as well.
2. Follow-Up Upgrade:
Benz(R or W220) shift module ISM and 722.9 gearbox ECU drive authority;
Upgrade ESM read and write EEPROM.
3. Product Parameters:

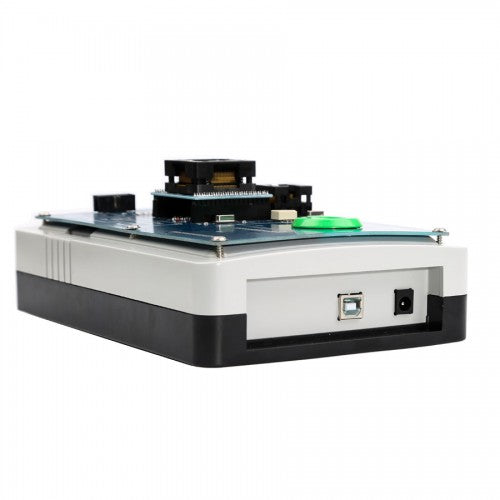

Online Communication Interface: USB2.

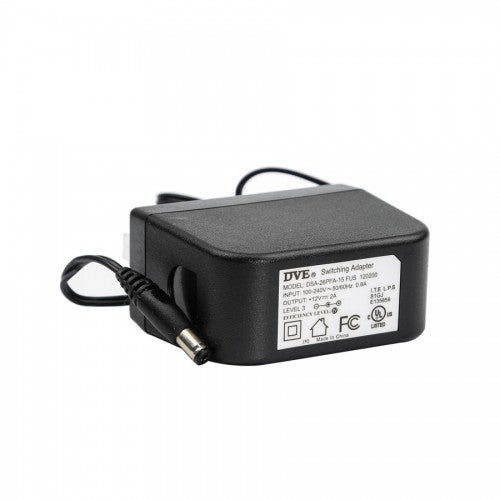

Power Specifications: AC
Input 100-240V, 50/60HZ;
Output 12V/2A DC
Power Consumption: 40W

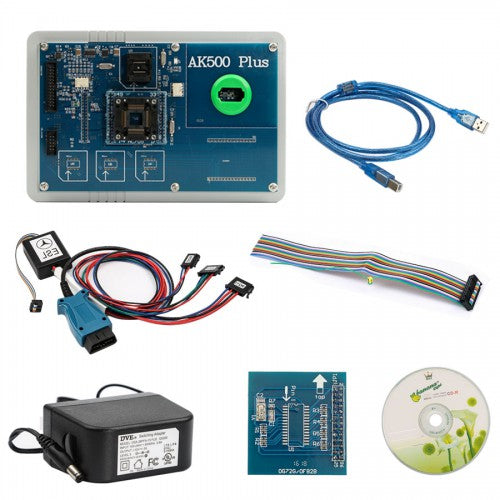

1pc x AK500 Plus Key Programmer
