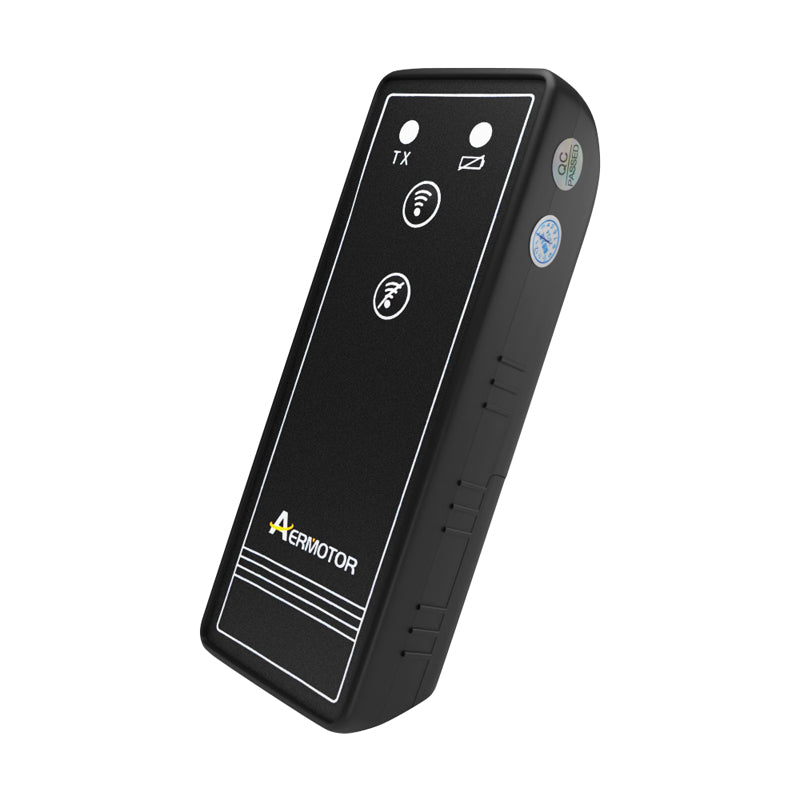

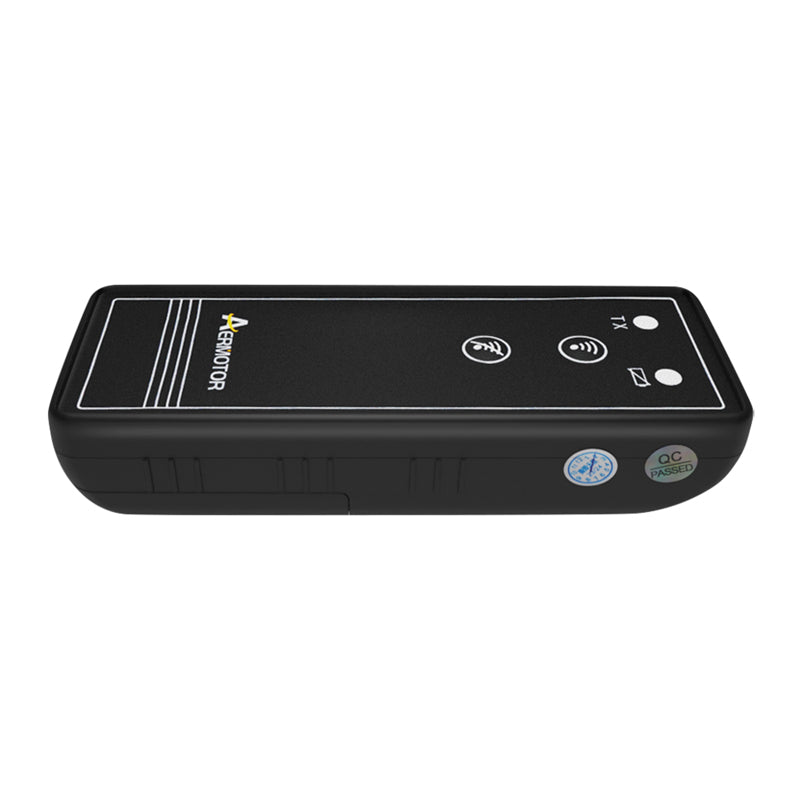

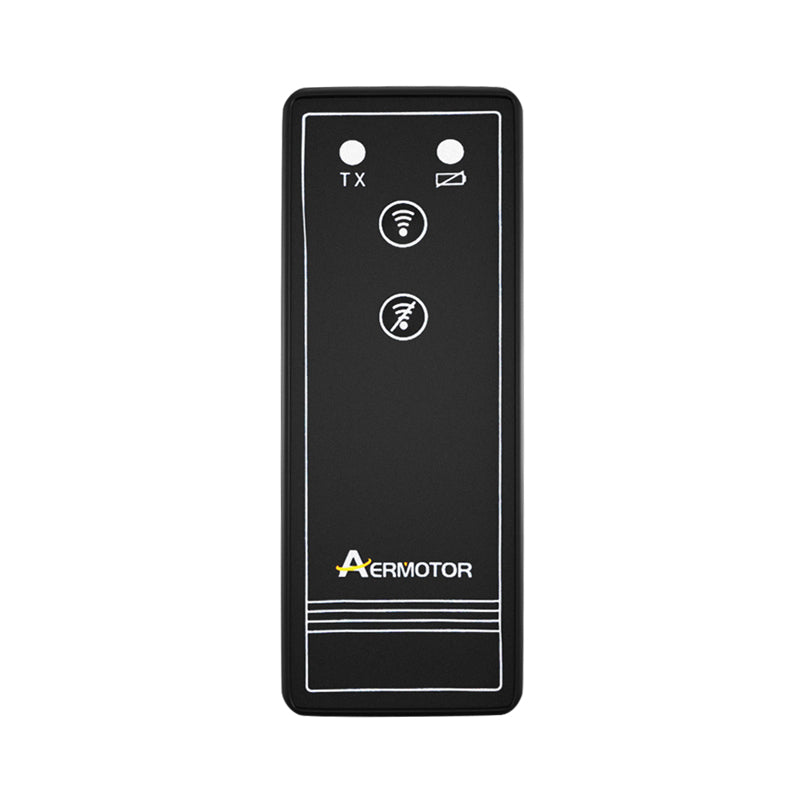

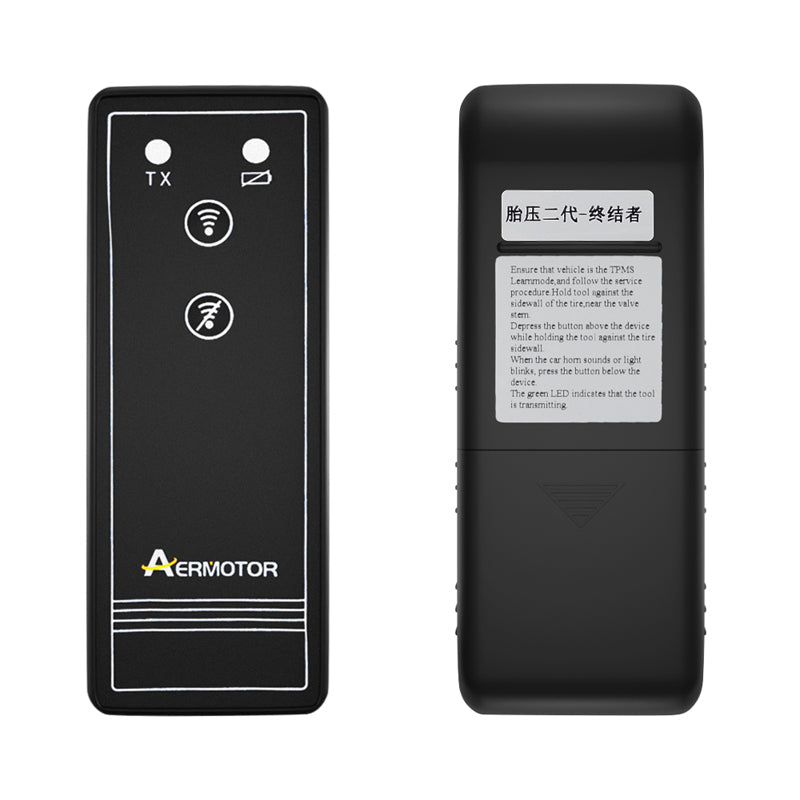

Aermotor TPMS Tire Presure Monitor Sensor TPMS For ALl Models Reset Tool Better Than EL50448 Mechanical Tester

2 sold in last 8 hours!
XTYAER105
0.2 kg
500 In stock
$29.99 $25.99
    Specification: ​ Description:   Ensure that vehicle is the TPMS Learnmode,and follow the service procedure. Hold tool against the sidewall of the tire,near the valve stem. Depress the button above the device while holding the tool against the tire sidewall. When the car horn sounds, press the button...
$25.99
Free Shipping
customers are viewing this product!
Tags:





Specification:

Description:

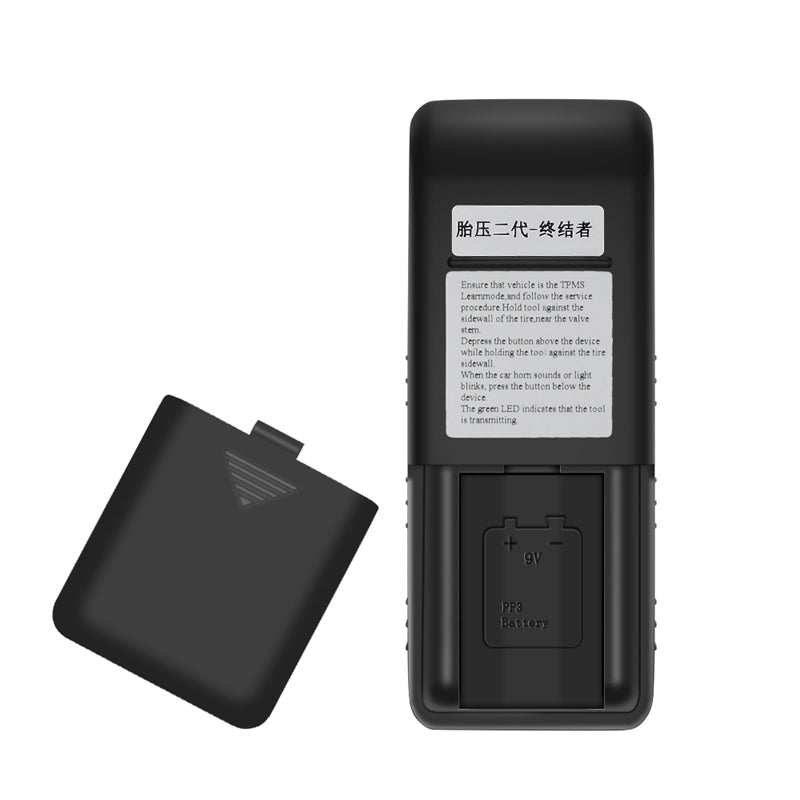

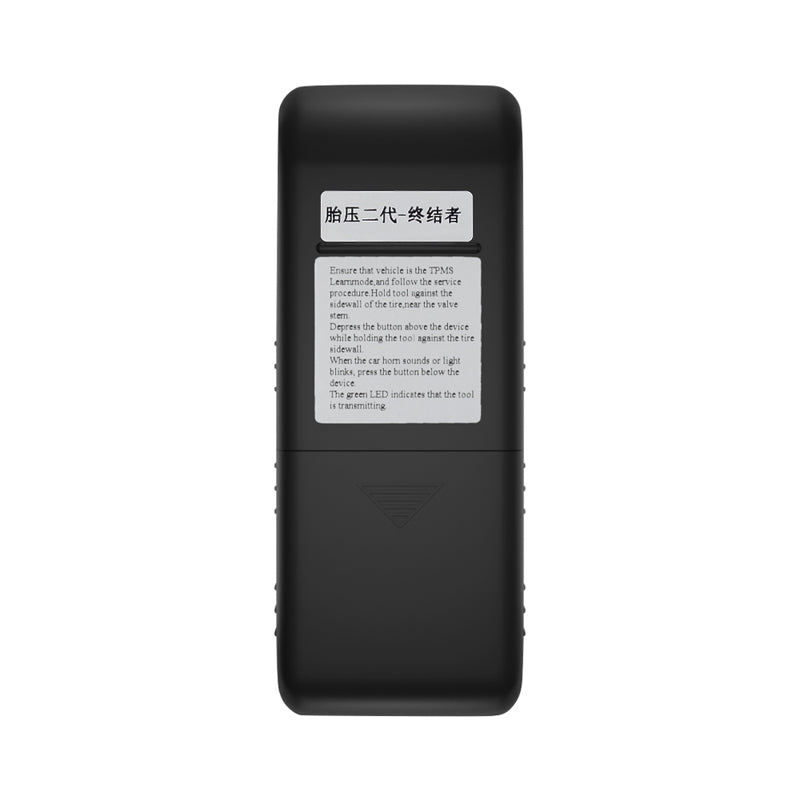

Ensure that vehicle is the TPMS Learnmode,and follow the service procedure.

Hold tool against the sidewall of the tire,near the valve stem.

Depress the button above the device while holding the tool against the tire sidewall.

When the car horn sounds, press the button below the device.

The green LED indicates that the tool is transmitting.

Car List:



Support Germany Series:For Mercedes-Benz For BMW For Audi For Volkswagen

Support Europe Series:For Renault For Peugeot For Citroen For Ferrari For Fiat For Iveco For Land Rover

Support Japan Series:For Toyota For Nissan For Honda For Mazda For Mitsubishi For Suzuki For Subaru

Support Korea Series:For Hyundai For Kia

Support America Series:For GM For Ford For Chrysler

Support Full Cars Series:For Mercedes-Benz For BMW For Audi For Volkswagen For GM For Ford For Chrysler For Renault For Peugeot For Citroen For Ferrari For Fiat For Iveco For Land Rover For Toyota For Nissan For Honda For Mazda For Mitsubishi For Suzuki For Subaru For Hyundai For Kia


Using Tips:


The tire pressure sensor on models in and after 2012 can be read, only with some specified diagnostic tools.

Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and use the following methods to read the tire pressure sensor.

After replacing a tire or wheel speed sensor.



Please refer to the specific methods as follows:

1. Set the vehicle into the tire pressure training mode (plug the key, step on the parking brake, the car keys from the off to open 3 times, and then step on the parking brake, turn off the car keys, and then from the off to open three times; Training mode for the vehicle to start the state of the three consecutive dangerous alarm flash), if you hear the speaker sounded that the training mode has been enabled.

2. Starting from the left front tire, the antenna of the dedicated tool for tire pressure monitoring is facing upwards against the tire sidewall near the rim of the valve stem to start the antenna. Press and release the start button and wait for the speaker to emit a chirp. Once the speaker is chirping, the sensor information is read and the turn signal to be read at the next position will light.

3. When the speaker is ringing and the right front turn signal light is on, the remaining three sensors repeat step (2) in the following order: 3.1. Right before 3.2. Right rear 3.3.Left rear;

4. When the left rear sensor has been read and the speaker is also issued twice, the read process is completed and the body control module also exits the read mode

Package List:

1pc* TPMS Reset Tool
