22pcs BDM Frame Adapters
This is a BDM Frame Adapter only and can NOT be used alone. This adapter must use with BDM FRAME. This Multi-function car ECU frame, consisting of an acrylic board, stainless steel frame, and 4 probe pens. BDM LED frame Kit can install a quick programming adapter. Easy to install and operate, no damage to the ECU circuit board. After connecting with the probe, please disconnect the 12V battery for LED. It will work. The probe pin is adjustable.
The Stainless Steel Frames Quick programming interface for users to connect to the ECU. Fast and stable ECU brush realization, writing, and programming. LED works for 12V. Perfect support for ECU / ECU brush upgrade and write/modified and programming/probe support / for Dimsport help. This BDM LED frame kit has a wide range of applications, suitable for ECU chip tools such as KTAG / KESS / FGTECH / BDM100 / CMD / DIMSport.
- The original BDM probe width is 22mm, which is not suitable for low-quality plastic with a width of 60mm.
- A complete set of 22 BDM adapters.
- This is a complete set of BDM adapters for K-TAG / KESS / Trasdata tuning tools.
- For K-TAG / KESS / Dimsport BDM probe adapter, a complete set is used for Denso / for Marelli / ForBosch / for Siemens.
- The width of the original BDM probe is 6mm, which is not suitable for lower plastics with a width of 5mm.
- Item Type: BDM Frame Assembly
- Material: Stainless Steel + Acrylic Board + ABS.
- Adapter thickness: 2mm
- Adapter color: Green

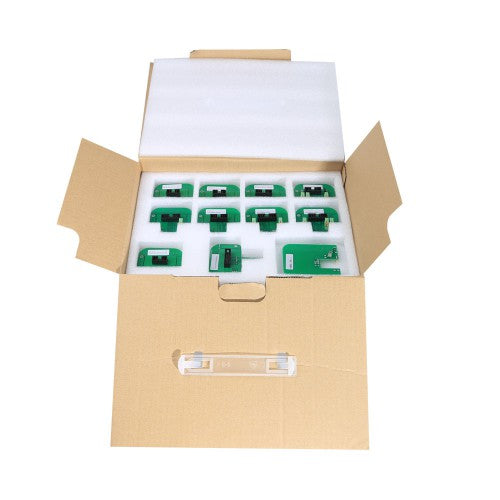

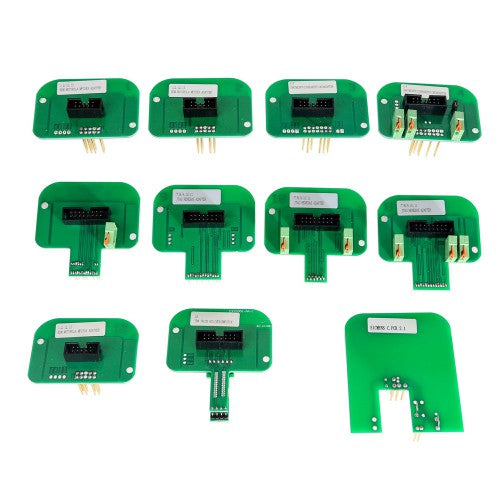

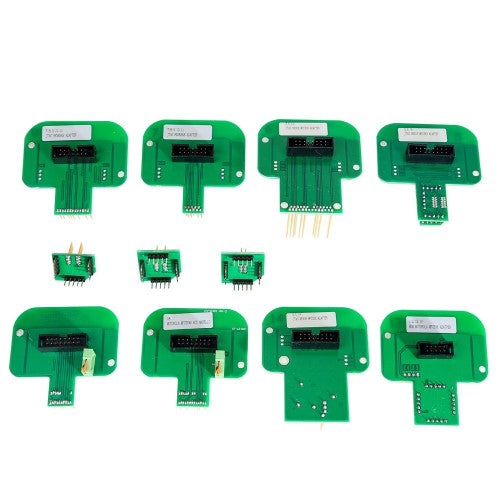

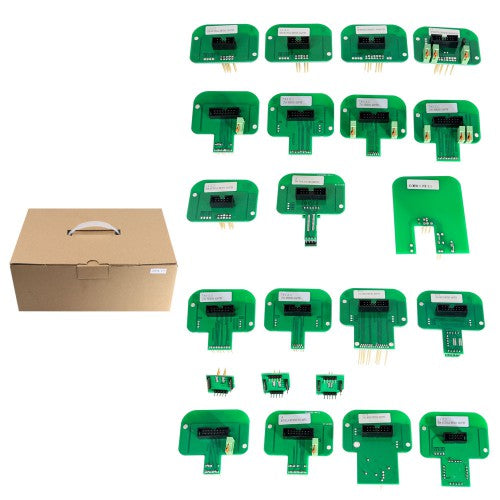

A full set comes with 22 BDM adapters.
1 14AM00T01M Bosch
2 14AM00T02M Delphi DCM
3 14AM00T03M Bootloader ST10xx
4 14P600KT04 Infineon Tricore EDC/MED17
5 14AM00T05M Marelli MPC55xx JTAG
6 14AM00T06M Delphi MPC55xx JTAG
7 14AM00T07M Denso CN1 Boot
8 14AM00T08M Denso CN2 Boot
9 14AM00T09M Denso CN3 Boot
10 14AM00T10M Denso CN1 AUD
11 14AM00T11M Denso CN2 AUD
12 14AM00T00M Delphi DCI
13 14AM00TBAS Base Adapter 1.27
14 14AM00T14M NexusEFI T6 Lotus
15 14AM00TB02 Magneti Marelli BDM insert
16 14AM00TB01 Siemens BDM insert
17 14AM00TB03 EDC7 BDM insert
18 14AM00T18M Magneti Marelli MPC/SPC56xx
19 14AM00T13M Nexus MPC5xx TRW ECU
20 VAG 1.6tdi - Siemens-Continental PCR2.1
21 14AM00T15M Toyota NEC76F-20
22 14AM00T16M Toyota NEC76F-26
