Yanhua MB CAN Filter 18 in 1 for Benz / BMW Universal CAN Filter

2 sold in last 8 hours!
SE133-A
0.2 kg
500 In stock
$35.00
Yanhua MB CAN Filter 18 in 1  Benz/BMW Universal filter  Latest Benz / BMW Universal CAN Filter   Applicable vehicle list:  1. Benz 18 types chasis model:S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)  BMW: CAS4/FEM Fxx     2. BMW...
$35.00
customers are viewing this product!

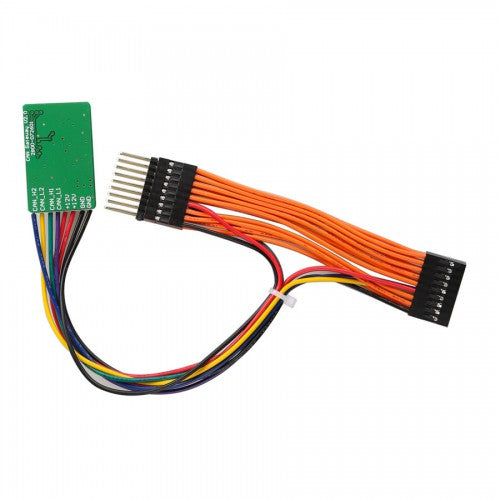

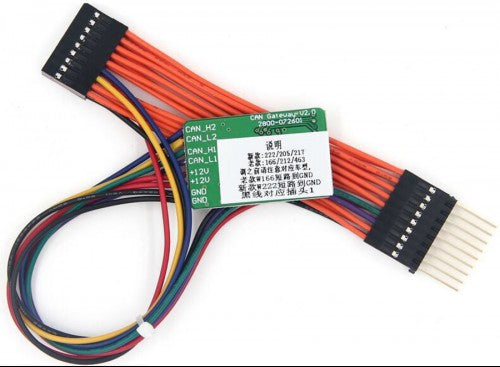

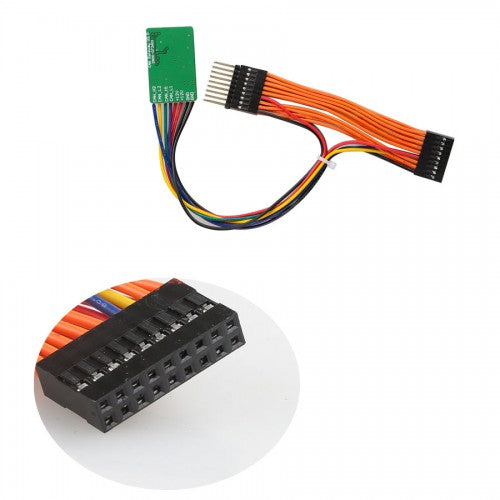

Yanhua MB CAN Filter 18 in 1  Benz/BMW Universal filter

Latest Benz / BMW Universal CAN Filter

Applicable vehicle list:

1. Benz 18 types chasis model:S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
BMW: CAS4/FEM Fxx



2. BMW Model:

   BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment( no need to remove FEM, connect directly to instrument panel);
   BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).

This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.

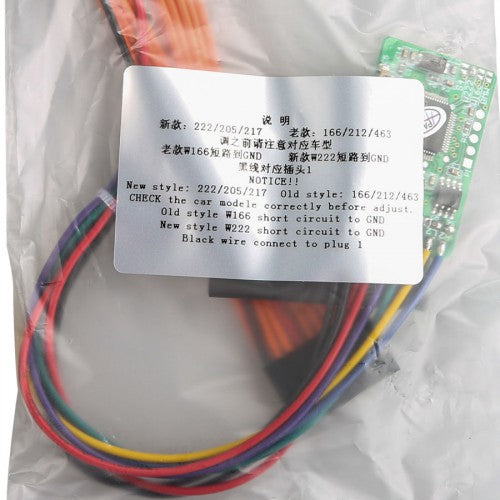

NOTICE!!
New style: 222/205/217
Old style: 166/212/463
CHECK the car model correctly before adjust.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1

YH Benz / BMW Universal filter --- Diagram for BMW

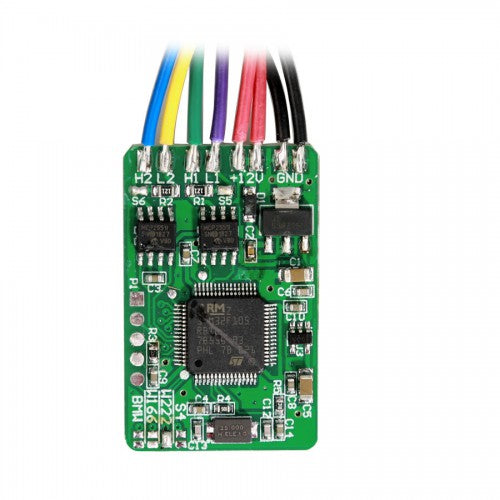

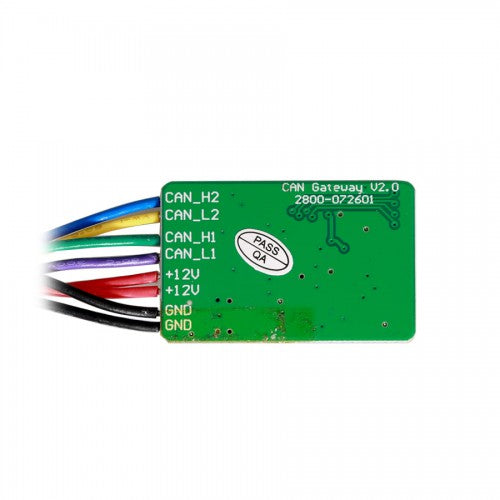

Below is wiring illustration:


Black  --------- GND                   Red --------- +12V      White  --------- +5V
Purple  -------- L1(CAN_L1)    Green --------- H1(CAN_H1)
Yellow --------- L2(CAN_L2)    Blue --------- H2(CAN_H1)
NOTICE! Please connect the 2 BMW dot together(short circuit) BEFORE connect to car!

1.Below is the diagram for BMW 1 series F20 instrument:



2.Below is the BMW 3 series F30 instrument:



3.Below is the BMW 3 GT series F30 instrument:


4.Below is the diagram for American Standard BMW X5 F15 instrument:


5.Below is the diagram for USA Strandard BMW X5 F15 instrument:



6.Below is the diagram for BMW FEM:



7.Below is the diagram for BMW CAS4(1L15Y/5M48H/1N35H)



8.Below is the diagram for BMW X3 F25 instrument:



Package includeds:

1pc x Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal filter
