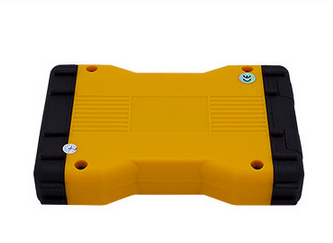

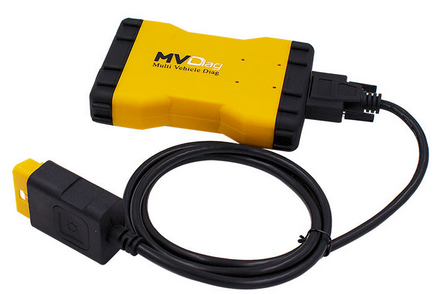

MVD MVDiag CDP Bluetooth Version OBD2 Diagnostic Tool

MVD MVDiag CDP Bluetooth Version OBD2 Diagnostic Tool

Our MVD MVDiag Multi Vehicle Diag is an effective and secure diagnostic equipment for laboring as an attachment between vehicle and computer. It works on both used and new cars & Trucks & Generics. MVD MVDiagMulti Vehicle Diag is a multi-function tool that promotes multi-languages and supported common cars and is easy to use with 100% working.

The MVD MVDiag Multi Vehicle Diag is a multi-function tool that holds multi-languages and established universal cars and is easy to use with 100% working. With the flight cassette capacity, you can register parameters in real-time while you are operating a vehicle. During registration, you can, with a strain of a button, highlight the selective error so that you can review the recognized error the next time. TCS is equipped with built-in memory thus eliminating the need to bring a computer. Memory cart does not involve in the package .you are able to perform brand-specific diagnostics for light and large commercial vehicles, buses, and trailers from 1995 onwards,37 separate brands

Features:

• It supports multi-languages.
• Top-quality and cheap affordable price.
• works on both old and new cars & Trucks & Generics.
• Stable and fast BlueTooth connection.
• Easy to use.
• Tested by many users, many good feedback reviews were received.

Specifications:

• Item Length: 20cm

• Material Type: High Plastic&Metal
• Software Version: V5.00.8 R2 WOW
• Item Width: 15cm
• Hardware Version: MVDiag
• Special Features: Bluetooth
• Function: Car + Truck + Generic 3 In1
• Special Feature: Support More Car Models Than TCS CDP Pro

Model name: MVD TCS CDP Bluetooth
5.00.8 Software Version: V5.00.12 EN
Update: By link
Car Models: For multi-cars and trucks
Languages: English, Czech, Dutch, French, German, Greece, Hungarian, Italian, Polish, Russian, Spanish, Serbian, Turkish, Portuguese
Functions:Diagnostic interface
Connection:By OBD2
Computer requirements: XP or WIN 8



media With Bluetooth Description


media Multi Vehicle Diag is a quick and reliable diagnostic tool for serving as a link between vehicle and computer. It works on both old and new cars & Trucks & Generics. media Multi Vehicle Diag is a multi-function tool that supports multi-languages and supported universal cars and is easy to use with 100% working.



 MVD MVDIAG Diagnostic Tool Highlights


1. Top quality and cheap affordable price.
2. works on both old and new cars & Trucks & Generics.
3. Multi-Languages Supported.
4. Stable and fast Bluetooth connection.
5. Easy to use.
6. Tested by many users, many good feedback reviews received.



Bluetooth MVD MVDiag Multi Vehicle Diag Install/User Note


1 Our CD is with 5.00.8 Version and can only support car. If you want to do trucks, you can install DS150 software for it.
2. Before Connect the device and computer, remember to add the serial number 100251 in serial_number.txt!  Otherwise, it will not connect successfully!
3. It supports multi-languages.
4.  right now is only for Italia and English Version. When it install the new version, the last step, you need to update the WOW firmware to 2015.01. We send 5.00.12 it by a link to you. If you want another language, please use the 5.00.8 version.


New media With Bluetooth Review

 MVDiag With Bluetooth Multi Vehicle Diag can do the following:

-Manufacture specific serial diagnose
-Scan function
-EOBD/OBDII communication
-Serial Systems
-Engine
-Ignition
-Climate
-ABS
-Service reset
-SRS
-Immobilizer
-Instrument
-Comfort system
-Gear-box

MVD CDP PRO  Vehicle Coverage:

For CARS, you are able to perform brand-specific diagnostics for cars and light vans from 1988 onwards,47 different brands.

For TRUCKS, you are able to perform brand-specific diagnostics for light and heavy commercial vehicles, buses, and trailers from 1995 onwards,37 different brands.

For GENERIC, The diagnostic program GENERIC is designed for legislation-based diagnostics, specially targeted for emission-related fault codes. GENERIC is included in CARS and TRUCKS packages.

Wide Year coverage, up To Newest 2016 Car Models, Below Car Models as an example :

Bluetooth TCS CDP MVD MVDiag  Compatible Protocols:

2xHS CAN (ISO 11898-2),
SW CAN (SAE J2411),
K/L (ISO 9141-2),
VPW (J1850),
PWM (J1850),
RS485 (J1708),
TTL and (SPI, analog in, 5volt out)
ISO 15765-4 ( CAN 11-500 ) Protocol As Example:

MVD DIAG Functions:

FLIGHT RECORDER

With the flight recorder function, you can record parameters in real-time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. TCS is equipped with built-in memory thus removing the need to bring a computer. The memory cart does not include in the package.

MULTI-COLORS INDICATOR

With the multi-colors indicator on TCS, you have full control of the diagnostic process. Different colors and sounds communicate the status and the placement of the indicator allows you to see it from afar. For example, if the indicator alternates between blue and green the TCS is in communication with the vehicle control unit.

CONNECTOR WITH LED

To locate the diagnostic connector in the vehicle with ease, even if it’s located in a dark and inaccessible place, there is a LED on the 16-pin connector to help you along. The location and the design allow the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.

VOLTAGE CHECK

When TCS is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, It will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.

CHASSIS NUMBER VIN

In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year are selected automatically. In addition, the engine code for vehicles, which are commonly available on the markets, is also selected automatically.

IS

Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyze the results further on.

ISI

Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.

REPORT FUNCTION

Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.

OLD-FUNCTIONS

TCS is equipped with a unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.

UNIVERSAL

For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation, and implementation of various functions; making even the most complex function simple to perform

HELP FUNCTION

For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step-by-step information about prerequisites, preparation, and implementation of various functions; making even the most complex function simple to perform.


Package List:

1 X MVDiag
1 X CD [With Installation Video)
1 X USB cable
1 X Carton Box
