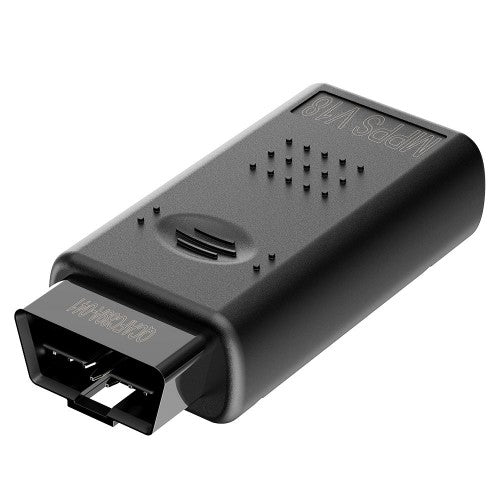

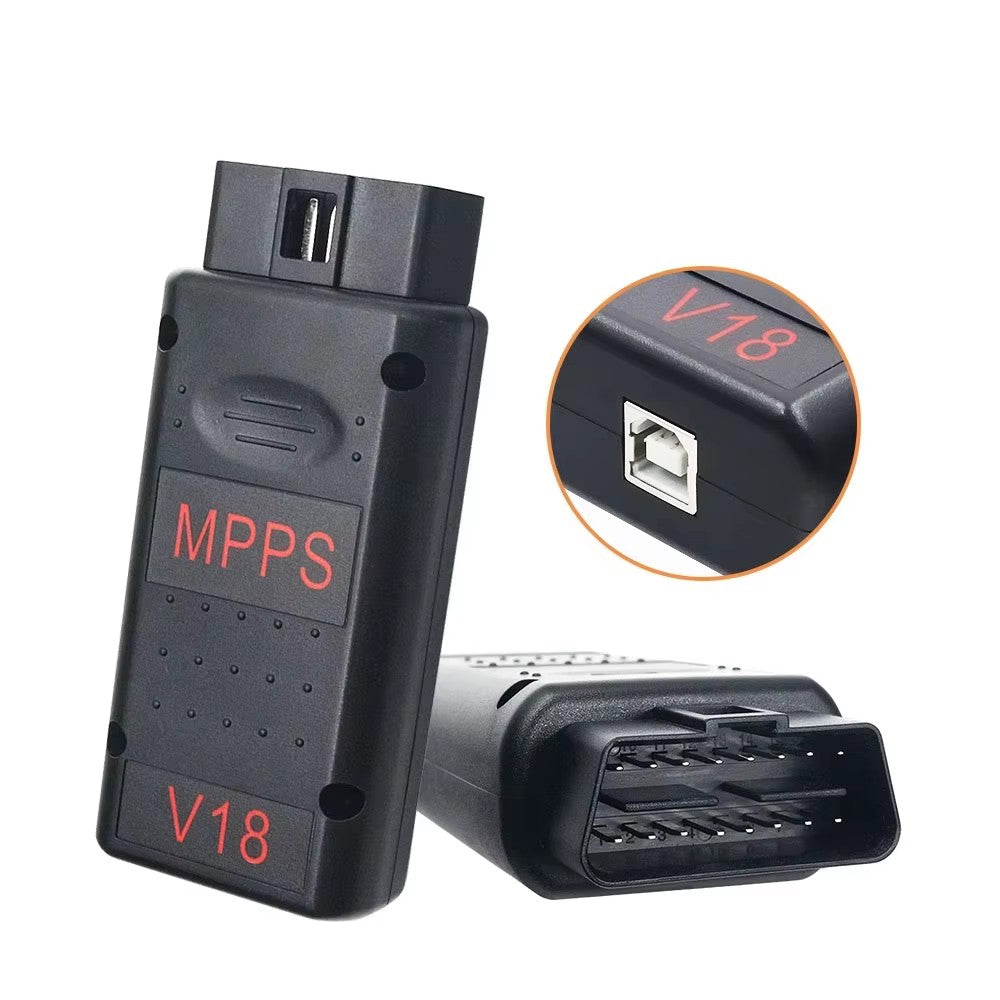

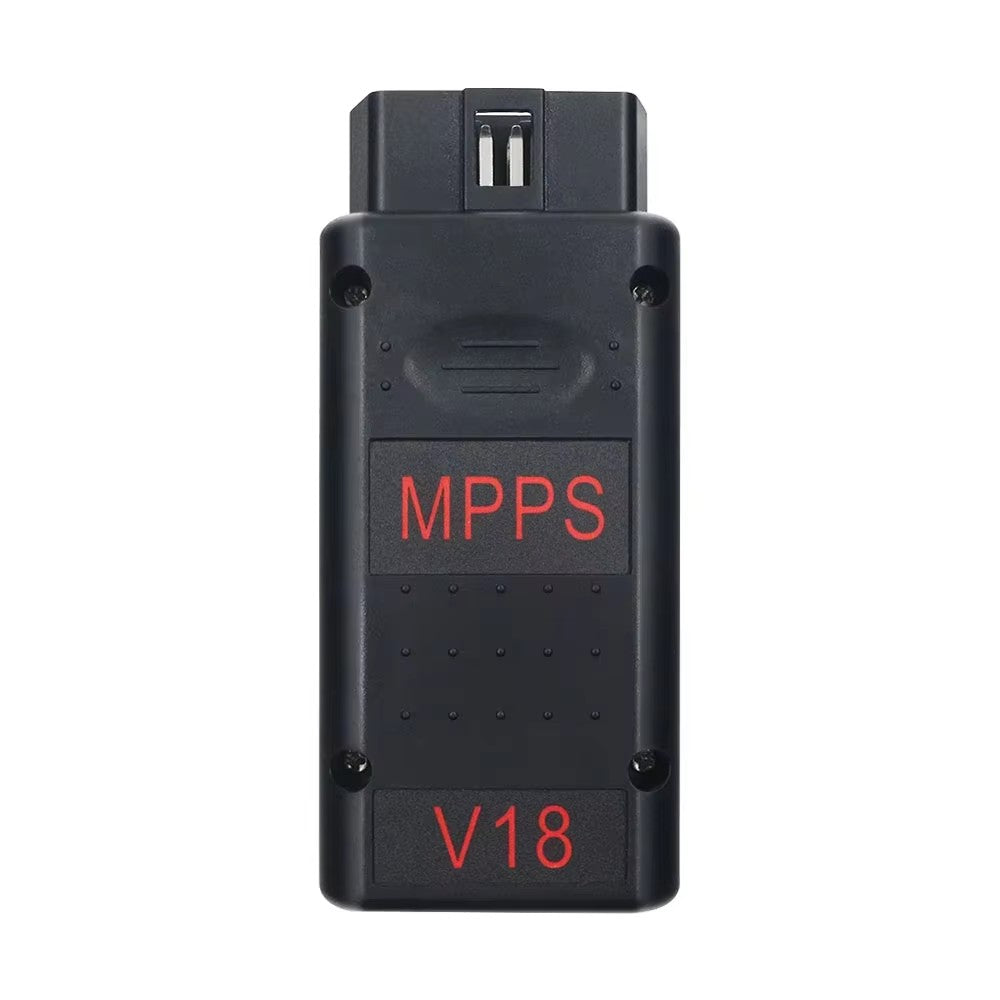

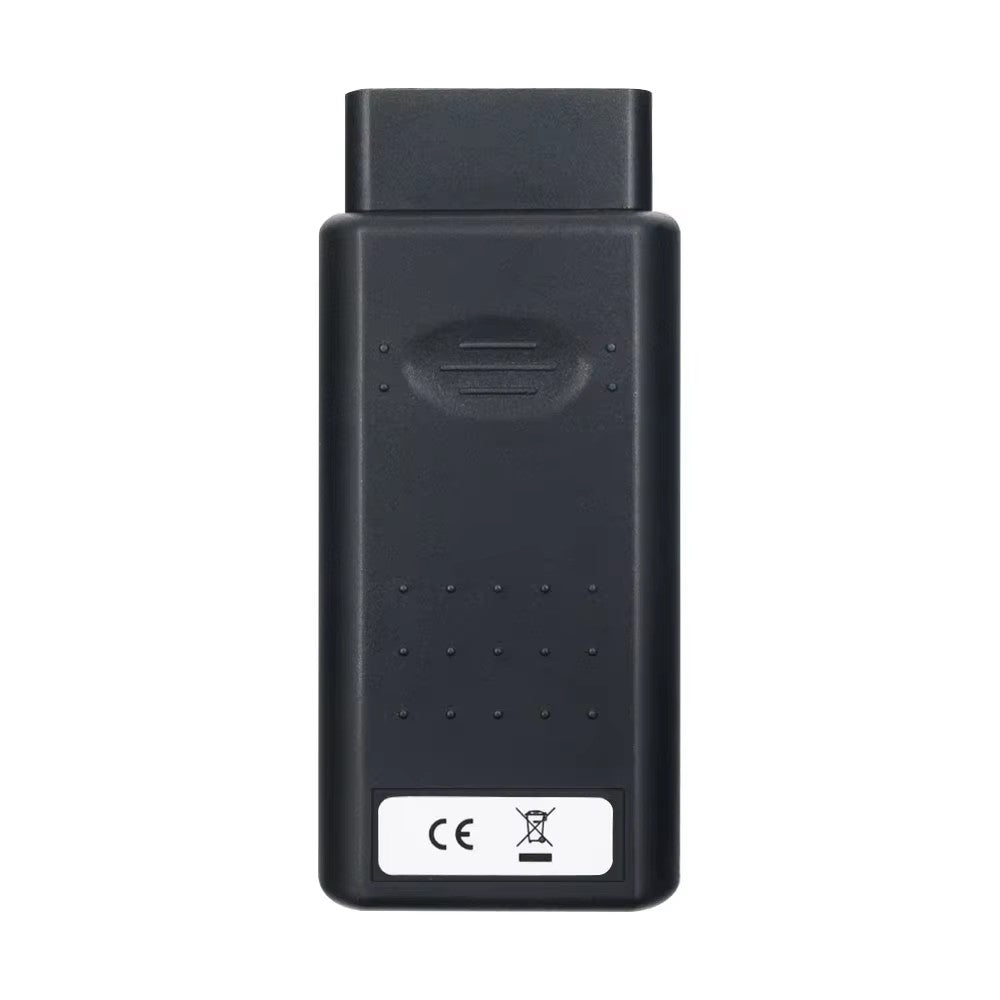

MPPS V18.12.3.8 MAIN+TRICORE+MULTIBOOT with Breakout Tricore Cable

2 sold in last 8 hours!
XTY19063
0.3 kg
500 In stock
$30.00
MPPS V18.12.3.8 MAIN + TRICORE + MULTIBOOT with Breakout Tricore Cable  Our MPPS Auto-detects ECU and processor type. It is no essential to choose from the list, everything is automated! Spot function for OBD Flashing of TPROT ECU’s (supports only VAG at the moment) TPROT / DS controls highlights, for trial,...
Shipment From :
$30.00
Free Shipping
customers are viewing this product!

MPPS V18.12.3.8 MAIN + TRICORE + MULTIBOOT with Breakout Tricore Cable

Our MPPS Auto-detects ECU and processor type. It is no essential to choose from the list, everything is automated! Spot function for OBD Flashing of TPROT ECU’s (supports only VAG at the moment) TPROT / DS controls highlights, for trial, if TPROT is active without cracking ECU. Supports Bosch up to TP12. Supports Siemens (current only for ECU’s without password strength), Support for unlocking of VAG Simos PCR and Simos 8. Checksum Correction approved for Bosch MEDC17. Great recovery purposes. In some cases, MPPS can improve ECU’s which others devices can not even make connections with. On certain controllers, it even works when no record is present (a blank memory). Selectable full/partial reading and writing when the ECU allows this purpose. Selectable reading/writing speed.

The MPPS V18 grammar Writing “changes only” function for more active programming (when supported by the ECU). Auto-detection of K-Line/CAN, and option to bypass and force favored means of information. Temporary bypass of immobilizer to enable flashing on the bench on ME7 systems. fix the driver well, then penetrate the software, otherwise, the software cannot be opened. Please make positive you use the driver from our CD, not the driver for other MPPS versions. This module supports forward purposes on Marelli management units. MPPS covers a range of controllers including M3.8, M5.9, ME7xx, MED9, MED17, EDC15/16/17, Delphi, Marelli, Delco, Sagem, Trionic, and diverse others.

Features:

  • Auto-detects ECU and processor type. No need to select from the list, everything is automatic.
  •  Supports For up to TP12
  • Supports For Siemens (current only for ECU's without password protection),
  • Support for unlocking of Simos PCR and For Simos 8. Checksum Correction supported for MEDC17.

Specifications:

  • Item Weight0.2kg
  • Software VersionMPPS V18.12.3.8
  • Hardware VersionMPPS 1.08.21
  • Item Length14inch
  • Item Height: 8inch
  • Item Width: 25inch
MPPS V18 adds support for advanced functions on Marelli ecus. MPPS covers a range of controllers including M3.8, M5.9, ME7xx, MED9, MED17, EDC15/16/17, Delphi, Siemens, Marelli, Delco, Sagem, Trionic, and many others.

mpps v18

Highlights:

Software version: V18.12.3.8
Firmware version: 1.08.21
MPPS V18 firmware mainboard PCB with NXP chip
Warranty: one year
Support System: Win7 32bit 64bit​
MPPS V18 can work with Godiag GT100 OBDII BreakOut Box together
MPPS V18 support multi-languages:
MPPS V18 support multi-languages

MPPS V18 Software Download:


Click here to download MPPS V18 Software
Click here to download MPPS V18 ECU Pinouts

Notice:

1.
Please install the driver well then open the software, or the software can't be opened. Please make sure you use the driver from our CD, NOT use the driver for other MPPS versions.

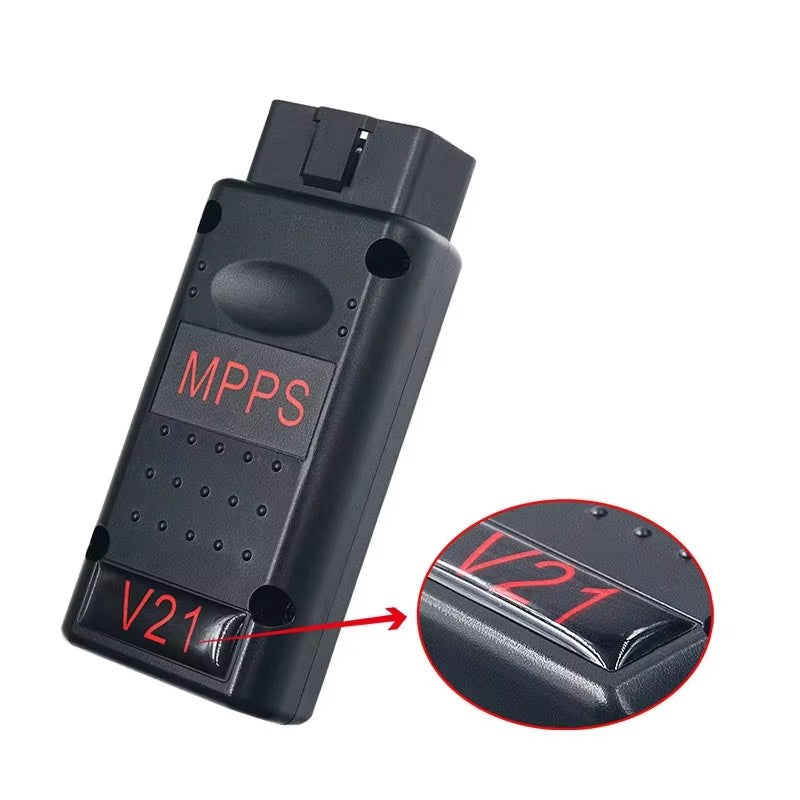

2. Can not use v21 software and other software on this interface, otherwise, the device will be blocked

MPPS V18 Clone Features:

1. Auto detects ECU and processor type. No need to select from the list, everything is automatic.
2. Read/Write of all memories Eeprom, Irom, From (where possible), Patch function for OBD Flashing of TPROT ECU's (supports only for VAG at the moment), TPROT / DS check feature, for testing if TPROT is active without opening ECU.
3. Supports For up to TP12
4. Supports For Siemens (current only for ECU's without password protection),
5. Support for unlocking of Simos PCR and For Simos 8. Checksum Correction supported for MEDC17.

mpps v18 features

MPPS V18 Car List:

Read / Write of Micro, Flash, and EEprom without using a BDM programmer!
Fiat 6F3 – Full Read / Write Micro, Flash, and EEprom over K-line and CAN.
Fiat 6JF – Full Read / Write Micro and EEprom over K-line.
Fiat 8DF – Full Read / Write Micro and EEprom over K-line.
Fiat 8F2 – Full Read / Write Micro and EEprom over K-line and CAN.
Fiat 8F3 – Full Read / Write Micro and EEprom over K-line and CAN.
Fiat 8GM – Full Read / Write Micro and EEprom over CAN.
Fiat 8GS – Full Read / Write Micro and EEprom over CAN.
Fiat 5SF3 – Full Read / Write Flash and EEprom over CAN.
Fiat 5SF3 – Full Read / Write EEprom over K-Line.
Fiat 5SF8 – Full Read / Write Flash and EEprom over K-line and CAN.
Fiat 5SF9 – Full Read / Write Flash and EEprom over CAN.
Fiat ME7.9.10 – Full Read / Write Micro over CAN.
Fiat ME7.6.3 – Full Read / Write Micro over CAN.
Opel 6O2 – Full Read / Write Micro, Flash, and EEprom over K-line and CAN.
Opel 6O3 – Full Read / Write Micro, Flash, and EEprom over K-line and CAN.
Opel 6JO – Full Read / Write Micro and EEprom over K-line.
mpps v18 coverage list
mpps v18 car list

This module adds boot mode support for controllers with the tricore processor. Features:
Auto-detects ECU and processor type. No need to select from the list, everything is automatic!
Read/Write of all memories Eeprom, Irom, From (where possible)
Patch function for OBD Flashing of TPROT ECU’s (supports only VAG at the moment)
TPROT / DS check feature, for testing if TPROT is active without opening ECU.
Supports Bosch up to TP12
Supports Siemens (current only for ECU’s without password protection),
Support for unlocking of VAG Simos PCR and Simos 8.
Checksum Correction supported for Bosch MEDC17.

The MPPS is a powerful programming tool. It offers general reading/writing operations and checksum support, however, it also includes some additional features:
Excellent recovery functions. In some cases, MPPS can recover ECU’s which others tools can not even make communications with. On certain controllers, it even works when no program is present (a blank memory).
Selectable full/partial reading and writing when the ECU allows this function.
Selectable reading/writing speed.
Writing “changes only” function for faster programming (when supported by the ECU).
Auto-detection of K-Line/CAN, and option to bypass and force preferred means of communication.
Temporary bypass of immobilizer to allow flashing on the bench on ME7 systems.
Boot mode support for ECU with C167 and ST10 processors.
EEprom read/write functions for some ECU’s are included.
VAG MEDC17 TPROT level checking without opening the ECU.

MPPS V18 Review/Feedback from customers:

1.
for those who have the message "there has been an application exception error" when trying to open the program, here is how I solve it:
    Copy the software in c:\mpps
    creates shortcuts on the desktop for apps, multiboot, tricore boot.
    run only from shortcuts

2. MPPS V18 China clone:
    Tested on boot Volvo edc17cp22. ok.
    marelli 6o2 multi k-line ok.

MPPS V18.12.3.8 Software Display:





MPPS V18 Main Board Display:
mpps v21 pcb

MPPS V18 Diagram:
MPPS V18 Diagram

MPPS V18 Software Install Manual:


Insert CD and CD Drive(E:) MPPS V18
Copy folder "MPPS V18" to local disk C:
Open folder MPPS V18 on C: and send MPPS application to desktop
Close the system message of drive software installation( not successful)
Open computer management to update driver software of ATM Flash
Browse drive software on computer: computers: MPPS V18Device driver
Install device driver ATM Device Package
Installing
Successfully updated driver software

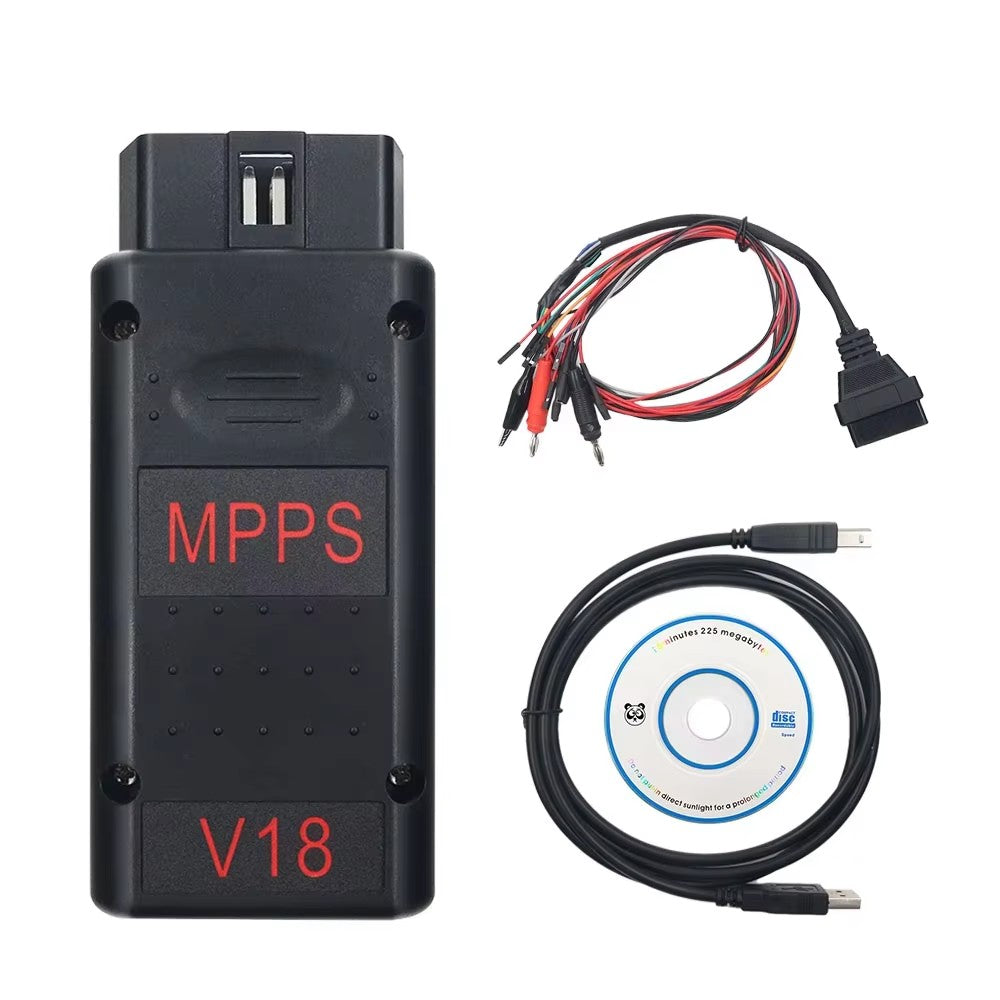

Package includes:
1pc x MPPS V18
1pc x Breakout Tricore cable
1pc x CD Software

MPPS V18 Review:

Q: What is the meaning of ”TRICORE + MULTIBOOT” for MPPS v18?
A: That means a way to disassemble the ECU, weld the boot chip point, and use the ecu adapter definition to read ECU data.
MPPS V18 supports Tricore, MultiBoot, OBD.

Q: What is the meaning of ”breakout” among MPPS v18 Breakout Tricore Cable?
A: It is the connector adapter.

Q: Can Mpps v18 support C167 and ST10?
A: Yes, Boot mode support for ECU with C167 and ST10 processors.

Q: MPPS V18 can auto detect K-Line?
A: Yes, it supports auto-detection of K-Line/CAN.

Q: What about MEDC17 TPROT level checking through mpps?
A: VAG MEDC17 TPROT level checking without opening the ECU.

Q: Any option to bypass?
A: MPPS V18 has the option to bypass and force preferred means of communication; the temporary bypass of immobilizer on ME7 system.

Q: V18 for EEPROM r/w?
A: Yes, EEprom read/write functions for some ECU.

Q: Can Mpps v18 support immo off without welding the boot chip?
A: MPPS v18 doesn’t support immo off. And Mpps v18 connects to the vehicle with an obd2 port, no need for welding.

Q: Can Mpps v18 read PSG16?
A: Check MPPS V18_Carlist

Q: Can MPPS v18 be connected to the internet?
A: You’d better not.

Q: Kess v2 vs MPPS v16
A: Kess v2 is better, with more features and possibilities. but mpps v16 is working very stable for a kes do PCR 2.1
