BMOTOR V410 Automobile OBD2/EOBD Scanner Support 9 Protocols With Multi-language V410 OBD2 Code Reader

Notice:

​

1. Do not use abrasive cleaners to clean this product.

2. Do not let this product be heated or close to the source of the fire. 3. Do not expose this product to direct sunlight for a long time.

4. Do not try to disassemble this product to make any modifications, because it does not contain any maintenance components.

5. Do not use this product in the room.

6. If you do not plan to use this product for a long time, please store it in a dry environment to avoid extreme temperature and dust.

​

Description:

This is an automobile BUS information scanner，which supports nine standard protocols of OBD II/EOBD.

Plug and play, can quickly read the car's fault information and vehicle parameters, is a more comprehensive function of the fault diagnosis instrument.

Please read the product manual carefully before using this product.

​

Languages:

English, German, Italian, Dutch, French, Spanish, Chinese, Russian

​

Usage:

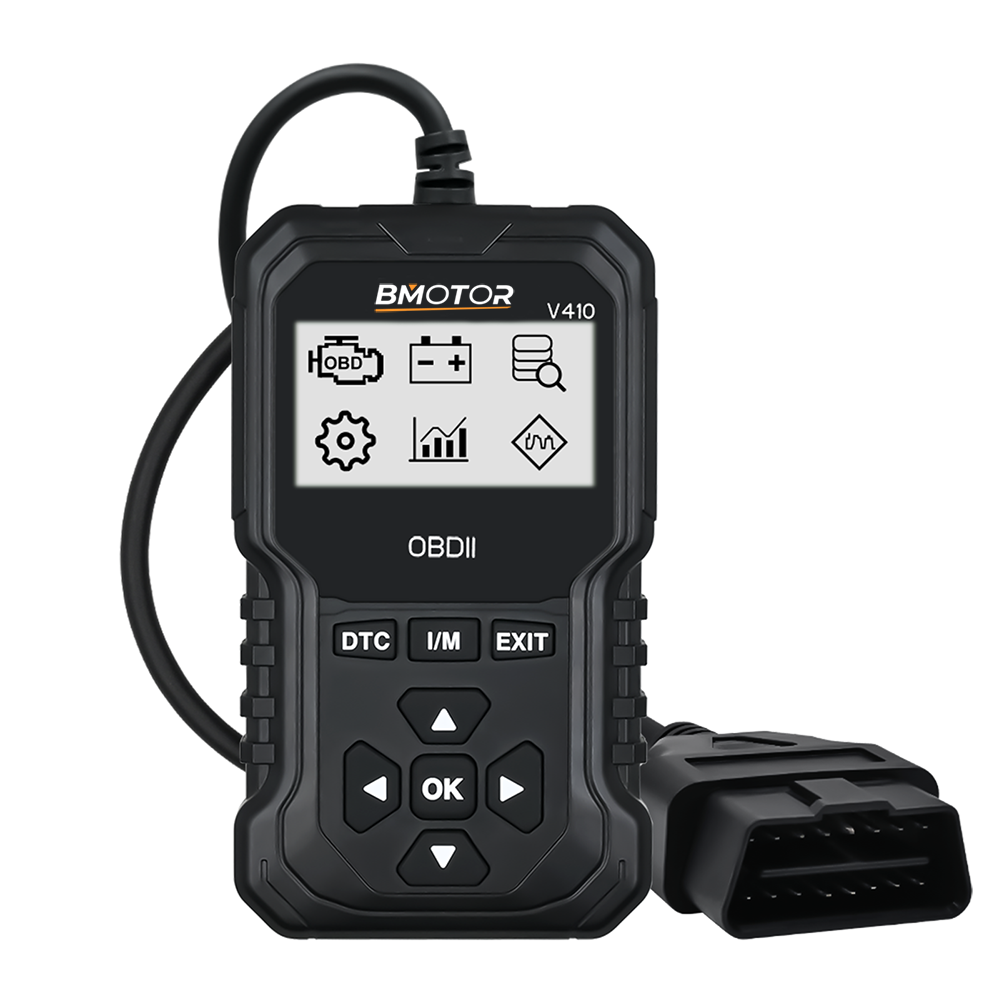

1 —Product connecting line, used to connect vehicle OBD interface

2 —12864 LCD module

3 —Read Diagnostic Trouble Code quickly

4 —Read I/M reading state quickly

5 —Exit/Back

6 —Up

7 —Left

8 —Right

9 —OK

10—Down

​

Support Protocols:

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Function:

1.Car inspection menu

2.Voltage test

3.Fault code query

4.Product settings

5.Read data stream

6.I/M reading

Package list:

1pc* V410 Code Reader

1pc* User Manual

1pc* Box
