Autel MaxiSys MS906BT Wireless Diagnostic Devices

2 sold in last 8 hours!
12.0 kg
10000 In stock
Autel MaxiSys MS906BT Wireless Diagnostic Devices  The MaxiSys MS906BT is the latest addition to the MaxiSys line of business of advanced wireless Bluetooth All Systems diagnostic devices. The device relies on the automaton package featured with the most effective doable coverage of OE-level medical specialty and EU cryptography capability. Utilizing...
customers are viewing this product!

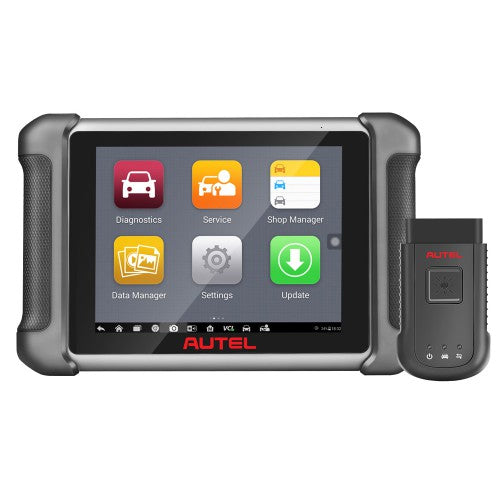

Autel MaxiSys MS906BT Wireless Diagnostic Devices

The MaxiSys MS906BT is the latest addition to the MaxiSys line of business of advanced wireless Bluetooth All Systems diagnostic devices. The device relies on the automaton package featured with the most effective doable coverage of OE-level medical specialty and EU cryptography capability. Utilizing the powerful Exynos 5260 6-core processor (1.3 gigacycle quad-core ARM Cortex-A7 + one.7 gigacycle dual-core ARM Cortex-A15), Associate in Nursing 8” electrical phenomenon HD bit screen, and long-distance wireless Bluetooth communication, the MaxiSys MS906BT Wireless Diagnostic with efficiency provides comprehensive vehicle medical specialty and analysis.

Autel MaxiSys MS906BT

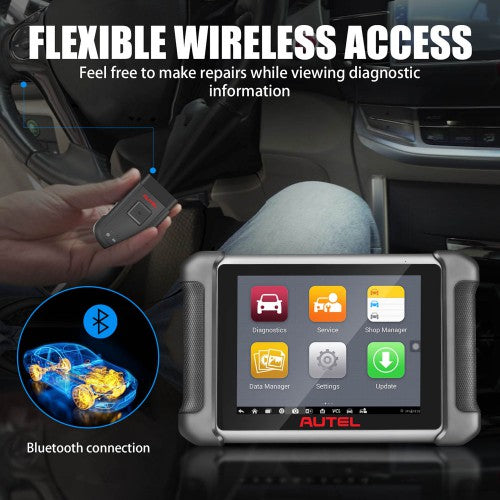

This Autel MaxiSys MS906BT, as an expert scan tool and upgraded version of Autel MS906, will access wirelessly via Bluetooth reference to ALL accessible vehicle modules and not be restricted to PCM, ECM, EPS, PDM, BCM, TPM, SCCM, RADIO, etc. The entire capability for codes will browse and clear codes on all systems and subsystems and be ready to show live inflammatory disease information of multiple sensors in graph & text. MaxiSys MS906BT options advanced EU cryptography capability, bi-directional control(perform active tests or operate tests), will access all accessible automobile modules and perform OE-Level identification and most helpful service/special functions like Key Fob Programming, Oil Reset, Reset emergency brake pads when replacement, SAS standardization, DPF Regeneration, etc.

Autel MaxiSys MS906BT Wireless Diagnostic Devices


  • Convenient data management system.
  • Smart AutoVIN technology for identifying vehicles easily.
  • Instant remote control tech support anytime, anywhere.
  • Built-in 8-megapixel rear camera with autofocus and flashlight.
  • Automatic system and software updates with real-time push message notifications via the internet


  • Operating System: Android 4.4.2, KitKat
  • Memory: 2 GB RAM & 32 GB ROM
  • Display: 8.0" LED capacitive touch screen with 1024x768P resolution
  • Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight

Autel ms906bt


Autel MaxiSys MS906BT automotive diagnostic scanner is a cost-effective alternative for Autel MS908 as they have basically the same functions.
2. Update online one year for free. After one year, if you need the update, you can pay for AUTEL MaxiSys MS906BT Update Service(570EUR/year)
3. MS906BT can be connected to inspection camera MV105MV108 and turned into a video inspection scope. Also, MS906BT can work with Autel MV408P oscilloscope and become a powerful diagnostic tool.
4. With the intuitive interface and Auto VIN technology, it's a super easy-to-use diagnostic and service tool for technicians and home mechanics.
5. BI-Directional Control/ Active Test: MaxiSys MS906BT comes with bi-directional control for specific car systems, allow you to determine the integrity of the system or parts by reading the engine ECU data or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch, between two operating states.
6. Unparalleled Vehicle Coverage: Support 80+ US, Asian and European makes and models
7. Features advanced ECU coding capability
8. Faster Than Ever Before
: MaxiSys MS906BT/TS provides amazingly fast boot-up time and running speed with its powerful Exynos 5260 6-core processor and 32GB solid-state hard drive.
9. No IP Limit
Ship from EU no tax

Tips on using Autel MS906BT:

1. Language Supported: English Only, if you need a multi-language version, you can choose autel mk906bt
2. Wifi is only for Updates. Can Not Use Wifi Connection to Do Diagnose. Bluetooth is available for connectivity between the display tablet, and the VCI device allows greater mobility and ease at work.
3. Some vehicles may not store VINs in the modules. In this case, you need to perform VIN writing first or input the VIN manually or navigate your vehicle through the menu to proceed to diagnostics or special functions.
4. Loose contact between MaxiVCI and the vehicle may cause a lost signal while performing diagnostics. Please re-connect the Autel MaxiVCI when the signal is lost.
5. Please charge the product first if the product doesn't power up at once.
6. MS906BT can NOT program TPMS sensors.

Autel ms906bt

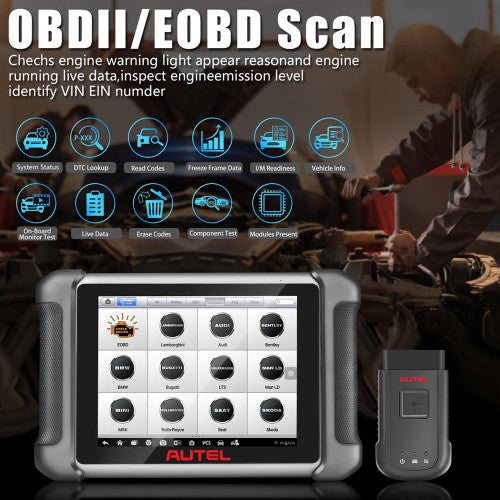

Read & Clear Codes on All Available Modules

autel ms906bt diagnosis function

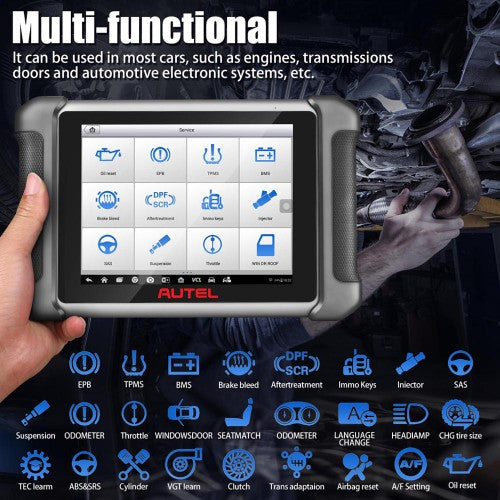

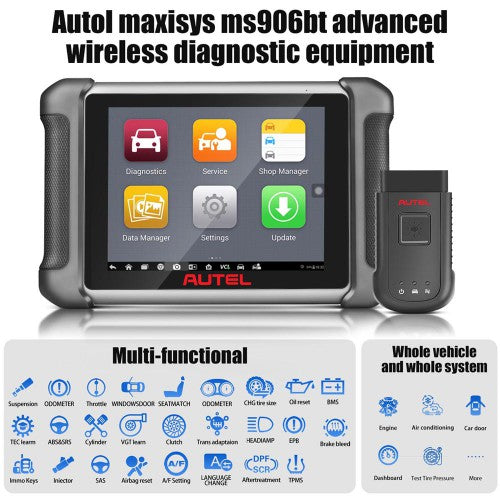

2. Autel MaxiSys MS906BT Scan Tool Comes with 22 Service and Functions

Most Commonly Used Services and Functions

Oil Reset: Reset service mileage and service intervals for the Engine Oil Life system.
SAS: Perform calibration for the Steering Angle Sensor and automatically cleared the fault memory.
DPF Regeneration: Clear the blockage through continuous burning of the particulate matter captured in the DPF filter.
ABS/SRS: Perform various bi-directional tests to check the operating conditions of both the Anti-lock Braking System and the Supplemental Restraint System, such as Automated Bleeding, Pump Motor Test, and checking Module information, etc.
EPB: Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, set brakes after disc or pad replacement, etc.
IMMO Service: Disable lost vehicle keys and programmed the replacement key fob.
Note: Service or Special functions are NOT universally compatible with all vehicles. Please check compatibility before purchasing.

autel ms906bt special function

3. Bi-Directional Control & Active Test
Bi-directional Control performs various bi-directional tests to check the operating conditions of ABS and SRS and applies to functions such as Component Test and Active Test, Actuator Test.
Active Test is used to access vehicle-specific subsystem and component tests. During an active test, the tester outputs the command to the ECU to drive the actuators. This test determines the integrity of the system or parts by reading the engine ECU data or by monitoring the operation of the actuators, such as switching a solenoid, relay, or switch between two operating states.
Note: Available tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu. To check compatibility with your vehicle, please refer to the Autel website or consult us directly.

Autel MS906BT diagnostic system features the latest VIN-based Auto VIN Scan function to identify CAN vehicles in just one touch, which allows the technician to detect vehicles quickly, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system.

autel ms906bt obd2 function

4. Advanced ECU Coding Capability

Autel MS906BT automotive diagnostic tool with advanced ECU Coding function, which is one of the features not available in the MS906. ECU Coding allows you to establish a data link to the electronic control system of the test vehicle via the VCI device for vehicle diagnosis, service, or coding. You can operate functional tests, retrieve vehicle diagnostic information such as trouble codes, event codes and live data, and perform ECU coding for various vehicle control systems, such as engine, transmission, ABS, and more.
Advanced specialists usually use coding functions. Coding is conditionally divided into two types:

The first is computer coding during replacement, commissioning, and the car is used to install a new computer. The computer is informed of the vehicle's VIN, the configuration, and other information necessary for correct operation when performing the procedure.

The second is the coding of the computer for tuning the body electronics to the user, usually the BCM. The procedure will allow you to offer the customer individual customization of the car, locking the doors, setting alarms, the function "lead to home," setting the salon and outdoor lighting, etc.

autel ms609b ecu coding

5.Special Tests

The actuators are not always visually visible or complex to assess their performance with organoleptic (eyes, ears) methods through normal activation. That's why the test components are implemented in MaxiSys scanners. Test components will allow you to include special test modes in the computer. The electronic system creates conditions for verification and evaluates its results with further recommendations to the expert.

6.Adaptation and Initialization

After replacement, an adaptation or initialization procedure is required to repair or clean some sensors and many actuators of electronic systems. When performing this procedure, the basic values of their work, the reference point, are established. In a modern car, many such elements require similar procedures, which makes these functions vital for the service. In MaxiSys systems, these procedures are presented at the dealer level.

7.  Digital and Graphical Display of Parameters

Using MaxiSys, you can display the parameters of the system conveniently. Some parameters are more likely to be monitored in analog form, for example, pressure. Some parameters are more conveniently viewed in graphical form by observing their time changes (potentiometers, oxygen sensors). Some parameters must be displayed in the graph to observe changes relative to each other (for example, air mass flow and engine speed). Only in MaxiSys, all these ways of displaying are available for all parameters and all components, regardless of the makes and models of the car.
autel ms906bt
8. Autel MS906BT Add-on Functions

* Maxisys MS906BT is a diagnostic scanner with various interfaces that can access more Add-on like Inspection Camera, HDMI Projector, Phone, PC, USB Memory Stock, Headset, Oscilloscope, Extend SD Card, etc.

* MS906BT connects to an MV108 / MV105 inspection camera and turns into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It can record digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure safely and quickly.

* MS906BT works with Autel MP408 oscilloscope, providing you an insight into the inner workings of a vehicle's electronic circuits. Featuring the user-friendly UI design combined with the unrivaled hardware specs, it can measure and test virtually all the electrical and electronic components and circuits in any modern vehicle.
autel ms906bt add-on function

Autel MaxiSys MS906BT Support Models:

Support for all markets, including Russia(For Lada, For GAZ, UAZ), Coverage for more than 80 US, Asian and European makes and models

autel ms906bt car list

Autel MaxiSys MS906BT Comparison:

Difference between Maxisys MS906, MS906BT, and MS906TS

MS906 has the same appearance as MS906BT, but MS906BT has several advantages over MS906:

MS906BT is installed Bluetooth, allowing diagnosis wirelessly.
MS906BT’s diagnostic coverage includes premium vehicle brands such as Maserati and Bentley, which would be required for high-end service shops.
MS906BT supports oscilloscope and digital inspection camera add-ons, which are not supported by MS906.
Finally, MS906BT has the capability to perform coding for covered vehicles.
MS906TS is added TPMS function based on MS906BT.
autel ms906 vs autel ms906bt vs autel ms906ts

 Autel MaxiSys MS906BT Specifications:

Operating System: Android 4.4.2, KitKat
Proces: Samsung Exynos T5260 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory: 2 GB RAM & 32 GB ROM
Display: 8.0" LED capacitive touch screen with 1024x768P resolution
Connectivity: Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32 GB)
Camera (rear): Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage: 12 V (9-35 V)
Power Consumption: 5 W
Operating Temp: -10 to 55°C (14 to 131°F)
Storage Temp: -20 to 70°C (-4 to 158°F)
Dimensions: (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight: NW: 1.05 kg (2.3lb.)
autel ms906bt new hardware

autel ms906bt battery
autel ms906bt led light

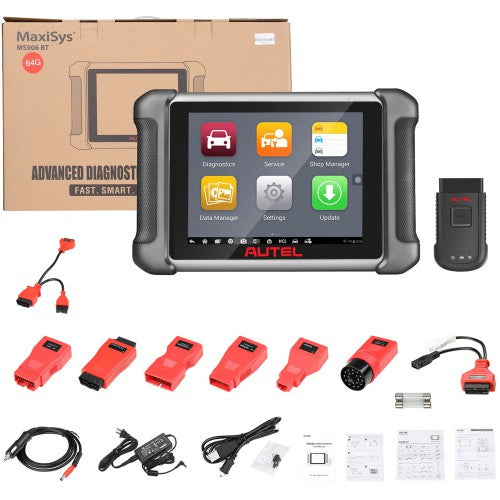

MaxiSys MS906BT Package List:

User Manual
Carrying Case
Adaptor for Chrysler-16 (for NA only)
Light Fuse
MaxiVCI V100
Quick reference guide
Adaptor for GM/Daewoo-12
Adaptor for PSA-2
Adaptor for Fiat-3
Adaptor for BMW-20
Adaptor for Benz-38
Adaptor for Kia-20
Adaptor for Mitsubishi/Hyundai-12+16
Adaptor for Nissan-14
Adaptor for Honda-3
Cigarette Lighter
Compact Disc (CD)
AC/DC External Power Adapter
Adaptor for Benz-14 (for EU only)
Adaptor for VW/AUDI-2+2
Soft Cloth
Packing List
Mini USB Cable

autel ms906bt package

Autel MaxiSys MS906BT FAQ:

Q: If I have j2534 max flash pro, can I use autel ms906bt  to program ECU / ECM?
A: No, this item can not program ECU/ECM. If you need this function, you can choose Autel MaxiSys Elite or Autel MaxiSys MS908s Pro

Q: Does this machine do abs, srs, and airbags?
A: Yes, scans and communicates with all modules available

Q: Does it come with free upgrades. And how much are the upgrades after the free years expire
A: It comes with One Year Free Update Online. You need to buy Update Service (SP262-BS) to continue to update over the free update, only 650USD/Year.

Q: Does this have Bluetooth, and does it come with a warranty?
A: It is with a Bluetooth adapter, update online one year for free, with one year warranty

Q: Does this toolset and reset electronic parking brakes?
A: Autel MS906BT should be able to perform EPB function

Q: Is it possible to code diesel injectors with this tool?
A: Yes

Q: Does it rewrite the vehicle identification number after replacing the ECU?
Y: It does rewrite the VIN. That feature is enabled on the device.

Q: Can it program the navigation system?
N: It doesn’t possess that feature.

Autel MaxiSys MS906BT Customer Reviews:

Review 1:

Autel MaxiSys MS906BT works great. The battery life and specs are incredible. It saves me tons of diagnostic time. I tried the 905mini but, the battery life was just not where I needed it to be. This is the best scan tool I've ever worked with.

Review 2:
This is an exceptional tool when compared to price and function. I've used several big-name scanners from Snapon and Mac as well as some such as Witch. Autel MaxiSys MS906BT has numerous vehicle coverage and functions. You're able to perform many bidirectional tests as well as reset maintenance options. Also, it reads the majority of PIDS on the vehicle. That in itself is worth the price. Overall I'm very pleased and impressed with this product so far. Autel has done an exceptional job.

Review 3:
Compared to the competitive scan tool I was previously using, Autel 906BT delivers diagnosis scan three times faster. My favorite functions of the tool are the touch screen and wireless VCI, which lead this tool very easy to use. On top of that, I like that the scan tool has a function called Vehicle History holding vehicle information, so the customer has the option of going back to something they were previously working on, and also I like the graphing functions and Data Logger making technician see what the vehicle was doing when the vehicle code. Conclusion: a low-cost scan tool with a high-end capability and coverage.

Review 4:
We buy the MS906 bt Mini to uses in Ferrari only. It works good and help me to uses customers car and reset symbols. In truth, it also works on other cars like BMW, VW, Audi, Mercedes, and all the others, but for us, Ferrari is the main goal. Very happy.
