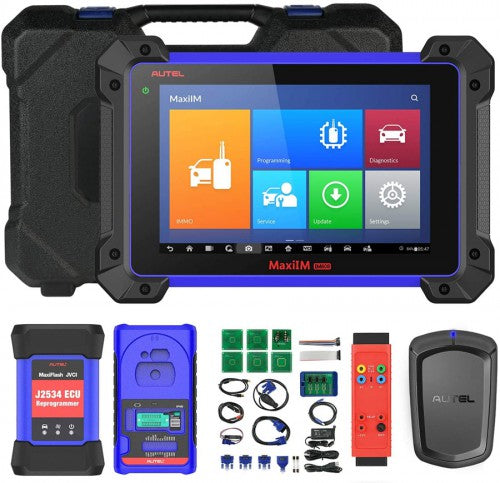

Autel MaxiIM IM608 Pro Key Programming Tool
The Maxime IM608 is that the most advanced and distinctive all-in-one key programming and diagnostic tool that mixes advanced key programming, all systems medical specialty, and advanced services in one Android-based ten.1-inch touchscreen pill. it's equipped with associate XP400 Key coder software engineer applied scientist technologist computer user and MaxiFlash European programmer to produce complete coverage of IMMO and programming functions. at the side of the power to quickly diagnose all modules of the bulk of the makes and models on the market, IM608 provides you with all special functions. it's the new key programming and diagnostic tool that you just ever needed.
This XP400 Professional is a complicated all-in-one key software engineer, that performs necessary EEPROM knowledge functions for European vehicles. Supports read/write the knowledge of quite three,000 kinds. IM608 professionals will notice advanced European commitment to writing like MK908 / MK908P. Bi-directional management (Active Test) to request data or command associate mechanism to perform specific tests, like turning the fuel pump on and off, turning the air-con clutch on and off, performing arts associate phase transition emissions leak check, fast troubleshooting of your automotive, not just by reading codes.
- Extraordinarily powerful Cortex A7+A15 six-core processor.
- 10.1-inch LED capacitive touch screen with 1920x1200 resolution.
- Internal reliable 64GB Onboard Memory for better performance.
- Built-in 8-megapixel rear camera with autofocus and flashlight.
- Product weight: 18.51 pounds
- Product dimensions: 11.81 x 8.66 x 1.97 inches
- Product model number: IM608 PRO
• One Year free online update. Update subscription: $1000 per year
• One Year warranty.
• In-depth diagnosis of all vehicle modules.
• Programming of modules and components of the vehicle.
• Pass-Through System
• Powerful Combination of Advanced Key Programming/ All System Diagnostics/ Advanced Maintenance Services
• Smart Mode for Guided and Automated Key Learning, Expert Mode for Advanced Key Learning
• Powerful OE Level Diagnostic Scan Tool and IMMO Features for Higher USA, Asian, European Vehicle Coverage
• Professional Key Programming Equipped with XP400 and Maxiflash ECU Programmer for Complete IMMO Coverage
• Diagnosis menu: Default Language is English, Can Be Changed Language to German, Swidish, Italian, French, Dutch, Polish, Spanish, Korean, Japanese and Russian (Provide your device S/N to change language free, Spanish need to pay langauge fee); Immobilizer menu: English only
Autel MaxiIM IM608 Functions:
1. Read & Clear Fault Codes | Short description & code provided (can clear faults & warning lights)
2. Service Functions | Oil light / EPB / BMS / SAS / DAF etc
3. Access Live Data | Data from the ECU/Modulesnsors displayed in real-time (Oxygen sensor-rich/lean etc)
4. Actuation/Component Testing | Actuate (switch on/off) to diagnose functionality (relays, fans, locks etc)
5. Coding Functions | Allows you to change vehicle parts that need to be "coded" (Injectors, ABS, starters etc)
6. Flashing/ Reprogramming | Advanced updating/coding of ECU's online through a J2534 pass-through flashing device
7. Advanced Key Programming | IMMO functions, Transponder read/write/identify, MCU/EEPROM chip read/write
Autel G-BOX2 Programming Tool fit for Benz All Key Lost Work with MaxiIM IM608
Autel G-Box Main Features:
1.fit For Mercedes Benz All Keys Lost, Faster Password Calculation
2. Used with IM608
3. Used for Faster fit for Mercedes ECU data and EIS password calculation
4. fit For Mercedes DAS3 can EIS / EZS all keys lost
5. Reduce time reading W204 ECU data & W207 EIS by over 85%
6. No need to remove and reinsert the key for W221 & W164 after 2009 models
7.fit For BMW DME / DDE ISN reading and writing in boot mode
8. G-Box is compatible with both the Autel MaxiIM IM 608 and IM508 with XP400, also compatible with Auro IM600 and Auro IM100 with XP400
Autel G-BOX2 Description:
The G-BOX2 realizes fast mode on vehicle and bench when all keys for Mercedes-Benz vehicles using the DAS3 EIS/EZS are lost. The use of the G-BOX2 reduces the time needed and eliminates the process of insertion and removal.
The G-BOX2 can read and access most engines manufactured by Bosch including EDS/ MEx17 series engines used in for BMW and for Volks Wagen Vehicles. This capability supports the ability to perform adoptions when all keys are lost and engine is replaced.
The G-BOX2 is compatible with the Autel's advanced diagnostic tablets support IMMO and key programming functions.
Why Buy Autel G-BOX --- Small is Smart!
1. fit for MERCEDES-BENZ ALL KEYS LOST, FASTER PASSWORD CALCULATION.
8X TIMES FASTER PASSWORD CALCULATION FOR EIS W172, W204, W207;
4X TIMES FASTER PASSWORD CALCULATION FOR EIS W209, W211, ETC.
2. fit for MERCEDES-BENZALL KEYS LOST, NO MORE REPEATED INSERTIONS AND REMOVALS OF IR SIMULATOR
W164/-2008, W251/-2008, W164/2009-, W169, W251/2009, W216, W221(partial), W202(K)/W208(K)/W210(K), W203(K)/W463(K)
3. fit for MERCEDES-BENZ ALL KEYS LOST, CAN BE PROGRAMMED ON THE VEHICLE WITHOUT REMOVING THE EIS
EXCEPT FOR EIS W164 / -2008, W251 / -2008, W221, W202 (K) / W208(K) /W210(K), AND W203 (K) / W463 (K), ALL OTHER EISS CAN BE PROGRAMMED ON THE VEHICLE DIRECTLY.
4. fit for MERCEDES-BENZ ALL KEYS LOST, BMW DME / DDE ISN READING AND WRITING IN BOOT MODE
How to Use Autel G-BOX2 Work?
1. OBDII Operation when all keys for Mercedes-Benz vehicle are lost
Use OBDII access on for Mercedes=Benz vehicles manufactured after 2009 with W204, W207, W216 and W164 EISs
1. How to do via OBD When All Keys fit for Mercedes-Benz Vehicle Are Lost
This method is suitable for Mercedes-Benz W204, W207, W216 and W164 EISs after the year 2009.
23 CATEGORIES OF BOSCH ENGINE, INCLUDING MEVD/EDC17. 6 CATEGORIES OF SIMENS/CONTINENTAL ENGINE, INCLUDING MSD/MSV ENGINE.
How to do on Bench When All Keys for Mercedes-Benz Vehicle are Lost
This Method is suitable for Mercedes-Benz EISs that are already supported by Autel Diagnostic Tablet
How to Connect Autel G-BOX2 Step by Step:
1. Plug the G-Box to for Mercedes-Benz EIS using the packed DB15 Cable
2. Plug to the DC port of G-Box using a power adapter (DV 12V)
3. Plug the G-Box to the Autel Diagnostic Tablet (MaxiIM IM608, IM508)
Autel APB112 Smart Key Simulate 46/4D Emulator Car Chip Decoding for IM608 IM508
The APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip. Currently, it supports to simulate the 4D type chip. More key chip types will be supported with future upgrades.
AUTEL APB112 Function List:
1. Smart key simulator
2. Compatible with IM608, IM508, and MX808IM
3. Compact but would need to be used with the XP400
4. Cannot be used with the XP200
5. 46, 4D data collection
6. 46 smart key password calculation
7. 46 chip simulation
8. For T0yota 4D (94/ D4, 98) smart key simulation
9.For T0yota H (88/ A8, A9, 39) smart key simulation
10. Collects data from the ignition coil
11. Identify ignition coil troubles
12. Decode vehicle key chip data
13. Simulate vehicle key chip (ex - 4D chip)
14. Must be used with an Autel diagnostic tool
15. For T0yota/ Lexus smart key all key lost
16. Chip decoding (Hyundai 46)
How to Use Autel APB112?
1. Connect the APB112 Smart Key Simulator to Autel Diagnostic Device using the supplied USB cable.
2. After connection, the status indicator lights solid blue,indicating that the APB112 Smart Key Simulator is working properly and then automatically communicates with the Diagnostic Device.
3. The APB112 Smart Key Simulator application is automatically upgraded on Autel Diagnostic Device according to the selected vehicle system function.
4. Place the Smart Key Simulator close to the ignition coil for data collection, which is used for decoding the chip.After decoding, the original car chip data can becopied.
5. The emulator key chip can generate various types ofkey chips with subsequent upgrades according to requirements.
1. Not work alone, but works together with any of the Autel Diagnostic Device i.e MaxiIM IM608, Autel MaxiIM IM508, and MX808IM
2. Compact but would need to be used with the XP400, not with XP200.
3. Do Not disconnect the USB Cable when use
You can choose among the below combination:
2021 Newest IM608 + IMKPA
As one of the accessories of IM608PROKPA
IMKPA is a Key Programming Adapter Kit, compatible with the XP400Pro Key & Chip Programmer. Includes 12 adapters for the XP400Pro that enable Read/Write/Erase for Mercedes Benz ESL_W209 / W906 Data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and. Volkswagen/AUDI/BMW/Benz Key Unlock. Compatible with the IM608 and IM508 with XP400 Pro.
1 full set of Autel IM608 PRO
1 full set of Autel G Box 2 Adapter
1 full set of AUTEL APB112 Smart Key Simulator(simple version)
1 full set of AUTEL IMKPA Programming Accesorries
Review 1: I'm an auto locksmith and my everyday job is to program all kinds of car keys. This IM608 key programming tool just made my job much easier! It does BMW CAS 4/3/2 keys with no issues, programmed keys on 2012 Mercedes Benz E200 (W212), 2004 Mercedes-Benz E320 CDI, 2014 Mercedes GLK 220, 2015 VW Golf All key lost, 2014 Volvo S60 in just the past week
Review 2: Great all-around tool! To do Toyota keys you'll need the APB112 and the G-Box helps with the Mercedes keys... The scan tool wises is equivalent to the MS908S. I haven't gotten into heavy in-depth work with it yet but so far, it's been up to the task.
Review 3: I purchased this Autel IM608 a month ago. I detected several cars in my workshop with this key programmer. It was the first thing I did when I got it to make sure it was working well. Autel IM608 really read the IR signals and the actual transponder data. Yesterday I run a Mercedes IR key programming with this auto scanner on Mercedes r320, 2007. I used the blank keys: 315 and 433 keys. It took me about 10 minutes to get it done. Hopefully, this week I’ll get chances to do more key programming or IMMO for different cars.
Review 4: Did several Benz now and am quite happy, to be honest
- 2001 W203 C class - with IR key adapter since no KEO (lock didn't take the old spare key, original was lost) - went just fine
- 2005 W203 C270 - smart option in the tool, took a bit to calculate password but steps are easier than doing it by the manual or expert selection, still way under an hour and for benz key still good value
- W169 A class lock on the bench with a G-Box2 just to test this new tool and had the info read EIS under 1 minute, pass calculation way under 10 (think even under 5!) minutes, also virgin option seems to have worked fine (not personalized and not activated status)
Review 5: Peugeot 207 - pin ok, coding ok, remote had to be added manually (procedure in IM608)
Hyundai Getz 2007 - pin by vin conversion in Autel, added key fine (handy baby 2 did not decode the key correctly and had no chips on me for the Mini Key VVDI and KD-X2 which decoded fine)
VW Caddy 2007 - added key after making dealer key fine (not even reprogram other key) and added remote fine as well - used smart detection menu
Benz CLS350 2005 - calculated pass and added key with smart system within 10 - 15 minutes
Q: Does the Autel IM608 have the same online programming functions as the MK908P?
A: As long as you have the JVC J2534 and a valid OE manufacturer subscription. But if you asking for the built-in BMW and Mercedes Benz online programming which came free with MK908P the answer is NO, you have to subscribe and use your JVC interface connected with your laptop.
Q: Q: Does the im608 has the same obd2 diagnostic function as mk908, but much powerful than mk908 in professional IMMO keys programming?
A: YES, you are right, IM608 has the same OBD2 functions as MK908. BUT in the IMMO function, IM608 is a professional and most powerful IMMO tool.
The MK908P offers comprehensive OE-level diagnostics, ECU coding and BMW/Benz ECU programming, The IM608 is the most advanced and unique all-in-one key programming and diagnostic tool that combines advanced key programming.
MK908P is specialized in diagnostics (more for automotive technicians). IM608 is specialized in keys (more for locksmiths)
Q: Does im608 do 2014 BMW 6 series cas4/cas4+ key programming?
A: Yes, IM608 can do 2014 BMW 6 Series CAS 4 key programming without issues.
Q: Can it perform 2015 Audi A4 all key lost?
A: Yes, IM608 key programming tool can perform all keys lost on a 2015 Audi A4
Q: The ability to reprogram key fobs for door lock and ignition functions.2006 BMW 325i VIN: WBAVB13516PT26948?
A: Yes, it supports
Q: Does it support online programming for Benz and BMW?
A: No, it do not support this
Q: Do autel im608 pro erase key programing also? how this can be done? for suzuki key and also Toyota used keys to erase?
A: Yes, during the key programming process, the keys will be erased. and you will need to program the keys back to vehicles no matter if it is original keys or new keys. You can refer to those youtube case studies so you can have a better understanding of how it works
Q: Does IM608 can read passwords for all Ford?
A: No password need for Ford
Q: IM608 Can make key fob copies?@Autel IM support?
A: Yes, it can make the key copy for some models, but most are for the key learning functions, connect the device to the vehicle through ODB then learn the key to the vehicles.
