WIFI VXDIAG MULTI Diagnostic Tool for Toyota Honda Land Rover / Jaguar JLR & Volvo 4 IN 1 Scanner

Our VXDIAG is the latest diagnostic software platform.  Diagnostic software can be operated under  WinCE and Windows,  available installation for Laptop or PDA.

Automotive Diagnostic language (VDL) exploitation platform based on XML by self -determination and high-efficiency database management system, these will make it easy to explore the vehicles.

Specifications:

• Hardware version: VXDIAG

• Item Height: 11inch
• Item Length: 12inch
• Food: 8W
• Material Type: Best Quality
• Item Type: Car diagnostic cables and connectors
• Special features: Wireless

Top 5 Reasons to Get VXDIAG Multi Diagnostic Tool:

1. This Version VXDIAG supports Toyota, Honda, LandRover & Jaguar, and Volvo, 4 Software in one Device. (From July 5th, 2017, add Volvo car software on this device, if you bought VX01/VX01-W on our site before, then can get Volvo software for free, if not, need to pay 85USD to get the authorization.)

2. Support both 12V and 24V gasoline and diesel car.

3. Hardware support 4-way CAN BUS and 2-way K - Line/L-Line, support multi-protocol high-speed and concurrent communication

4. With the innovative design of OBD II intelligent bus protocol routing hardware, a diagnostic plug can be intelligent identification test all  models, fully meet the future  demand for all kinds of bus communication

5. With this VXDiag firmware, you can add more original software, only need to buy authorization from us. Already released original software authorization has GM, Ford, Mazda, Toyota, Honda, LandRover, Jaguar, Subaru, Volvo, VW, and Porsche.

Notice:
1. VXDIAG Can Not Support All Keys Lost, Need At Least One Key.
2. VXDIAG Multi Diagnostic Tool Software Update: When original newer software coming out, we can send you a download link or by CD
3. VXDIAG Multi Diagnostic Tool Software Version:
Toyota V12.019
Honda 3.014
LandRover, Jaguar Version V153
VXDIAG Multi Diagnostic Tool supports all original software functions.

Toyota Supported Languages:



Jlr Supported Languages:



PC Requirement:

Processor: Pentium 4 / 1.6GHz+.
Memory: 1G Bytes or more.
Hard disk: 40G or more.
Display: Resolution 1024x768 or higher.
Network interfaces: LAN 10 / 100M or 802.11b / g.
Communication Interface: USB2.0 or USB3.0

VXDIAG Multi Diagnostic Tool Specification:

1. Item State

RAM 32bit180MHz ARM
FLASH 1MByte FALSH

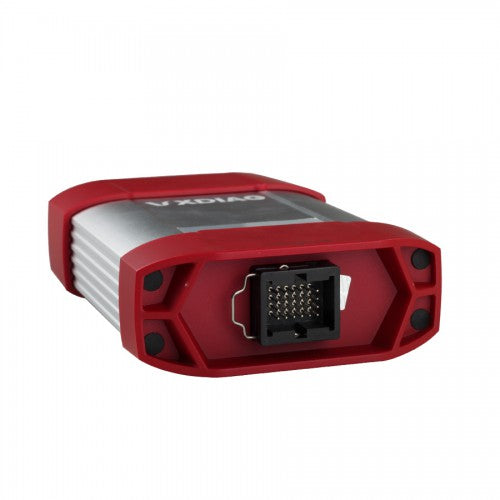

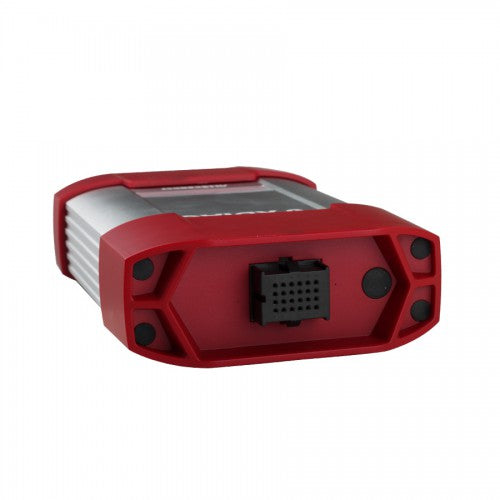

Diagnostic Port 24PIN, self-determination design

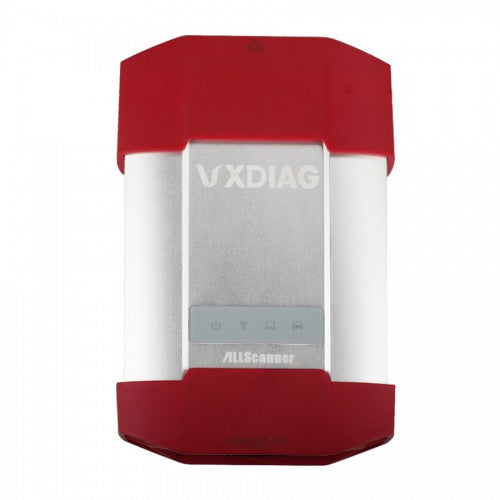

LED 4 LED indicator light, indicate power and status.
Power DC 9V-36V
Consumption 3W
Working Temperature -20°C~70 °C
Storage Temperature -40°C~85 °C
Warranty: One Year

2. Product Feature

1. Adopt 16 digit Dual Cell specialize CPU, Full compliant with all vehicles protocols.
2. Diagnostic software accord with international standard, collocate communication port flexibly, fewer connectors
3. Self-determination design for connectors and cables.
4. Hardware in accord with CE and FCC standards.
5. Support almost all vehicles sockets.

VXDIAG Multi Diagnostic Tool Supported Protocols:

ISO-9141 K-Line
ISO-14230 K-Line
ISO-15765 CAN
SAE-J1850-VPW (GM Class2)
SAE-J1850-PWM (FORD SCP)
ISO-11898-2 DWCAN
ISO-11898-3 DWFTCAN
SAE-J2411 Single Wire CAN (GMLAN)
SAE-J2610 SCI (Chrysler)
SAE-J1567 CCD BUS (Chrysler)
SAE-J2740 GM ALL
SAE-J2809 (HONDA DIAG-H)
CAN125/CAN250/CAN500/CAN1000
SAE-J1939 CAN
SAE-J1708/J1587 On RS485
CAT DATALINK (Catepillar)
ATA DATALINK (Catepillar)

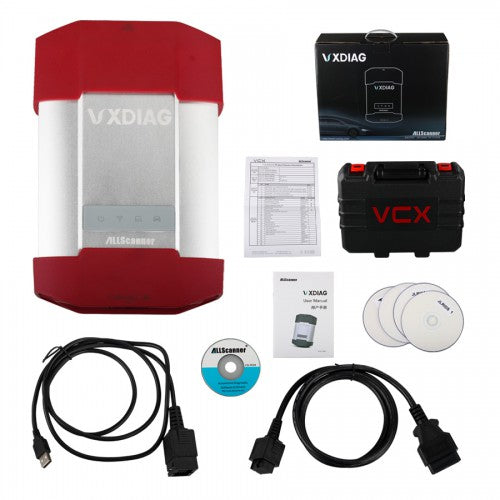

Packing List:

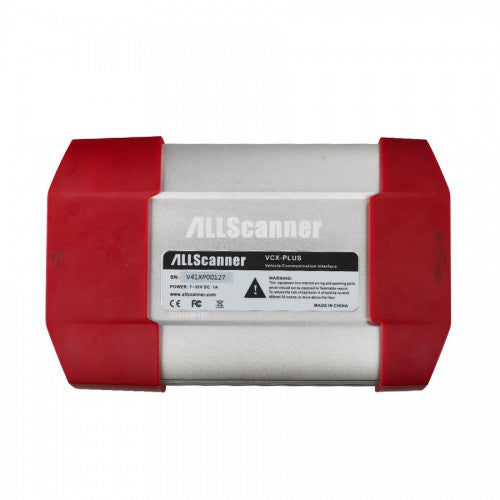

1pc x VXDIAG VCX-PLUS

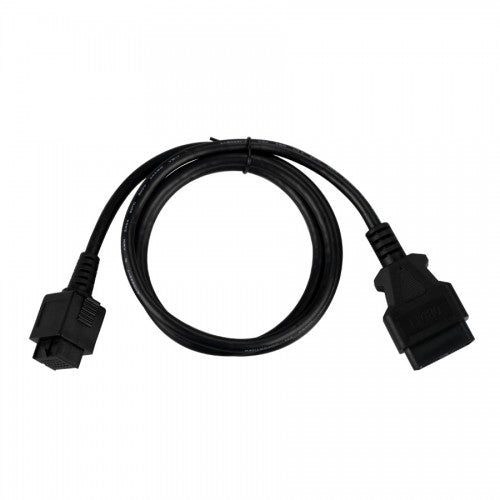

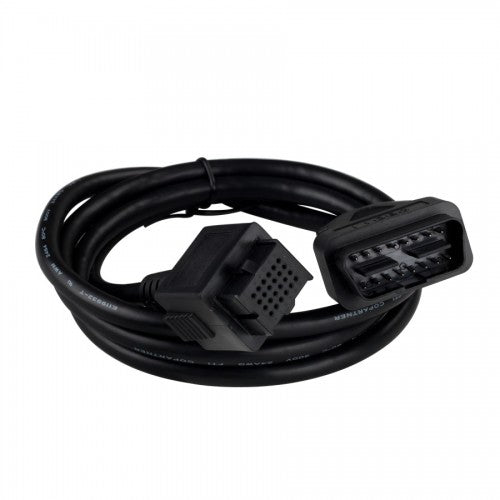

1pc x OBDII Cable

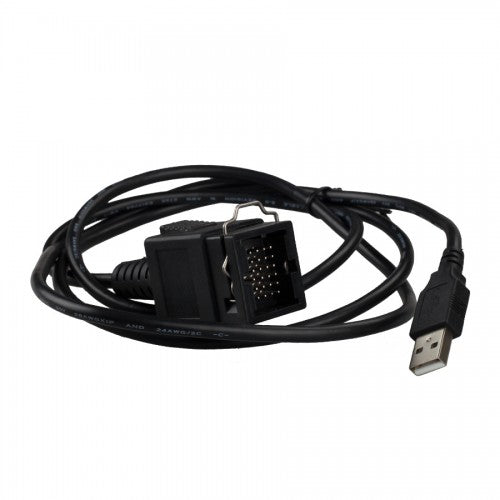

1pc x USB Cable
1pc x CD
