Launch X431 V 8 inch Tablet WiFi Bluetooth Full System Diagnostic Tool Two Years Free Update Online

2 sold in last 8 hours!
XTYSP183-D
5.0 kg
10000 In stock
$1,099.00 $990.00
Launch X431 V 8 Inch Tablet Our LAUNCH X431 V (LAUNCH X431 PRO) is a very portable, drop-tested, and waterproof Android-based scan means tablet with an 8-inch ultra-high resolution IPS touchscreen and an eight-hour battery life. The X431 V Pad computer is made for the Android platform and has a...
$990.00
customers are viewing this product!

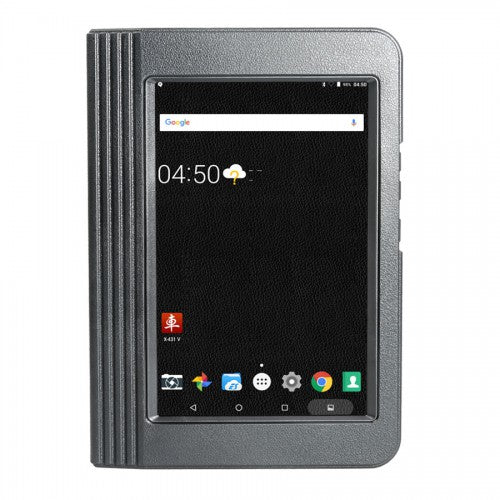

Launch X431 V 8 Inch Tablet

Our LAUNCH X431 V (LAUNCH X431 PRO) is a very portable, drop-tested, and waterproof Android-based scan means tablet with an 8-inch ultra-high resolution IPS touchscreen and an eight-hour battery life. The X431 V Pad computer is made for the Android platform and has a clear and easy-to-use interface.

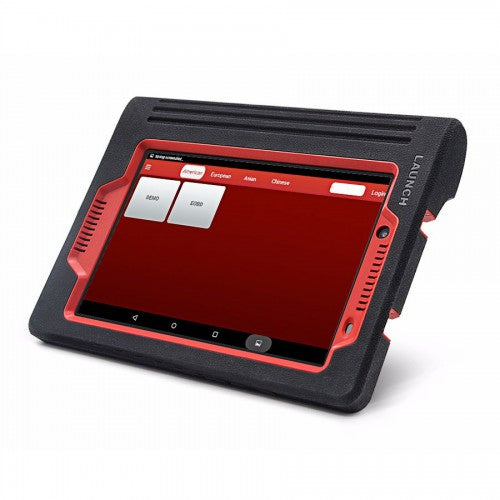

The Launch X431 V 8inch Tablet X431 V Pad computer comes with a special X-431 V security sleeve that keeps it from getting broken. X431 V can check the electronic instrument systems of popular car models from Asia, Europe, the United States, and China. It can do this for up to 93 car brands and 10000 car models.

The Launch X431 V+ is the newest version of the X431 model. It replaces the V, IV, and X431 Diagun III versions. This model has better hardware, more storage space, a faster processor, the latest display technology (a 10.1-inch capacitive touch screen), and a bigger battery that can be used for longer without needing to be charged.

Full range car models and full car custom diagnosis make it a professional automotive diagnostic tool. Language: You can choose from English, German, Japanese, Russian, French, Spanish, Arabic, Korean Traditional Chinese, etc.

Features:

  • This function allows you to perform various bi-directional tests to check the operating conditions of the Anti-lock Braking System (ABS).
  • Launch X431 V 8inch Tablet This function enables you to initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state.

  • The ECU is replaced and the ECU does not yet store throttle working features.
  • The ECU is disconnected from power and the ECU memory is lost.

Specifications:

  • External Testing CertificationCC
  • Item Height: 25inch
  • Item Length: 25inch
  • Material Type: plastic and metal
  • Item Type: Car Diagnostic Cables and Connectors
  • Special Features: Wifi

Launch X431 V 8inch Tablet Wifi/Bluetooth Full System, Diagnostic Tool


What is X431 V 8 inch Tablet Diagnostic Tool?

Launch X431 V is a drop-tested Android™ based scan tool tablet with an 8″ high-resolution IPS touch screen (1280 x 800). It inherits from LAUNCH's advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test results. Through the Bluetooth communication between vehicle diagnostic connector and variant mobile intelligent terminals, it achieves X-431 series full car model and full system vehicle trouble diagnosis, which includes Reading DTCs, Clearing DTCs, Reading Data Stream, Actuation Test, and Special Functions.

Top 8 Reasons to Buy Launch X431 V 8inch:

1. Multi-Languages: English, German, Japanese, Russian, French, Korea, Arabic, Spanish, Italian, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Persian, Romanian, Serbian, Finnish, Swedish, and Czech
2. One-Click Free Update Online for 2 Years, update cost is 399.00USD/Year, after first two years
3. Dealer Code: 755D, no IP or language limitation, directly to use
4. Communicate with vehicle via Wifi and Bluetooth, Bluetooth distance:10M (without obstacle)
5. Full system diagnosis and fast running speed, Reasonable PDA design, easy to carry
6. Work on to 69 car brands about 220 car models from European, USA, Asian, Australian, Indian, Malaysian cars, such as Benz, BMW, Ford, and other mainstream models, also support IRKIA, PERODUA, Proton, TATA, Maruti, Lancia, etc.
7. Support 11 Special Functions Full System Diagnosis: Brake reset, Oil reset, SAS Rest, BAT reset, Bleeding, Elec. throttle Relearn, TPMS reset, DPF reset., Gear learning, IMMO, etc, also support special functions such as BMW idle study, BMW injection rate adjustment, BMW battery replacement, Nissan matching key.

Launch X431 V 8inch Functions:

Diagnosis:

Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American, and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read data stream, Special functions, etc.

Specific Functions: Brake reset, Oil reset, SAS reset, ABS reset, DPF reset, ETS reset, BMS reset, Injector Reset, TPMS reset, Gear Reset, IMMO Reset, etc.
Take "1# injector" as an example. To detect whether 1# injector works normally or not, tap "1# injector", the system will automatically carry out the function. After complete, a prompt dialog box will pop up on the screen.

Launch X431 V 8 inch Special Functions

Reset Service Functions:

In addition to amazing & powerful diagnostic functions, X-431 V also features various service functions. The most commonly performed service functions contain:

1) Oil Reset Service
This function can be performed in the following cases:
a). If the service lamp is on, you must provide service for the car. After service, you need to reset the driving mileage or driving time so that the service lamp turns off and the system enables the new service cycle.
b). After changing engine oil or electric appliances that monitor oil life, you need to reset the service lamp.'

2) Steering Angle Calibration
a). To reset the steering angle, first find the relative zero point position for the car to drive in a straight line. Taking this position as a reference, the ECU can calculate the accurate angle for left and right steering.
b). After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering the car body, you must reset the steering angle.

3) Electronic Parking Brake Reset
a). If the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the onboard computer to replace the brake pad. After replacing the brake pad, you must reset the brake pad. Otherwise, the car alarms.
b). Reset must be performed in the following cases:
The brake pad and brake pad wear sensor are replaced.
The brake pad indicator lamp is on.
The brake pad sensor circuit is short, which is recovered.
The servo motor is replaced.

4) ABS Bleeding
This function allows you to perform various bi-directional tests to check the operating conditions of the Anti-lock Braking System (ABS).
a). When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.
b). If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

5) Electronic Throttle Position Reset / Learn
This function enables you to initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state. Doing so can accurately regulate throttle (or idle engine) operations to control the amount of air intake. Throttle matching must be performed in the  following cases:
a) The ECU is replaced and the ECU does not yet store throttle working features.
b) The ECU is disconnected from power and the ECU memory is lost.
c) The throttle assembly is replaced.
d) The intake pipe is replaced or removed, which affects idle speed control by ECU and throttle body.
e) The throttle is cleaned. Although the idle throttle potentiometer features remain unchanged, with the same throttle opening, the air inflow has changed and idle speed control features have changed.

6)  Battery Register/Battery Maintenance
This function enables you to perform a resetting operation on the monitoring unit of the vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.
Battery matching must be performed in the following cases:
a) Main battery is replaced. Battery matching must be performed to clear original low battery information and prevent the related control module from detecting false information. If the related control module detects false information, it will invalidate some electric auxiliary functions, such as automatic start & stop function, sunroof without one-key trigger function, power window without automatic function.
b) Battery monitoring sensor. Battery matching is performed to re-match the control module and motoring sensor to detect battery power usage more accurately, which can avoid an error message displaying on the instrument panel.

7)  Diesel Particulate Filter (DPF) Regeneration
DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high-temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
DPF regeneration may be performed in the following cases:
a) The exhaust back pressure sensor is replaced.
b) The PM trap is removed or replaced.
c) The fuel additive nozzle is removed or replaced.
d) The catalytic oxidizer is removed or replaced.
e) The DPF regeneration MIL is on and maintenance is performed.
f) The DPF regeneration control module is rep
g) Tire Pressure Monitor System Reset

Launch X431 V 8inch Support Vehicle List:
Supports most car models from Europe, the USA, Asia, Australia, Indian, and Malaysia.
Launch V 8inch Support Car List

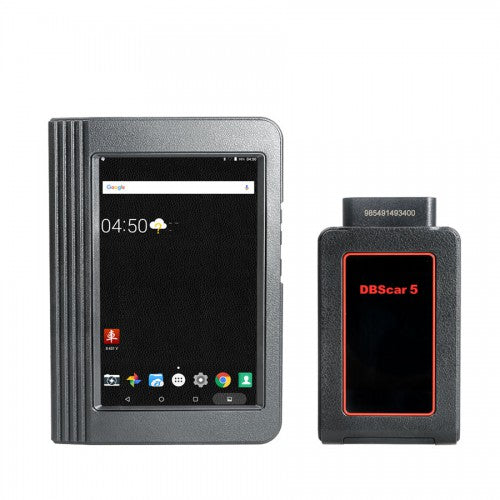

How to connect with Launch X431 V?


X431 V communicates via Bluetooth, it is very easy to use.  X431 V Pad computer is specially designed for the Android platform with a clear and user-friendly interface. X431 V Pad computer is equipped with an exclusive X-431 V protection sleeve to prevent it from being damaged;

The owner can use golo connector to connect to his smartphone, then he can do an all system fault diagnosis of the vehicle at any time, then form a diagnosis report, and transfer the report to maintenance technicians and related personnel through the account management interface, then he get the remote consultation and repair advice.

Launch X431 V Connection

Launch X431 V 8 inch vs. X431 V Pro vs. Oversea Version vs. X431 Pro Mini

Picture launch-x431-v-pro launch-x431-v-8inch-tablet-diagnostic-tool-120 launch-x431-pro overseas version launch-x431-pro-mini-bluetooth
Item X431 V PRO X431 V 8 inch X431 V 8 inch overseas version Launch X431 Pro Mini
Item No. SP183 SP183-D SP167-B SP291
Automotive Diagnostics
upgrade
Remote Diagnosis
Recording and playback
special function
Waveform Display
VIN Identification
feedback
Diagnostic Software 100, click for software list 100, click for software list 108, click for software list 108, click for software list
OS Android Android 4.2 Android 4.2 Android 5.1
SIZE 7-inch Tablet,1024X600 8” 1280 x 800 IPS display with 189 PPI 8-inch Tablet 6.9 inch 1280 x 720
CPU Dual-core 1GHz Quad-core 1GHz quad-core 1.3 GHz Quad core 1.3 GHz
RAM 512MB 1 GB 1GB 2GB
Capacity (internal / SD card) 2GB 16GB (expandable by up to 32 GB) 16GB 16GB
Battery 3000mh, rechargeable polymer lithium battery 4200mh rechargeable polymer lithium battery 4290 mAh 3.7V/3000mh rechargeable polymer lithium battery
Pixels : 2 mega rear and 0.3 mega front Front-facing 2 MP camera and rear-facing 5 MP camera with 1080p HD video recording Front 2 mp / Back 5mp Front-facing 2MP camera + rear-facing 5MP camera
Communication WIFI/Bluetooth Wi-Fi: WLAN 802.11b/g/n Bluetooth: Bluetooth 4.0 WiFi/Bluetooth Wi-Fi: WLAN 802.11b/g/n, Bluetooth: Bluetooth 4.1
Update one-click update online for 2 years free one-click update online for 2 years free one-click update online for 2 years free one-click update online for 2 years free

New Design X431 V 8''Inch vs Old X431 V 8''Inch:

Launch V 8inch
Comparison between X431 V 7" and X431 V 8":


1. X431 V 8" have a bigger screen size, better view.
2. X431 V 8" has a bigger Bluetooth adapter with an LED indicator.
3. X431 V 8" has a higher hardware configuration.

Launch x431 V 8 inch Tablet Applications:
Operating system Android 4.2
CPU: Quad-core 1GHz
Display 8” 1280 x 800 IPS display with 189 PPI
RAM 1 GB
Capacity (internal / SD card) 16GB (expandable by up to 32 GB)
Battery 4200mh rechargeable polymer lithium battery
Camera Front-facing 2 MP camera and rear-facing 5 MP
camera with 1080p HD video recording
Communication Wi-Fi: WLAN 802.11b/g/n
Bluetooth: Bluetooth 4.0

Working temperature:        0¡æ ~ 45¡æ
Storage temperature:         -10¡æ ~ 50¡æ
Working voltage:                9 ~18V
Average working current:   About 35mA
Standby current:                 About 25mA
Storage humidity:              <80%
Working humidity:             <60%


Launch X431 V8 FAQ:

Q: What's X431 V Dealer Code?
A: 755D

Q: How many car brands can it support?
A: It can support 72 kinds of car brands, such as Asian, European and American, etc.

Q: Which website can I update my machine to?
A: dbscar.com

Q: How to reset X-431 V?
A:  Resetting may cause data loss. Before doing so, please make sure important data and information have been backed up. Do the following to reset X-431 V:
1) Tap "Settings" --> "Back & Reset";
2) Tap "Factory data reset";
3) Tap "Reset tablet";
4) Tap "Clear all data" to start resetting until the tool automatically reboots.

Launch X431 Customers Reviews:
Review1:
Great functionality for the price with a ton of vehicle coverage. I've primarily used it on US-brand cars and have been very impressed with it. So far all the PIDs seem to be accurate and the special functions and bidirectional control all seem to work. Item arrived fast and with everything nicely packaged and scan tool itself was at a 88% charge which is more than enough to get it set up and ready to use. The battery seems to have a long life depending on on-screen brightness and the charger supplied seems to charge slowly which in my opinion is great to preserve the overall life span of the battery.

Review2:
I have owned many Launch tools and love them. I lost the connector and contacted Kingbolen to get a replacement. Betty was very helpful and I got the new connector. Had issues with memory and she advised me to reset and install the X431 app again. It worked great after that.I am about to buy the Diagun IV again. The one I own now is almost 3 years old. I like this V but it is larger and has no slot for the connector.

Review3:
Tough to beat for the money. Fully featured, 2-year software updates. First-rate! Support is excellent, including real-time with Facebook messenger. I am very pleased with the quality of everything, including build of a Lenovo Tab 4 8 Android tablet.

Review4:
Excellent product, this has bidirectional controls to cover every module I've come across so far. The memory for recording diagnostic runs seems excellent on the Lenovo tab4 this is loaded on. Customer service was excellent when I had a problem recovering a lost password.

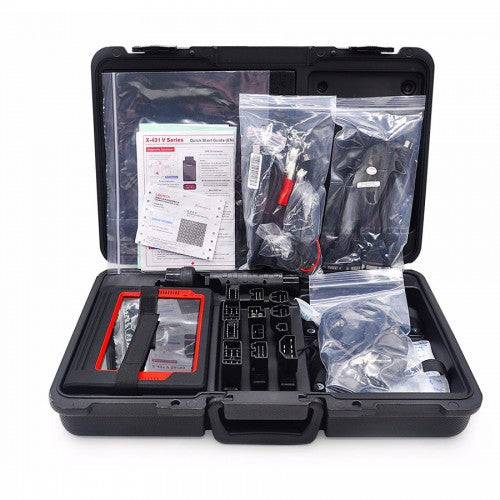

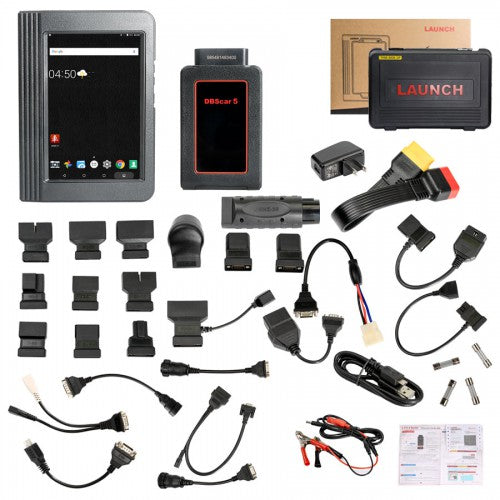

Launch X431 V 8inch Tablet - Package List:


While opening X-431 V package for the first time, please carefully check the following components:
1pc x X-431 v handset
1pc x Password envelope
1pc x X-431 v protection sleeve
1pc x DBScar diagnostic connector (For connecting OBD II vehicles)
1pc x OBD II extension cable
1pc x Cigarette lighter cable
1pc x Power adaptor
1pc x USB data cable

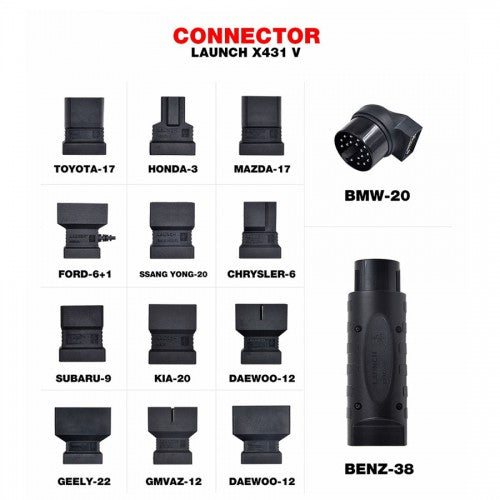

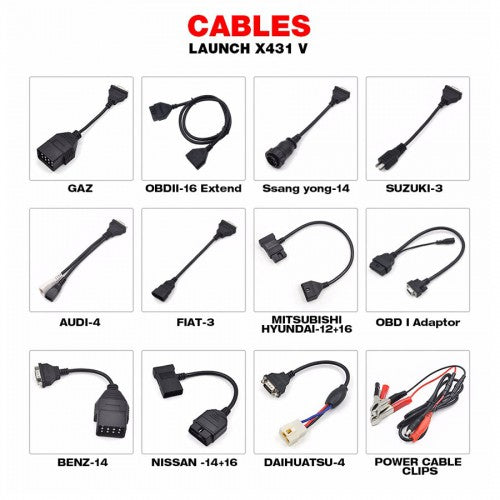

1pc x Non-16pin connector  (For connecting non-OBD II vehicle)
